FUEL DELIVERY PUMP AND FUEL FILTER

SERVICE MANUAL NUMBER 22

90-860074--1 FEBRUARY 2002 Page 5B-3

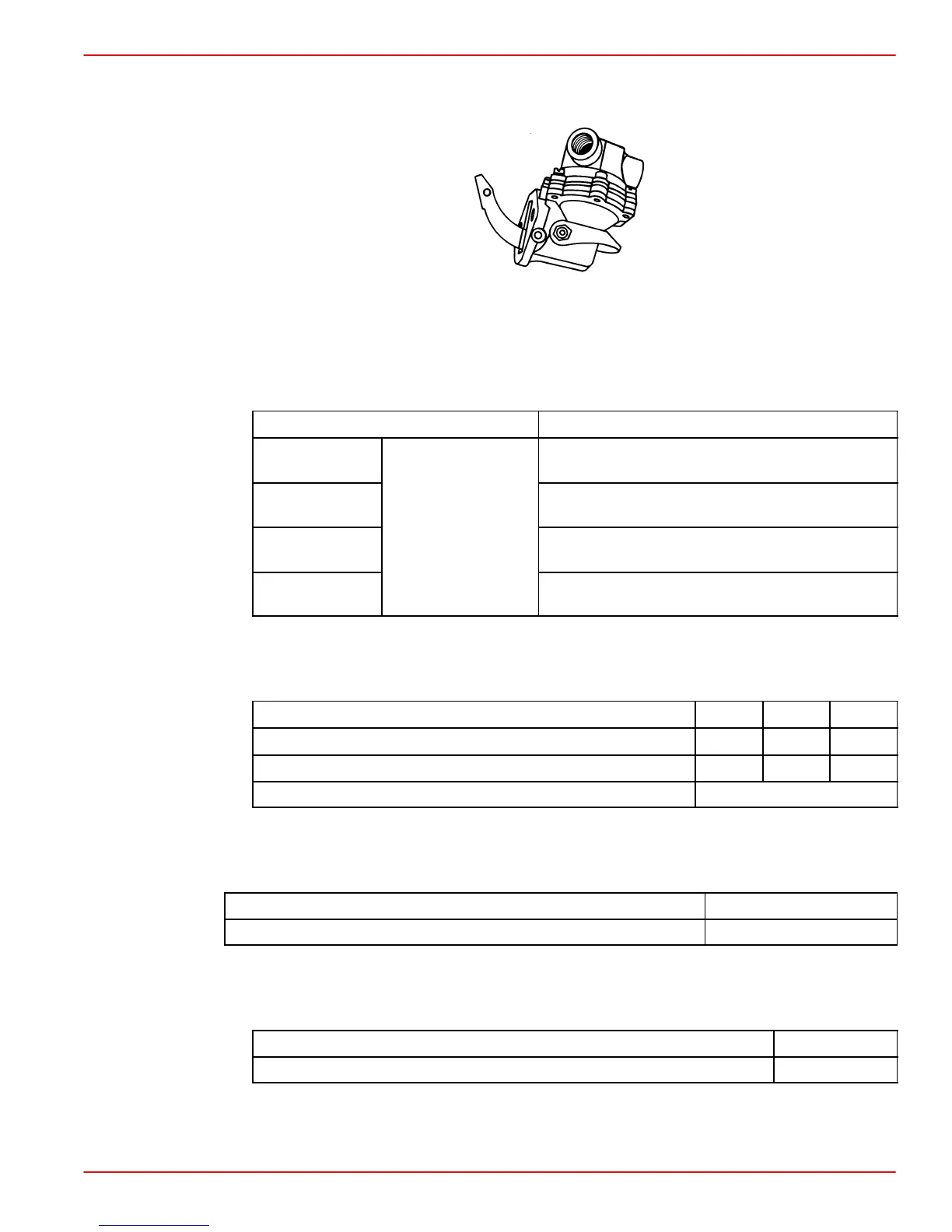

Identification

70163

D2.8L D-Tronic and D4.2L D-Tronic Fuel Delivery Pump

Specifications

Description D2.8L D-Tronic And D4.2L D-Tronic

Fuel Flow per

Minute

80 Liters (85 U. S. Qts.) at 2500 rpm

Delivery

Pressure

Measured at 2500

14 - 34 kPa (2-5 psi)

Supply

Restriction

Measured at 2500

rpm; no load.

20.261 kPa (6 in. Hg)

Return

Pressure

13.78 kPa (2 psi)

Torque

Description Nm lb-in. lb-ft

Filter Header To Bracket Nut 32 24

Pump To Block Nut 24 18

Fuel Filter Hand tighten only

Tools

DESCRIPTION PART NUMBER

Fuel Pressure Gauge [0-103.35 kPa (0-15 psi)] Obtain Locally

Lubricants / Sealants / Adhesives

Description Part Number

SAE 30W Engine Oil Obtain Locally
