MAINTENANCE
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 1B-49
Transmission
Checking Fluid Level
IMPORTANT: To accurately check fluid level, the engine must be operated at 1500 rpm
for 2 minutes immediately prior to checking level.
1. Start engine and run at 1500 rpm for 2 minutes to fill all circuits, lines, and cooler.
2. For Hurth Transmissions -
IMPORTANT: Do NOT screw dipstick in; press it firmly in and remove to obtain an
accurate reading.
a. Stop the engine and quickly remove the dipstick to check level.
b. If fluid is below top (full) line, add Dexron III Automatic Transmission Fluid through
dipstick hole. Do NOT overfill.
c. If fluid level is below minimum fluid level line, check transmission case, cooler, and
hoses for leaks.

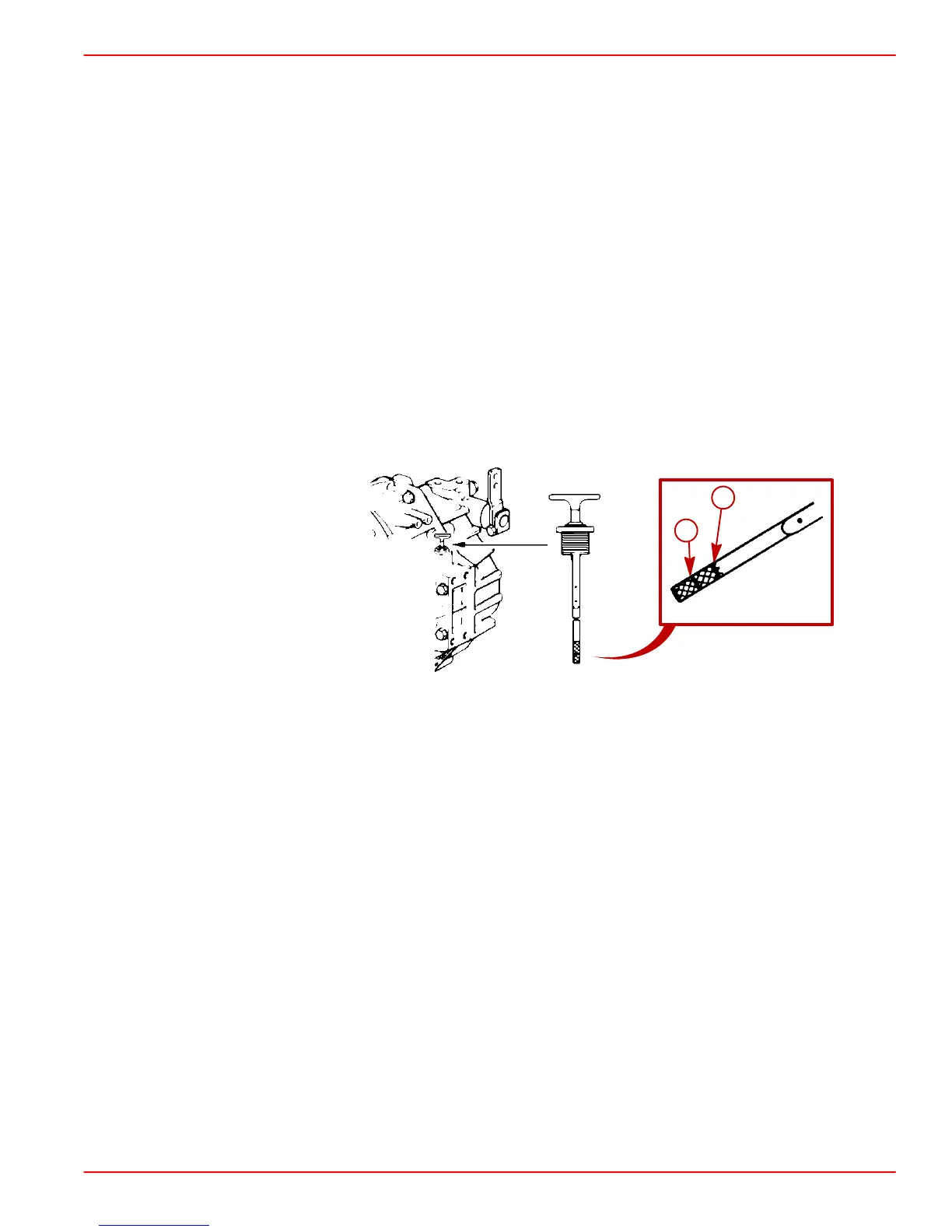

71383
a
b
a-Full Fluid Level Line
b-Minimum Fluid Level Line
d. Install dipstick securely.
IMPORTANT: Use automatic transmission fluid (ATF) Dexron III.
