GLOW PLUG SYSTEM SERVICE MANUAL NUMBER 22
Page 4C-8 90-860074--1 FEBRUARY 2002
Installation
1. Install glow plug. Torque to 23 Nm (17 lb-ft).
2. Ensure contact areas are clean.
CAUTION
Avoid shorting electrical circuits. Some voltage supply wire ring terminal ends are
large and could contact the cylinder head which is grounded (–). Be certain ring
terminal is isolated to the glow plug terminal.
3. Attach connecting wire to glow plug terminal. Ensure that the voltage supply wire is
present where previously removed. Supply wire must not contact the cylinder head
when installed.

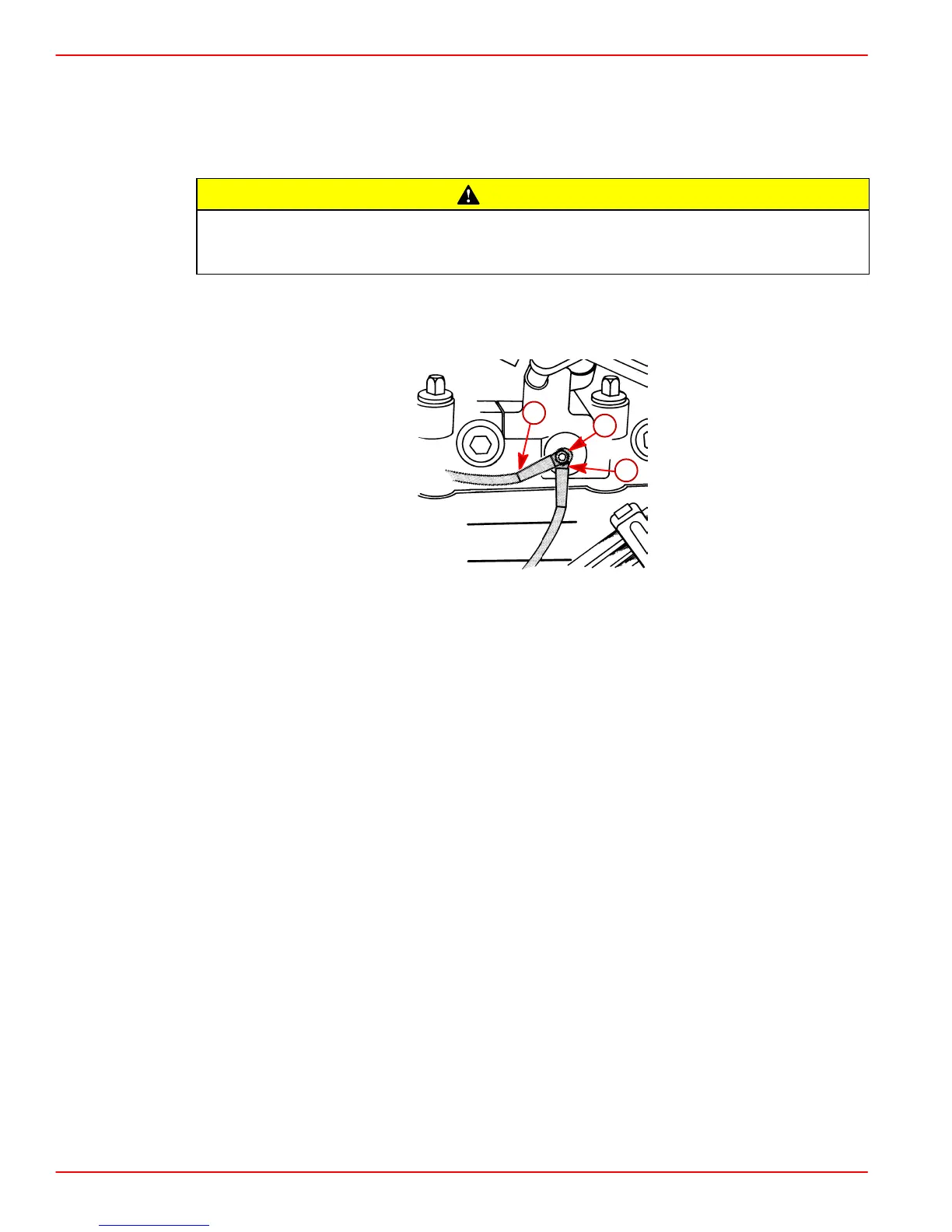

77940
c
b
a
Typical
a-Contact Areas
b-Voltage Supply Wire Ring Terminal End
c-Connecting Wire
4. Coat all connections with liquid neoprene.
5. Connect battery cables to battery.
