FUEL INJECTORS

SERVICE MANUAL NUMBER 22

90-860074--1 FEBRUARY 2002 Page 5C-3

Identification

The Bosch injector for Direct Injected D-Tronic engines can be identified as shown.

75339

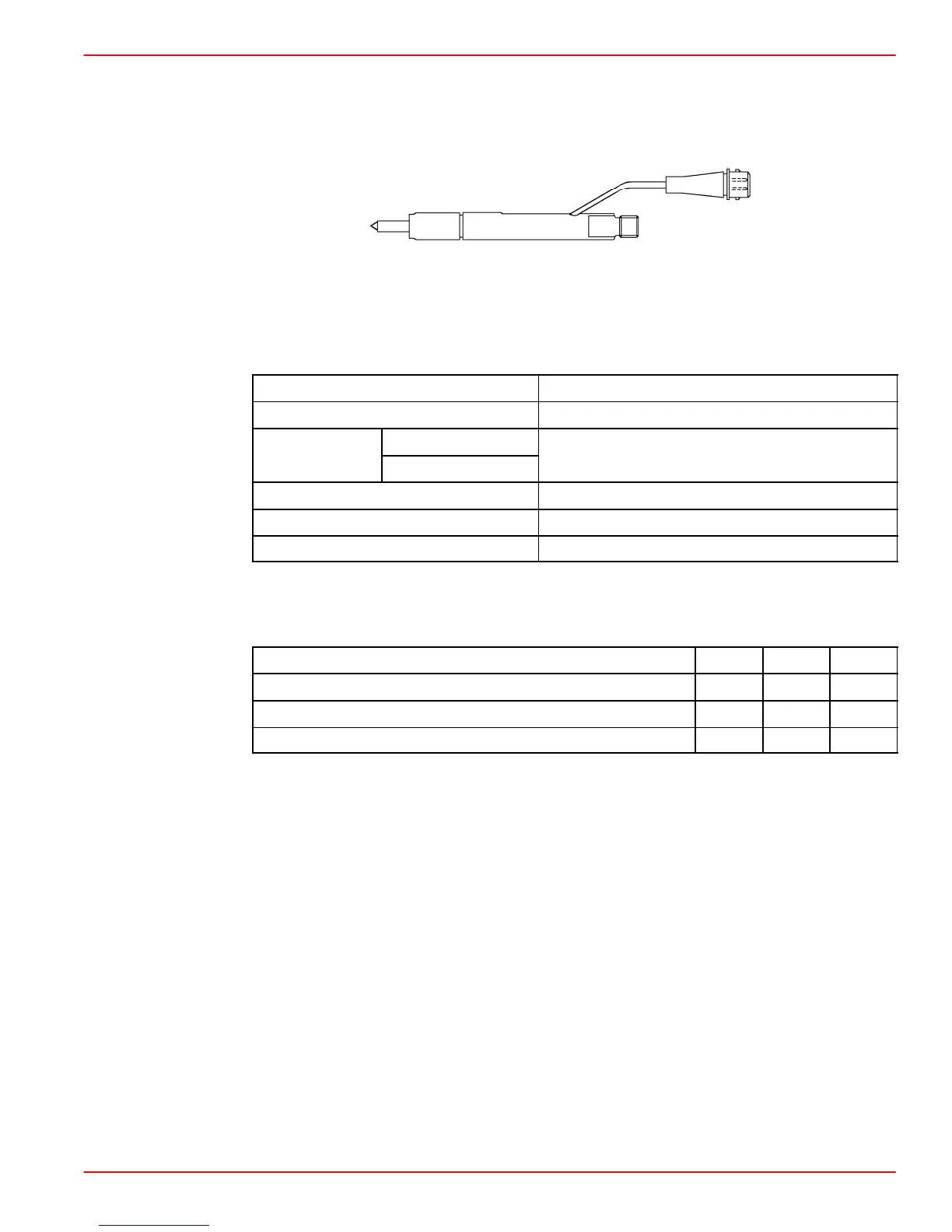

Instrumented Injector Shown (Non-Instrumented Injector Similar)

Specifications

Description Specification

Manufacturer Robert Bosch Corporation

D2.8L D-Tronic

Injector Type

D4.2L D-Tronic

Multi-Orifice, Hole-Type Nozzle

Opening Pressure (New Injector) 27,000 kPa (3915 psi)

Spray Angle 157 Degrees

Spray Hole Diameter 0.25 mm (.001 in.)

Torque

Description Nm lb-in. lb-ft

Injector Clamp Nut 24 18

Injection Pipe Sleeve Nut 17 156

Injection Pipe Clamp Screws 12.7 112

Fuel System15
