ENGINE MECHANICAL
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 3A-123
TIMING GEAR
NOTE: Replace timing gear only if worn or damaged.

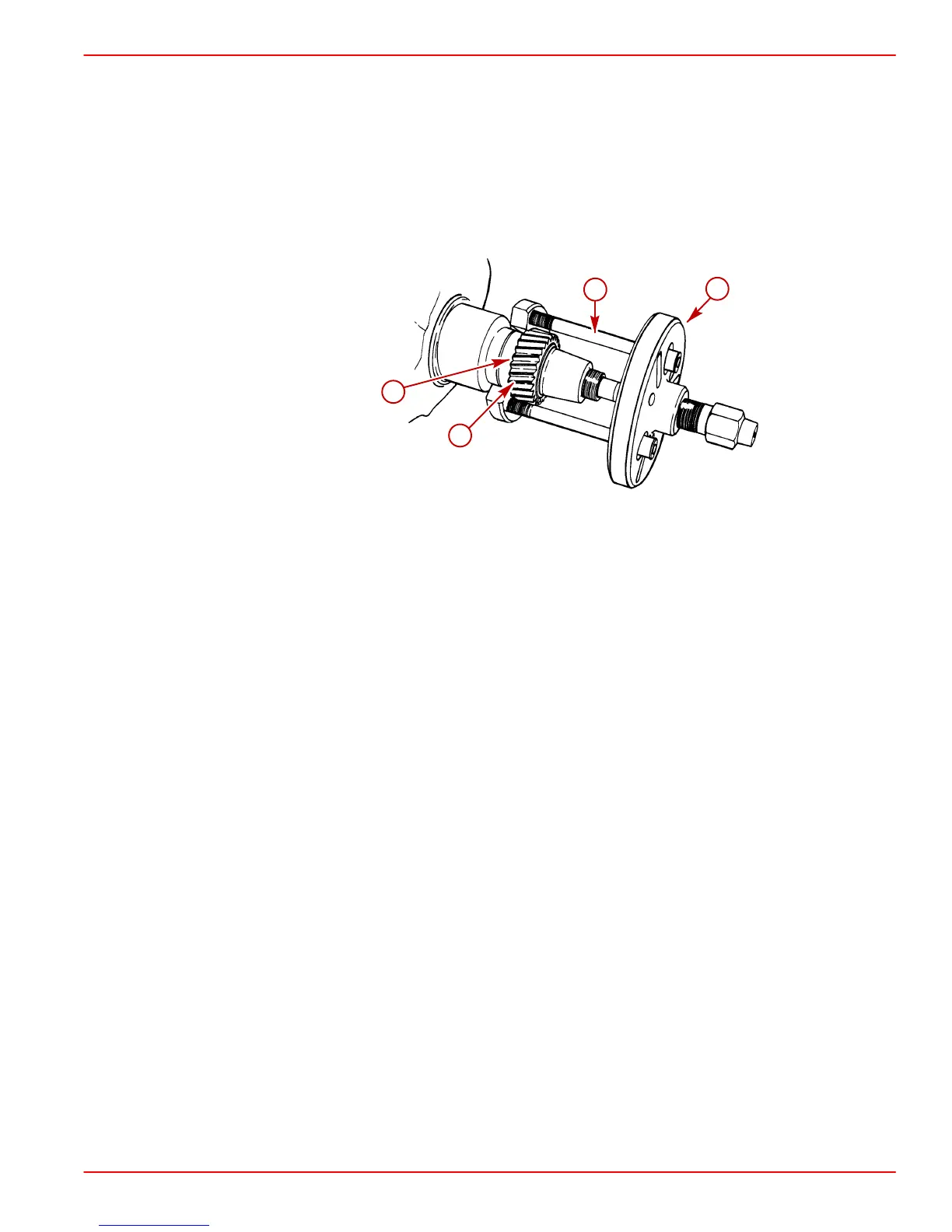

1. Install Crankshaft Gear Puller 91-801333503 and Crankshaft Pulley Puller
91-801763590 onto timing gear, as shown.
2. Remove the timing gear.
3. Remove the spacer if equipped.
70309
a
b
c
d
a-Gear Puller
b-Pulley Puller
c-Timing Gear
d-Spacer, If Equipped (Not Shown)
Cleaning
1. Immerse crankshaft in a solvent bath and clean.
2. Put on safety glasses.
3. Clear oil passages with compressed air.
4. Dry with compressed air.
