Mercury D4.2L D-Tronic Service Manual

FUEL INJECTORS SERVICE MANUAL NUMBER 22
Page 5C-8 90-860074--1 FEBRUARY 2002

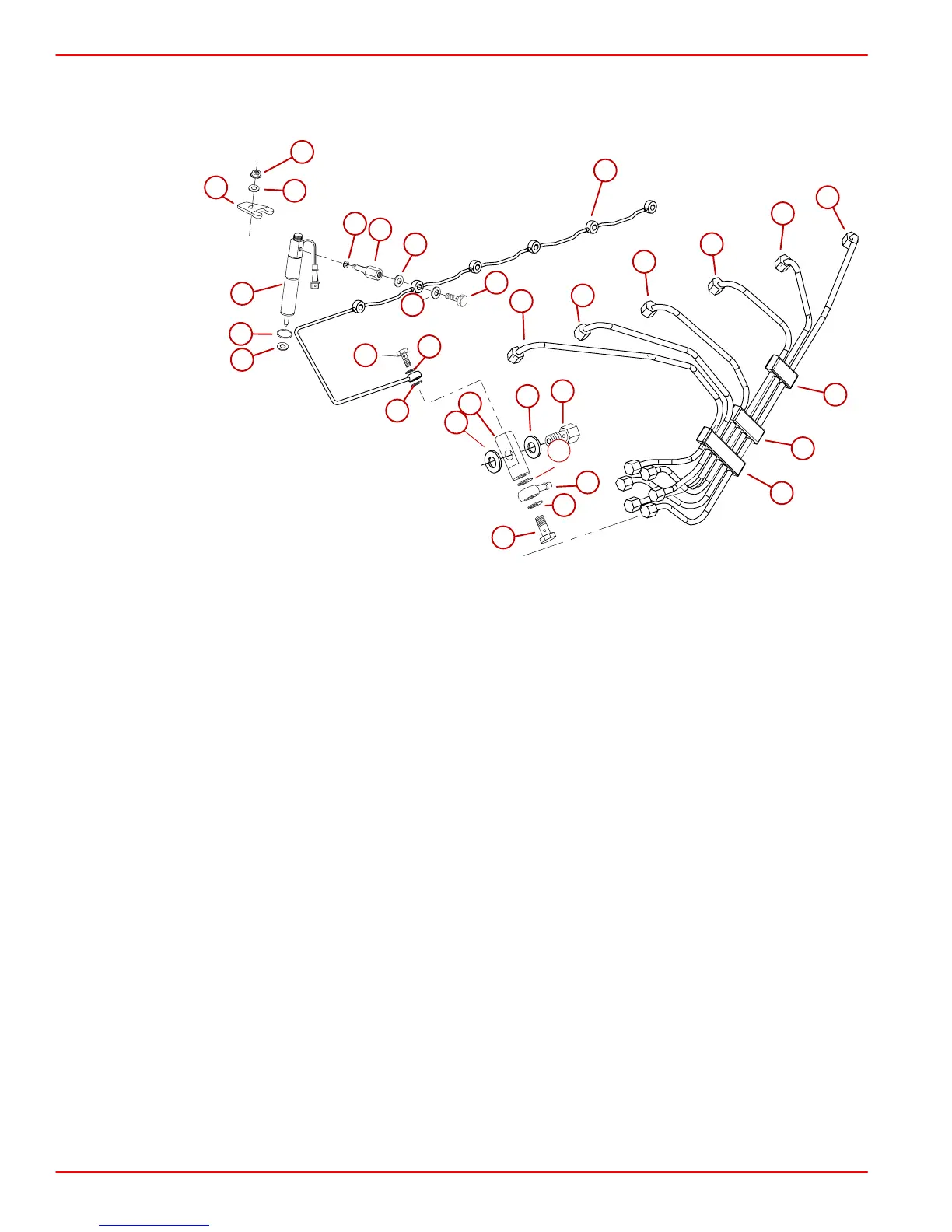

Exploded View
73911
12
13
14
15
9
10
11
1
2
3
4
5
6
7
8
16
17
17
20
19
19
22
23
23
22
23
23
25
26
24
18
21
1-Injector / Instrumented Injector
(Cylinder Number 1 Only)
2-Nozzle Gasket
3-O-ring
4-Nut (M8)
5-Washer (If Equipped)
6-Injector Clamp
7-Injection Pipe (Cylinder #1)
8-Injection Pipe (Cylinder #2)
9-Injection Pipe (Cylinder #3)
10 - Injection Pipe (Cylinder #4)
11 - Injection Pipe (Cylinder #5 - D4.2L
D-Tronic Only)
12 - Injection Pipe (Cylinder #6 - D4.2L
D-Tronic Only)
13 - Clamp
14 - Clamp
15 - Clamp
16 - Hollow Bolt
17 - Sealing Washer
18 - Hollow Bolt (M14 x 1.5)
19 - Sealing Washer
20 - Fuel Return Fitting
21 - Return Fuel Connector
22 - Hollow Bolt (M8 x 1)
23 - Washer
24 - Return Pipe
25 - Injector / Pressure Pipe Adaptor
26 - Sealing Washer
