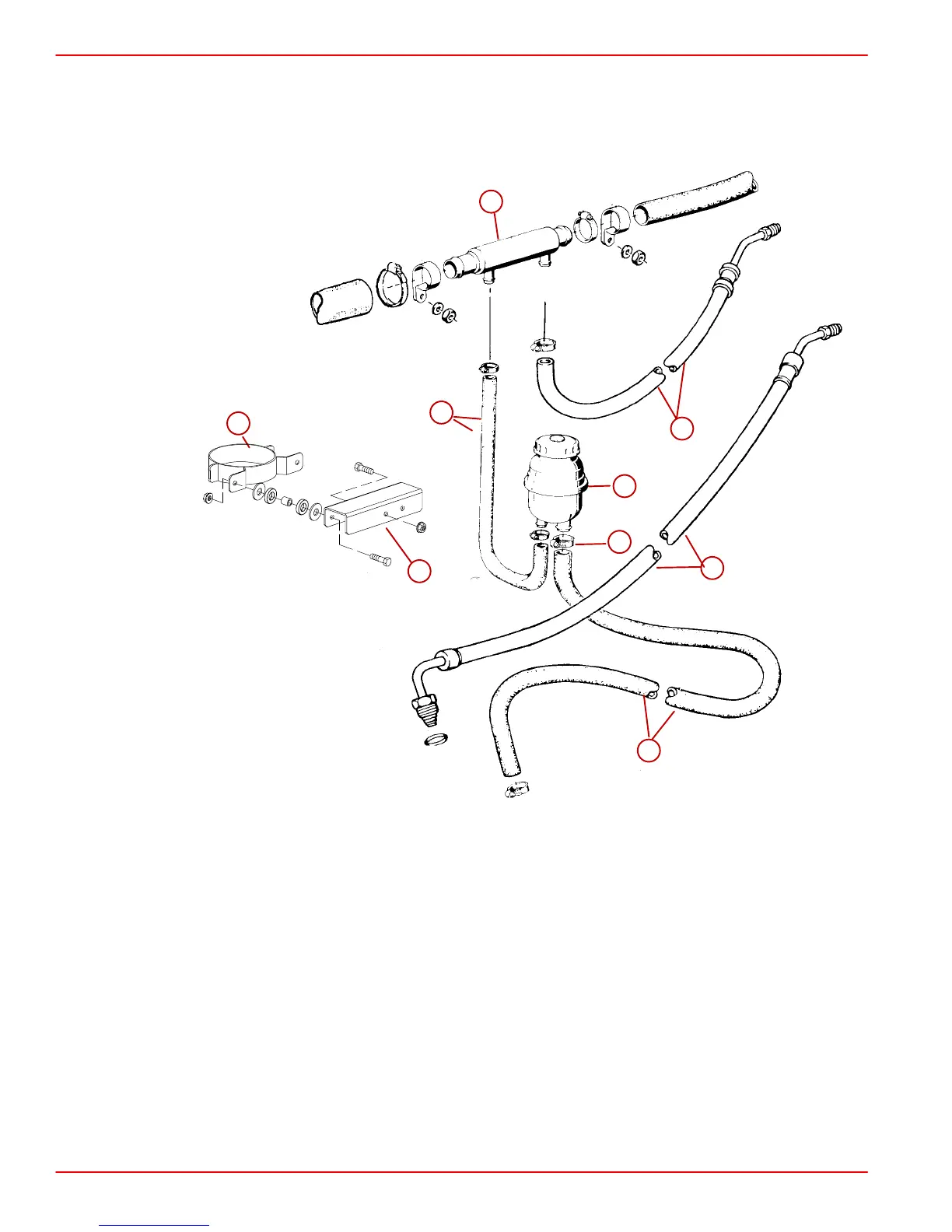

PUMP AND RELATED COMPONENTS SERVICE MANUAL NUMBER 22

Page 9A-4 90-860074--1 FEBRUARY 2002

Related Components

ALL ENGINES

71034

9

6

7

1

8

2

5

3

4

78418

1-Fluid Reservoir Tank

2-Hose Clamp (2)

3-Fluid Reservoir Support

4-Bracket

5-Supply Hose

6-Pressure Hose

7-Return Hose (From Transom)

8-Return Hose (From Cooler)

9-Power Steering Fluid Cooler
