ENGINE MECHANICAL
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 3A-89
Cleaning
1. Wash all parts in cleaning solvent and dry with compressed air.
2. Clean old gasket from cylinder block and oil pan flange.
Inspection
1. Inspect the oil pan for fatigue cracks.
2. Check all welds for leaks.
3. Inspect oil pick-up assembly for fatigue cracks or damage.
4. Replace parts with those for your specific model.
Installation

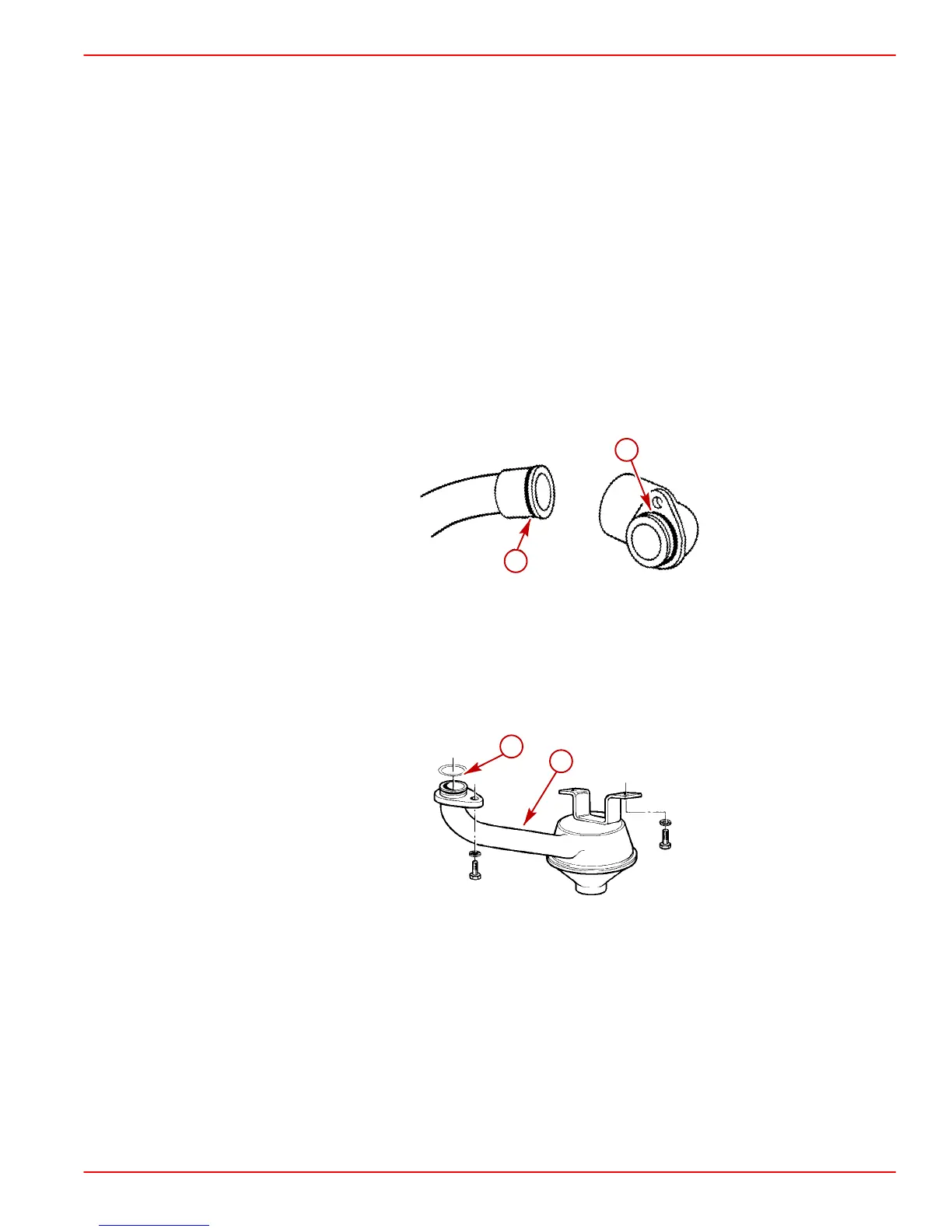

1. On Engines With Two Piece Suction Tube:
a. Renew O-rings on oil pick-up tube and elbow.
70286
b
a
a
b
a-O-ring, Oil Pick-up (Suction) Tube
b-O-ring, Oil Pick-up (Suction) Tube Elbow
b. Install elbow on oil pick-up tube.
2. On Engines With One Piece Suction Tube: Renew O-ring on oil pick-up tube.
75107
a
b
a-O-ring
b-Oil Pick-up
