SEAWATER COOLING SYSTEM SERVICE MANUAL NUMBER 22
Page 6A-40 90-860074--1 FEBRUARY 2002
Power Steering
REMOVAL
NOTICE
Refer to Cold Weather or Extended Storage, Draining Instructions in SECTION 1B-Main-
tenance and Precautions in this section, BEFORE proceeding.
1. Drain the seawater system.
2. Disconnect seawater hoses from fluid cooler.
3. Mark fore and aft fluid hoses to aid in reassembly.
NOTE: Obtain two clean, suitable devices and plug hoses in following instructions to avoid
loss of fluid.
4. Using a suitable container to catch excess fluid, disconnect fluid hoses. Plug hoses
quickly.
5. Remove fasteners from clamps retaining cooler.
6. Remove cooler with J-clamp.
75594
75393
a
e
f
e
d
c
b
d

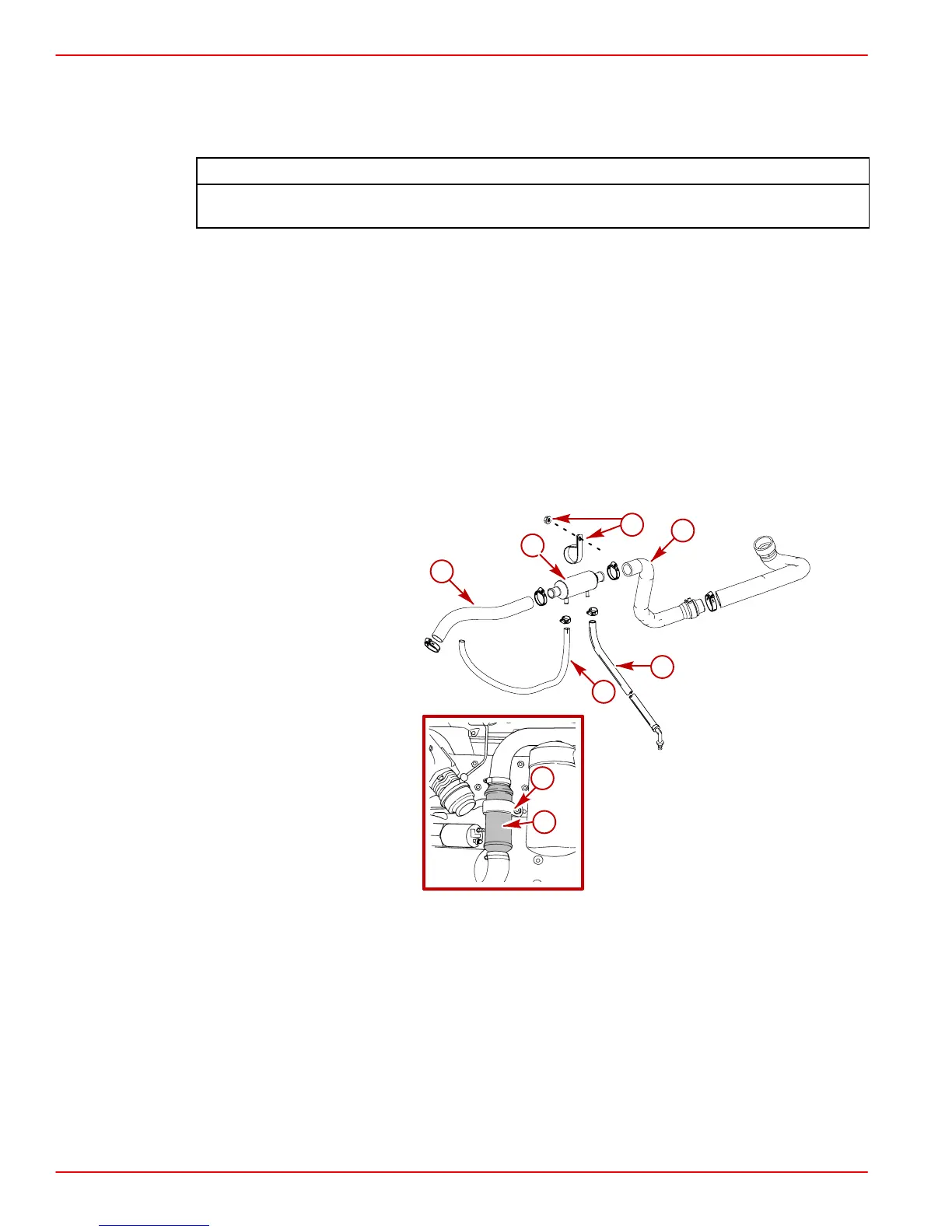

Typical Power Steering Cooler Installation
a-D4.2L D-Tronic Cooler
b-Forward Fluid Hose (From Reservoir)
c-Aft Fluid Hose (To Pump)
d-Seawater Hoses
e-J-clamp And Nut
f-D2.8L D-Tronic Cooler
To Next Page
