MAINTENANCE
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 1B-15
Port Side View
75298
10
12
13
15
16
1
2
3
4
5
6
7
8
9
14
17
18
19
11
20

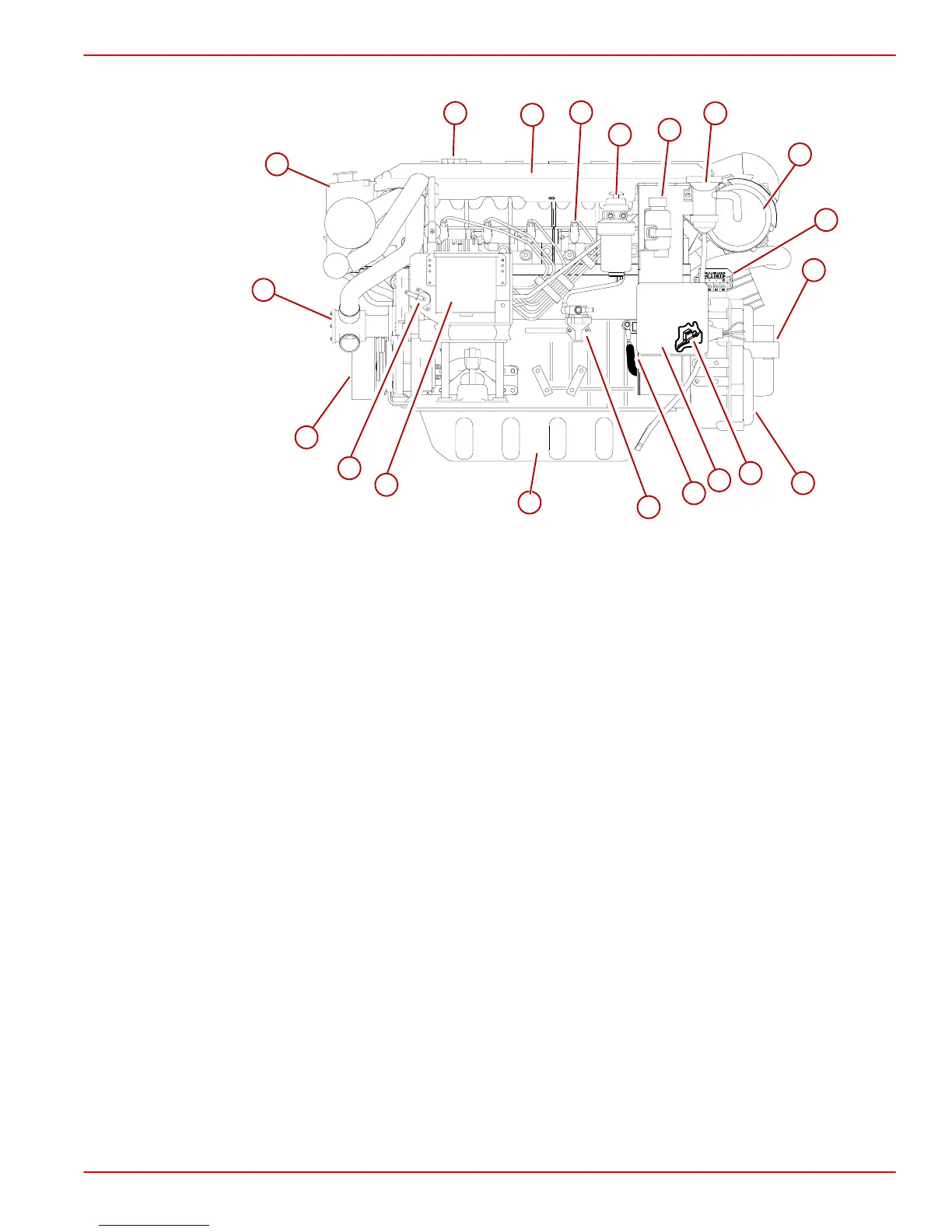

Typical In-Line D-Tronic Diesel
1-Oil Fill Cap
2-Engine Cover
3-Fuel Injector
4-Fuel Filter
5-Gear Lube Monitor
6-PCV / Oil Separator
7-Air Filter
8-MerCathode Controller
9-Rear Engine Mount
10 - Flywheel Housing (Rear Portion)
11 - 5 Amp. ECM Fuse
12 - Electrical Box
13 - Engine Block Ground Stud
14 - Fuel Delivery Pump
15 - Oil Pan
16 - Engine Control Module (ECM)
17 - Throttle Position Sensor
18 - Vibration Damper And Crankshaft Pulley
19 - Seawater Pump
20 - Heat Exchanger
