73962

BLK = BLACK

BLU = BLUE

BRN = BROWN

GRY = GRAY

GRN = GREEN

ORN = ORANGE

PNK = PINK

PUR = PURPLE

RED = RED

TAN = TAN

WHT = WHITE

YEL = YELLOW

LT OR LIT = LIGHT

DRK = DARK

WIRING DIAGRAMS SERVICE MANUAL NUMBER 22

Page 4E-14 90-860074--1 FEBRUARY 2002

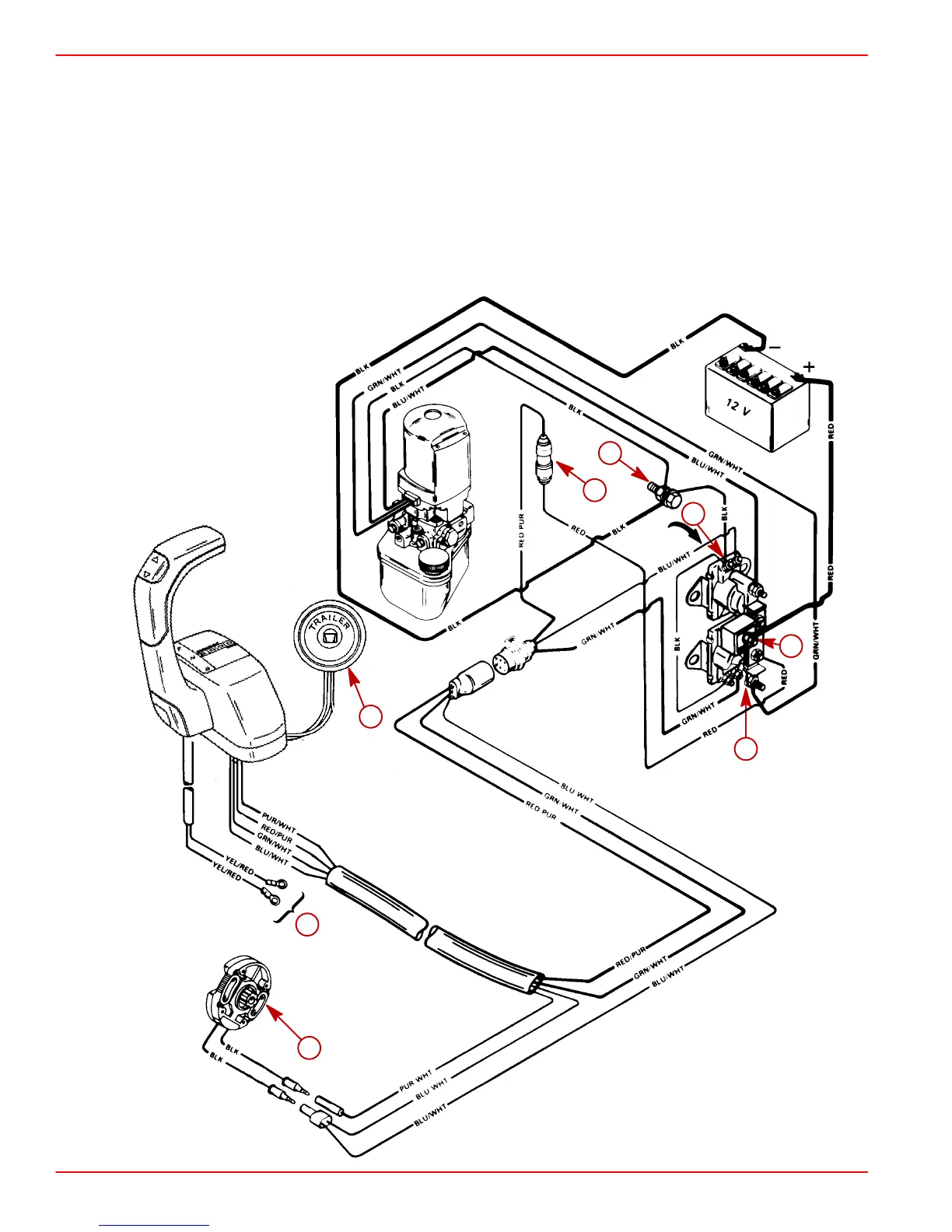

Power Trim System Wiring Diagram

a-20 Amp Fuse

b-Ground Bolt (Floor Mount)

c-UP Solenoid

d-110 Amp Fuse

e-DOWN Solenoid

f-Trailer Switch

g-Neutral Switch To Instrument Wiring Harness

h-Trim Limit Switch
