Second Station Extension Harness
5. Connect and tighten threaded collars of instrument extension harnesses to second
station instrument harness ends.
IMPORTANT: When routing any wiring harness ensure that the harnesses do not rub
or get pinched.
NOTE: Refer to Wiring Diagrams - Wiring Harness Connections.
IMPORTANT: Connectors must be fully engaged and secure.
6. Connect second station instrument harness to Y-box or Y-harness connector, tagged or
titled “ 2nd STATION ”.
7. Connect primary station instrument harness to Y-box or Y-harness connector, tagged
or titled “ MAIN STATION ”.
8. Connect extension harnesses from engine harness to Y-box or Y-harness connector.
9. Secure harnesses to boat at least every 460 mm (18 in.), using appropriate fasteners.
77223
a
b
c
c
75871
b
a

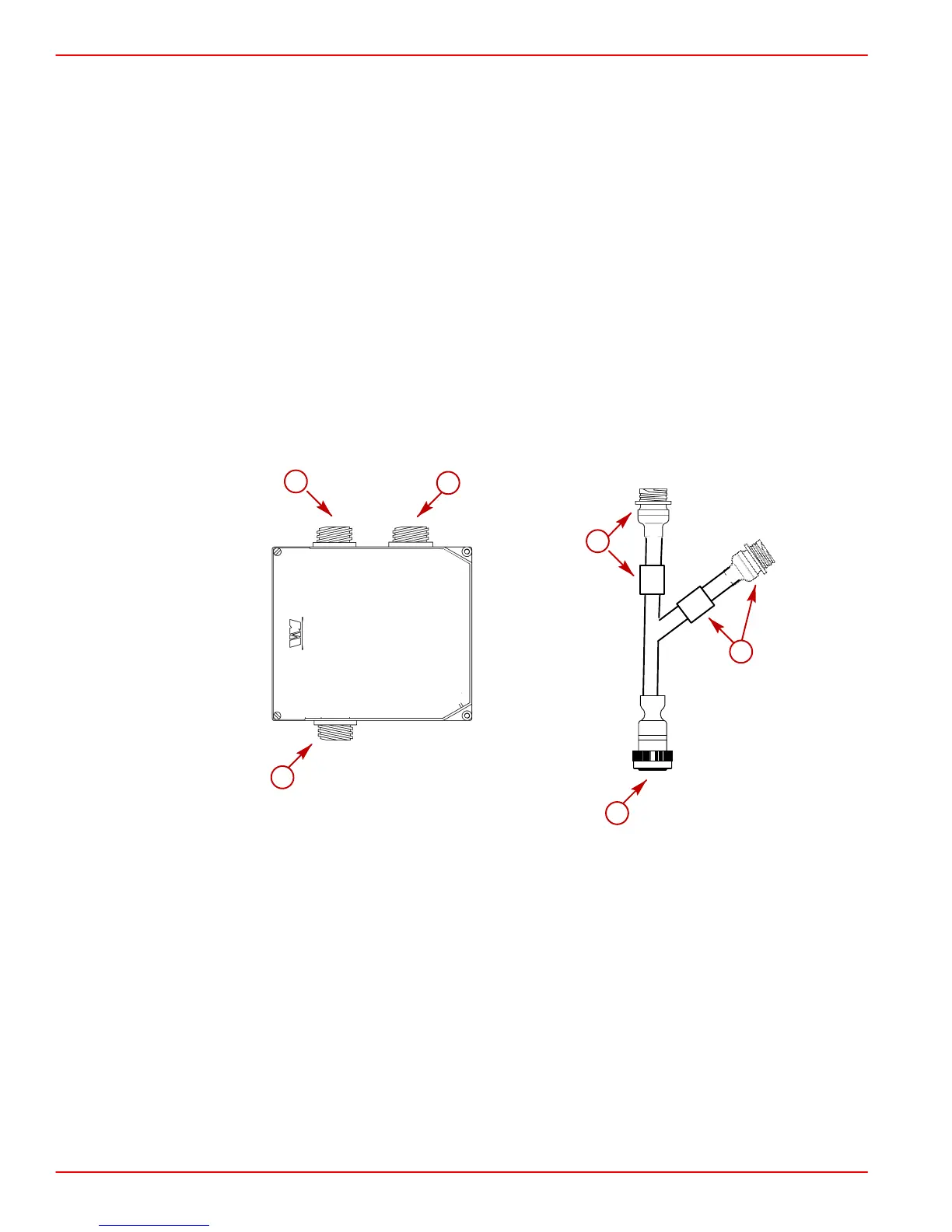

Early Model Connector - Y-Box
Later Model 21 Pin Connector -
Y-Harness
a-Primary Station Connector (Tagged Or Titled “MAIN STATION”)
b-Second Station Connector (Tagged Or Titled “2nd STATION”)
c-Engine Harness Connector
