WIRING DIAGRAMS

SERVICE MANUAL NUMBER 22

90-860074--1 FEBRUARY 2002 Page 4E-15

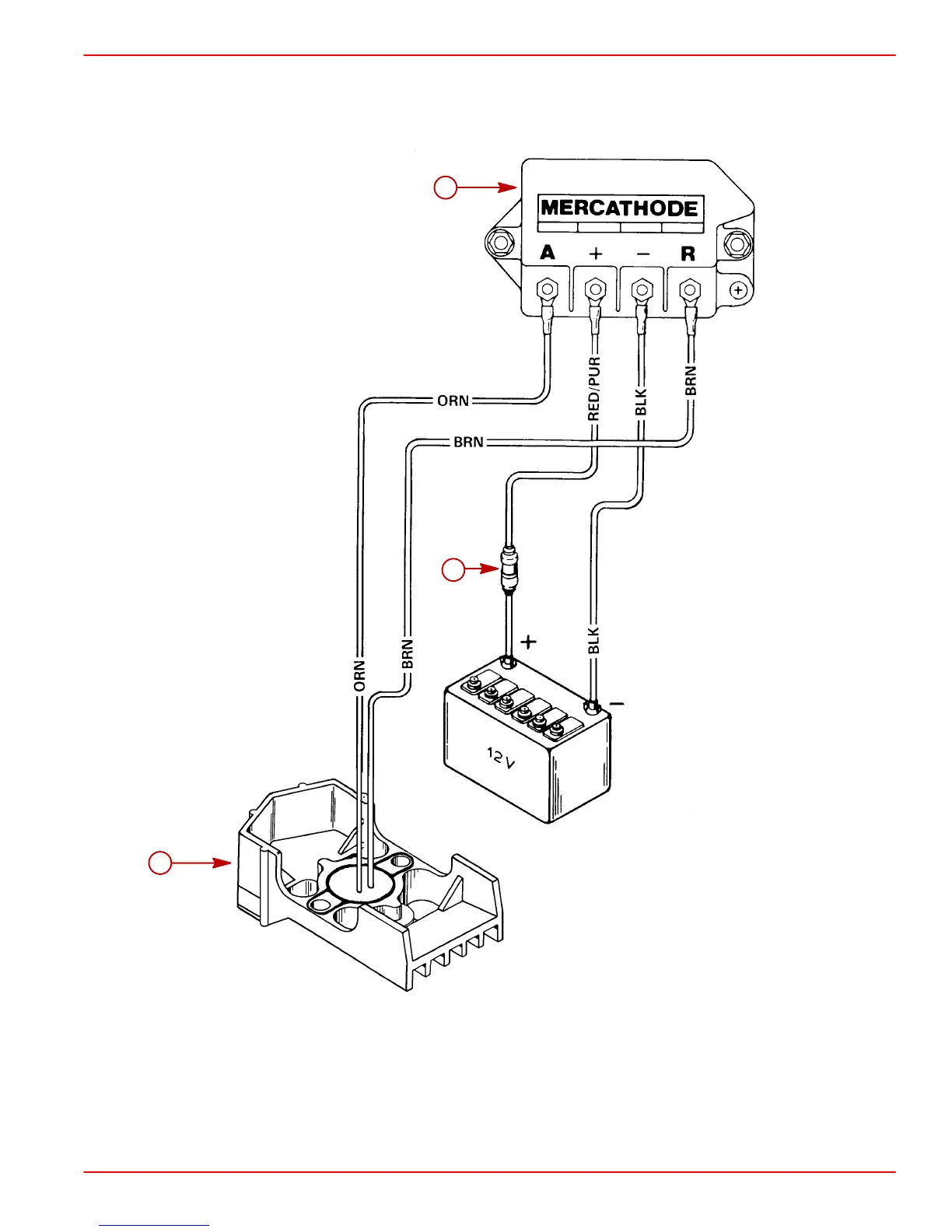

MerCathode System Wiring Diagram

a-Controller

b-20 Amp Fuse

c-Electrode
