SEAWATER COOLING SYSTEM SERVICE MANUAL NUMBER 22

Page 6A-8 90-860074--1 FEBRUARY 2002

D4.2L D-Tronic

73946

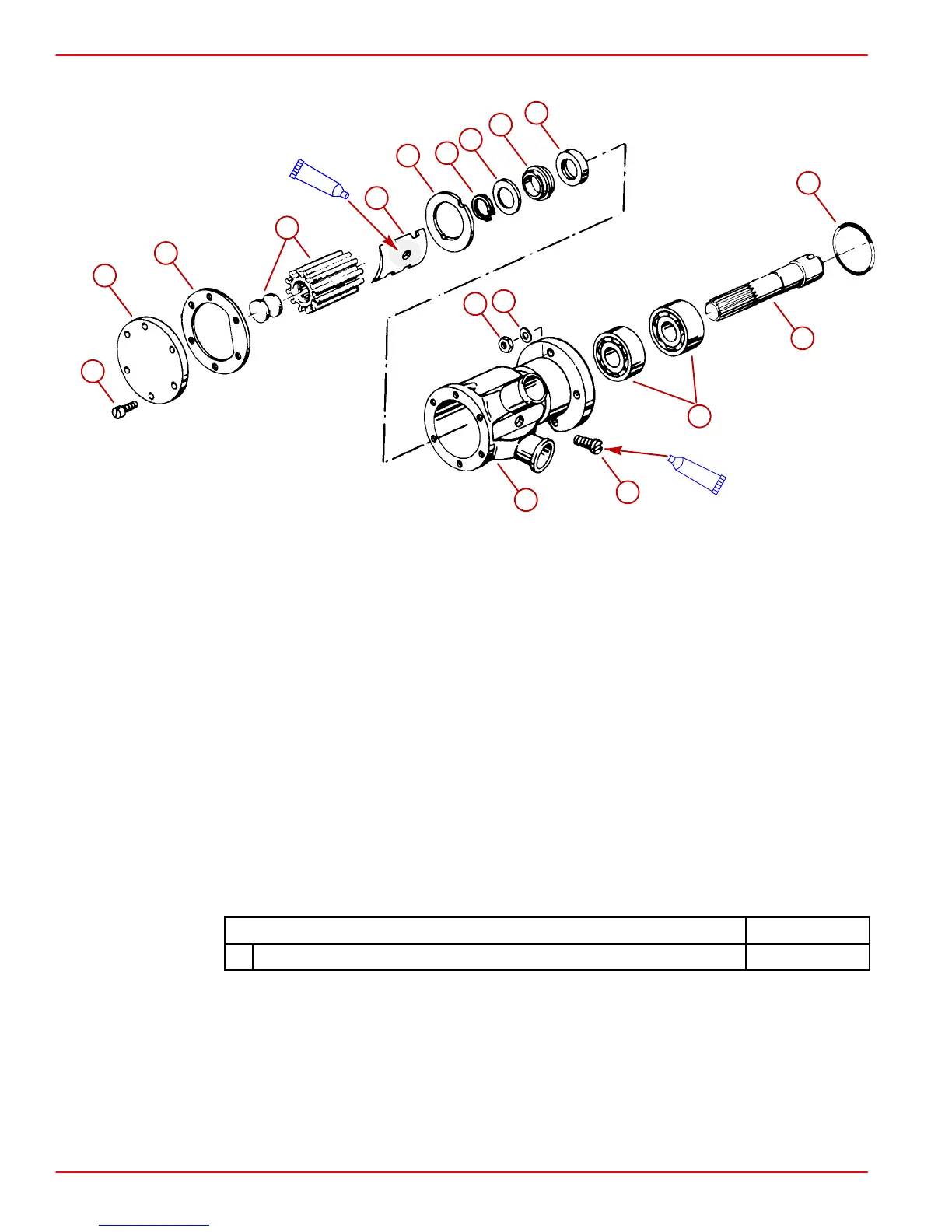

1-Pump Housing

2-Screw

3-Cover

4-Gasket

5-Impeller and Spline Plug

6-Cam (Apply Sealer Indicated to Back-Side)

7-Thrust Washer (Align Notch with Housing Pin)

8-Retaining Ring

9-Spacer

10 - Seal

11 - Oil Seal

12 - Screw

13 - Sealed Ball Bearing

14 - Shaft

15 - O-ring

16 - Lockwasher (4)

17 - Nut (4)

Description

Part Number

A Loctite Master Gasket 92-12564-2
