CHARGING SYSTEM SERVICE MANUAL NUMBER 22
Page 4B-16 90-860074--1 FEBRUARY 2002

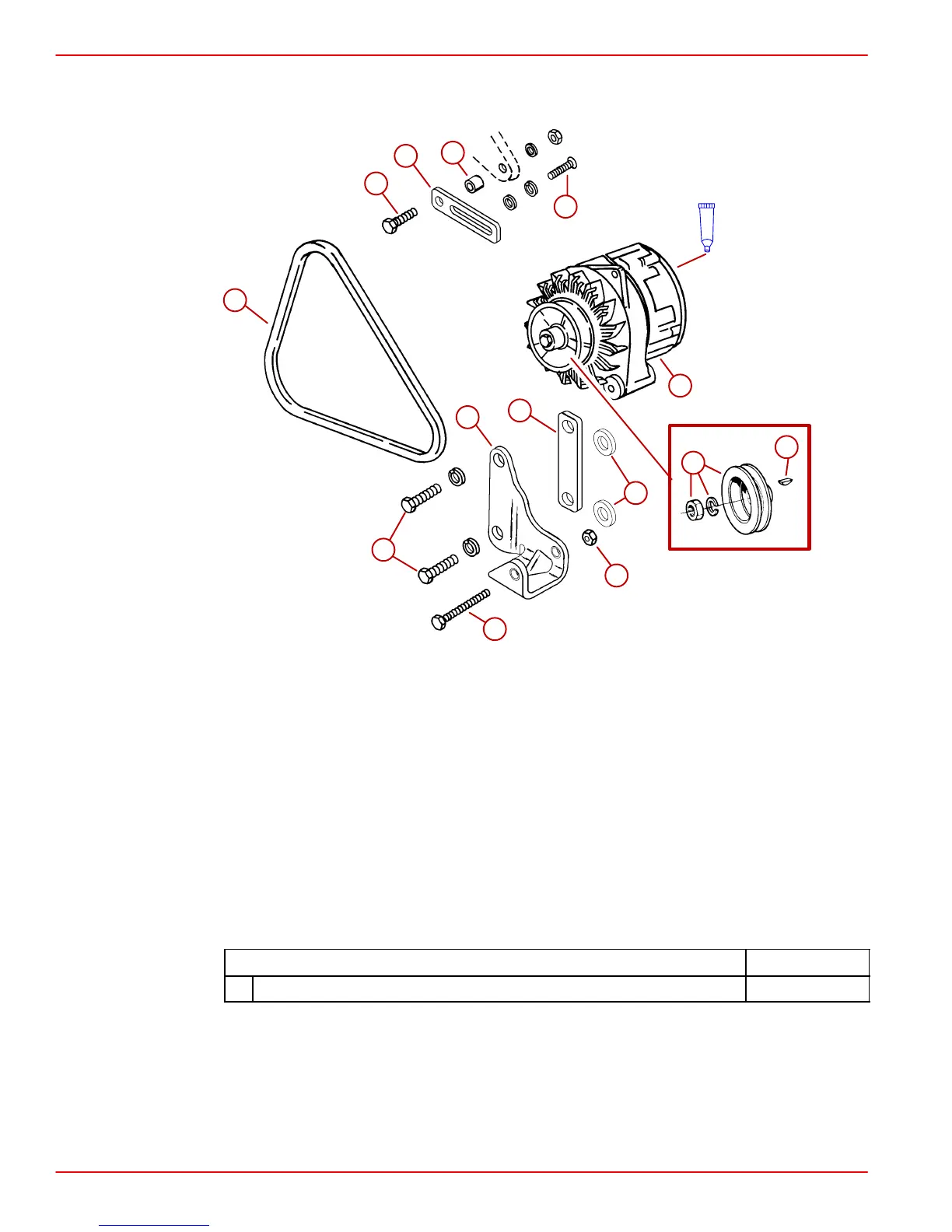

Exploded View
74467
A
10
11
13
2
3
4
6
7
8
9
1
12
5
3
1-Key
2-Alternator
3-Spacer (1 Shown, Some Models May Have 1 Upper and 1 Lower Spacer)
4-Bracket
5-Screw and Lockwasher (M14)
6-Mounting Bolt (M8)
7-Mounting Nut (M8)
8-Alternator Brace
9-Alternator Brace Spacer
10 - Brace Bolt, Washers and Nut (M10)
11 - Tensioning Bolt, Lockwasher and Flat Washer
12 - Pulley, Lockwasher and Nut
13 - Alternator V-Belt
Description
Part Number
A Liquid Neoprene 92-25711--1
To Next Page
