INBOARD (MIE) MODELS
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 2B-7
Installation
Engine Installation and Initial Alignment
1. Engine mount or mount adjustment WAS NOT DISTURBED during engine
service: Proceed to following Step 3.
2. Engine mount or mount adjustment WAS DISTURBED during engine service:
IMPORTANT: Engine mounts must be adjusted, as explained in the following, to
center mount adjustment and establish a uniform height on all mounts.
Ensure that:
a. All mounts are in the center of their up-and-down adjustment.
b. Large diameter of mount trunnion extended no more than 19 mm (3/4 in.).
c. Each mount base is downward. Tighten clamping screws and nuts slightly to prevent
moving in or out. Mounts must be free to pivot when installing engine.
23161
a
b
b
27035
a
b
b

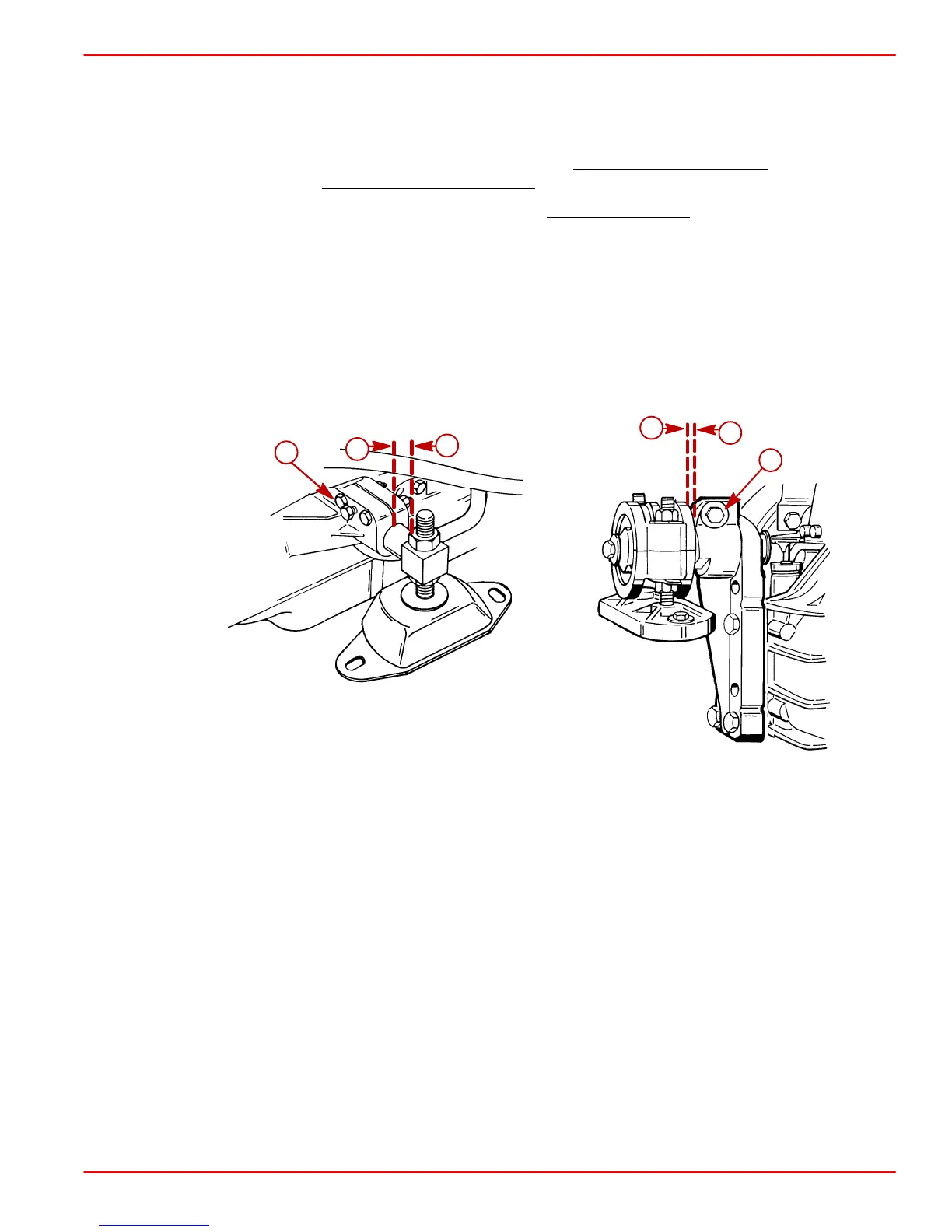

Typical Front Mount Typical Rear Mount
a-Trunnion Clamping Bolt and Nut
b-Mount Trunnion Extension
To Next Page
