CLOSED COOLING SYSTEM SERVICE MANUAL NUMBER 22

Page 6B-10 90-860074--1 FEBRUARY 2002

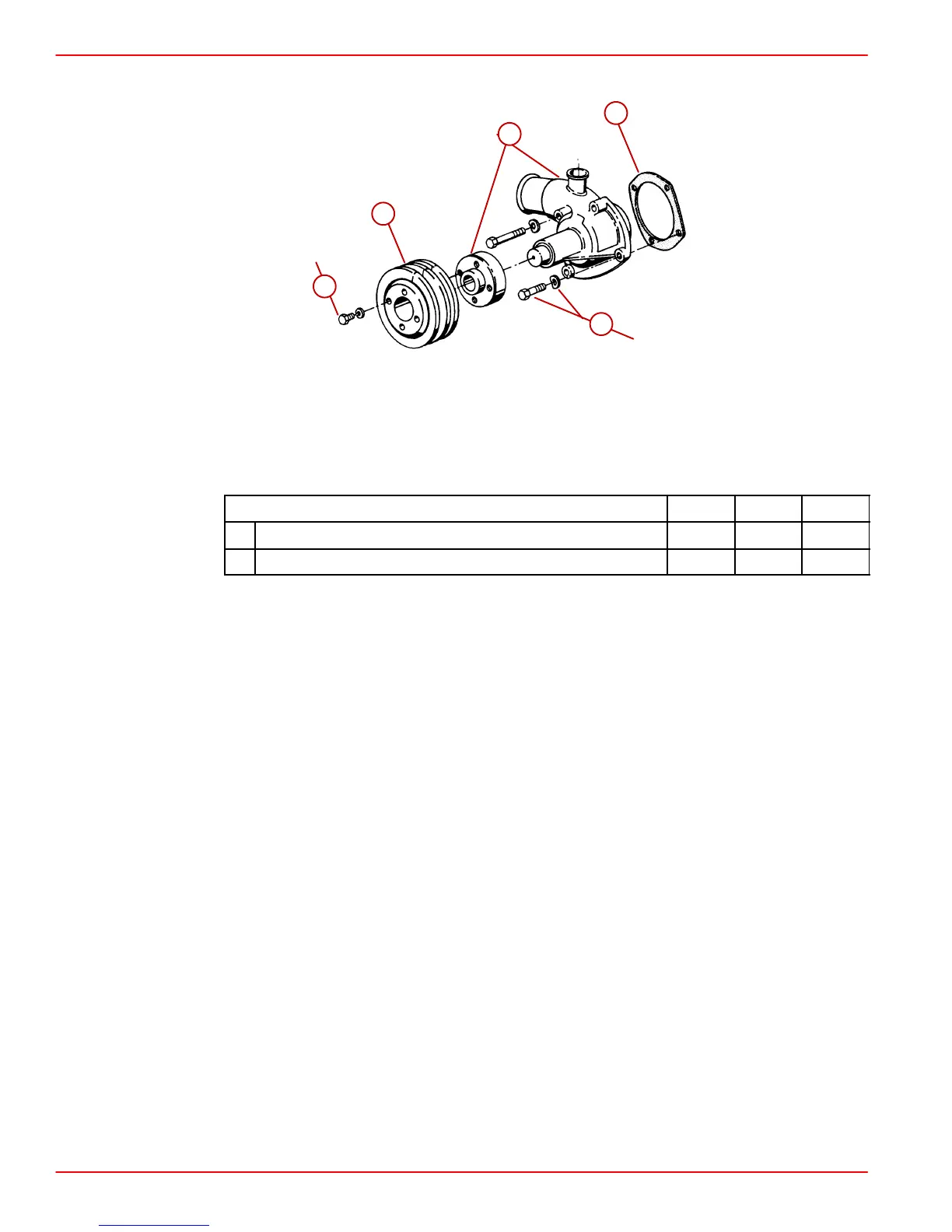

Engine Water Circulating Pump

73948

1-Water Circulating Pump

2-Screws With Washers

3-Gasket

4-Pulley

5-Screws With Washers

Description

Nm lb-in. lb-ft

A Engine Water Circulating Pump Screw 30 22

B Water Pump Pulley Screw 8.5 72
