TURBOCHARGER

SERVICE MANUAL NUMBER 22

90-860074--1 FEBRUARY 2002 Page 7C-3

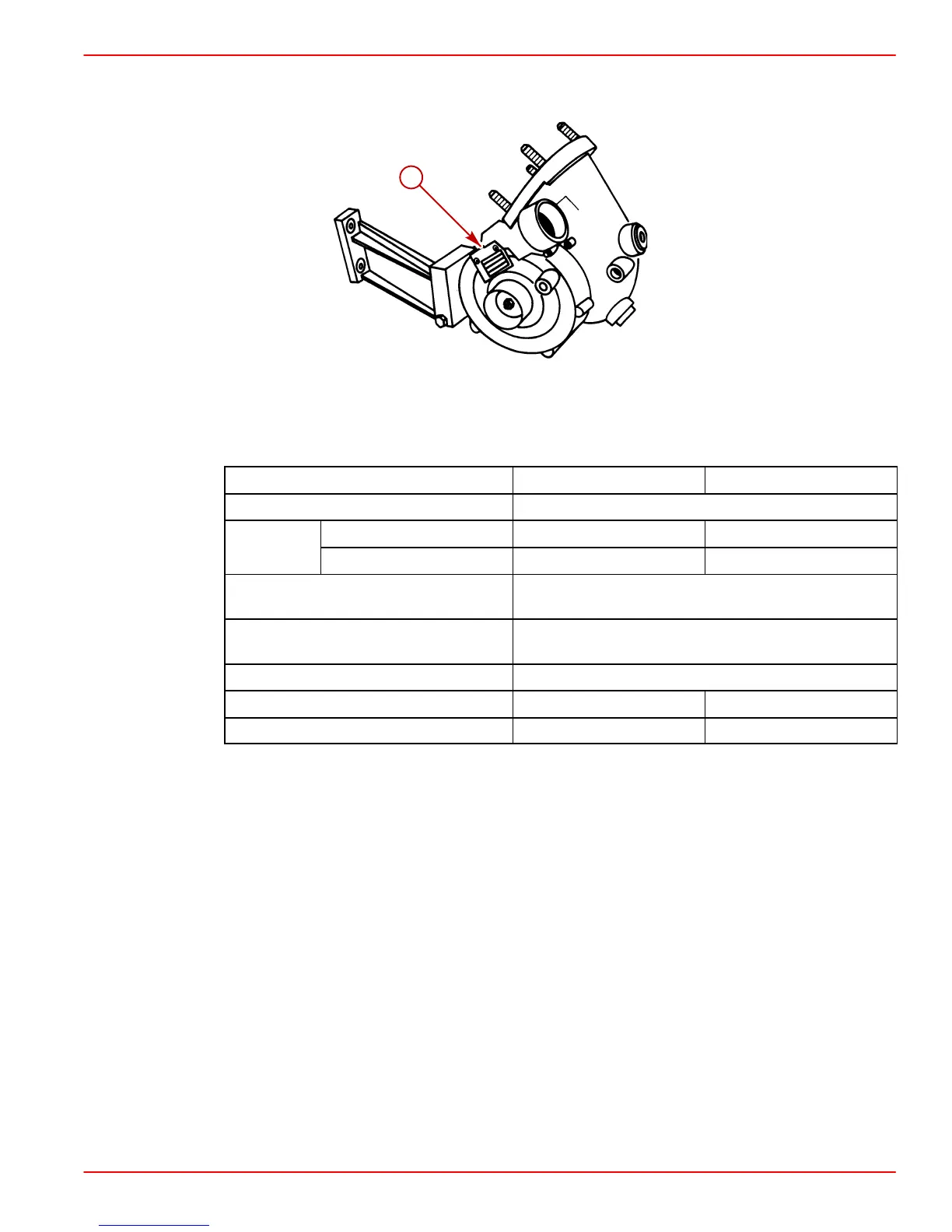

Identification

70076

a-Identification Number Location

Turbocharger Specifications

Model D2.8L D-Tronic D4.2L D-Tronic

Manufacturer KKK - Kuhnle, Kopp and Kaush

Part

KKK K24-2467GxA6.71 K26-2967MxA8.72

Part

Number

Quicksilver 854212 854128

Maximum turbine shaft axial (end)

play

0.15 mm (0.0059 in.)

Maximum turbine shaft radial (side)

play

0.42 mm (0.0165 in.)

Maximum Boost 100 - 124 kPa (14.5 - 18 psi)

Engine rpm when boost starts 1600 - 1800 1500 - 1800

Wastegate Equipped Equipped
