INSTRUMENTATION SERVICE MANUAL NUMBER 22
Page 4D-30 90-860074--1 FEBRUARY 2002
Secondary Station
WARNING
Avoid injury or property damage. Starting an engine while the sterndrive unit or
transmission is in gear could cause severe injury to people or animals in or near the
boat, or property damage due to unexpected operation. Special circuitry and
switches are necessary and must be used to prevent accidental starter engagement
and subsequent engine operation while a sterndrive or transmission is in a gear.
STERNDRIVE (MCM) MODELS
IMPORTANT: The two bullet connectors on the YEL/RED wire must be disconnected.
Also, the two bullet connectors on the YEL/WHT wire must be disconnected. After
doing so, connect female YEL/WHT terminal and male YEL/RED terminal to Neutral
Start Safety Circuit wires from remote control. Leave the other two connectors
disconnected.
1. Disconnect the two bullet connectors on the YEL/RED wire.
2. Disconnect the two bullet connectors on the YEL/WHT wire.
3. Connect female YEL/WHT terminal and male YEL/RED terminal to neutral start safety
circuit wires from remote control.
4. Leave the male YEL/WHT and female YEL/RED terminals disconnected. Keep wires
separated. Tape each wire separately with at least two layers of electrical tape.

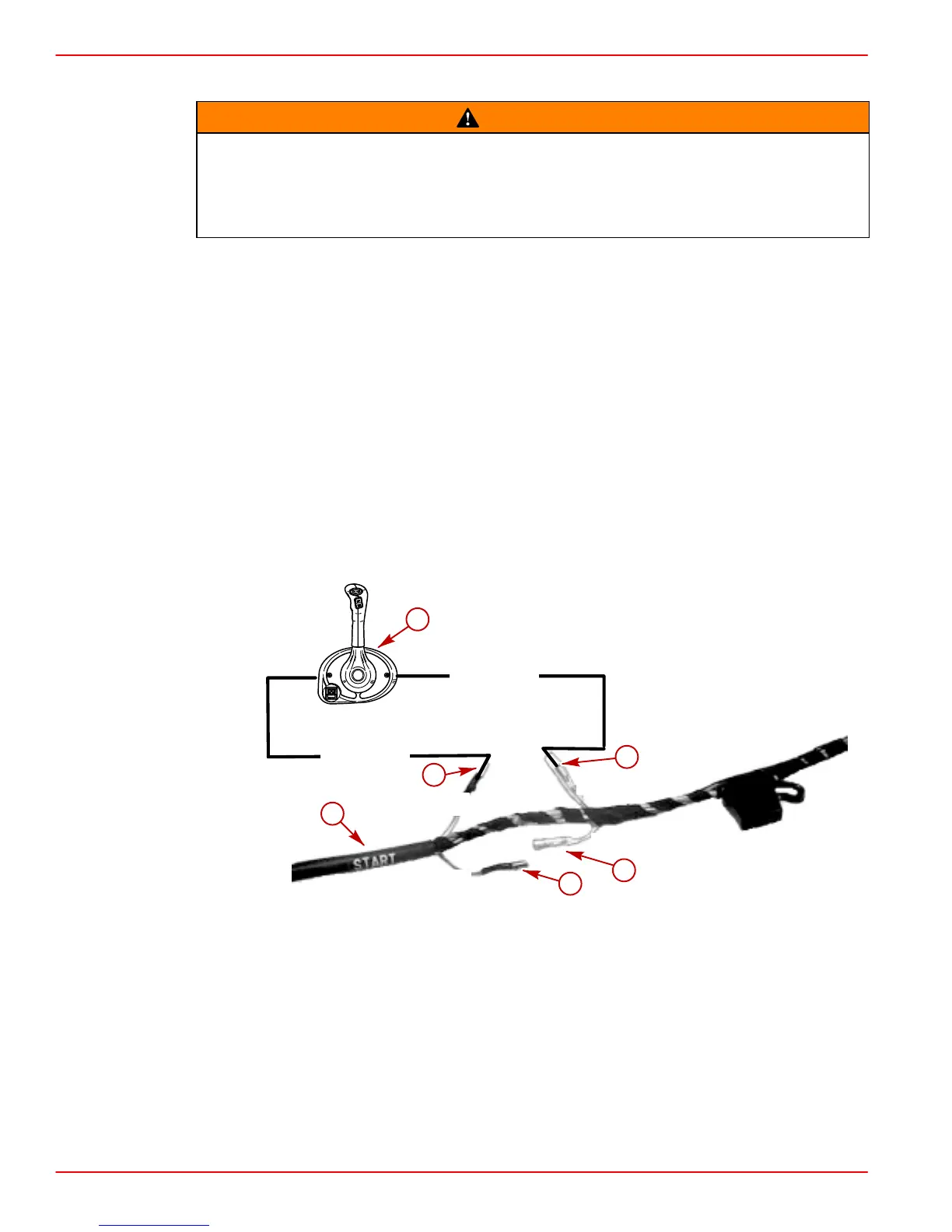

77776
a
b
YEL/RED
YEL/RED
YEL/WHT
YEL/RED
YEL/WHT
YEL/RED
c
e
d
f
a-Instrument Harness START Wires
b-Female YEL/WHT Terminal
c-Male YEL/RED Terminal
d-Remote Control / Neutral Safety Start Circuit
e-Male YEL/WHT Disconnected
f-Female YEL/RED Disconnected
To Next Page
