3.74
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
28. Torque oil cooler retaining bolts to specification.
TORQUE
Oil Cooler Retaining Bolts:
7 ft-lb (10 Nm)
29. Proceed to Flywheel Installation, page 3.74 and then
Cylinder Head Installation, page 3.77.

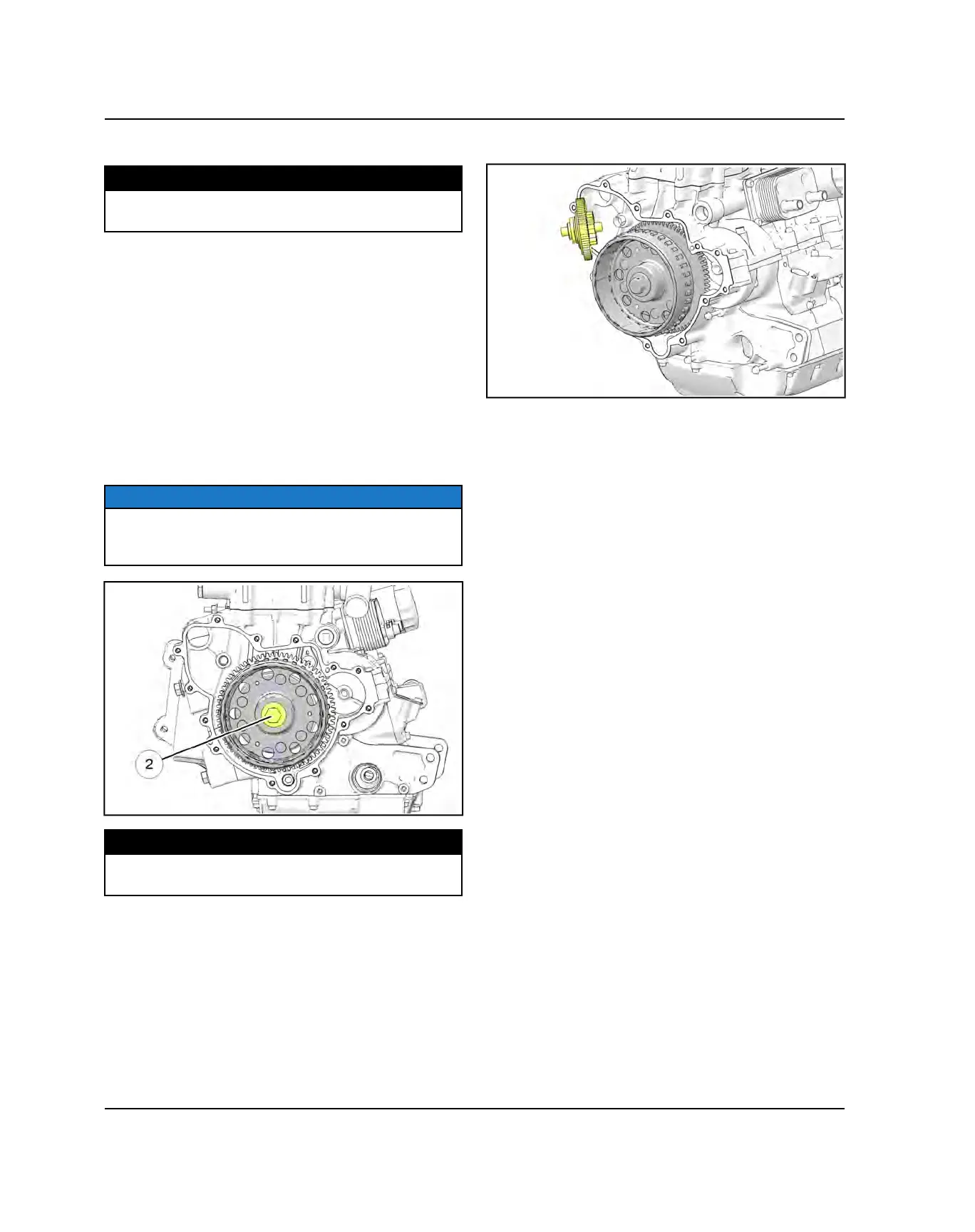

FLYWHEEL INSTALLATION
1. If previously removed, reinstall the flywheel key.
2. Clean taper of crankshaft to remove all oil or grease.
3. Clean flywheel taper to remove all oil or grease.
4. Align flywheel key-way with key and install the
flywheel, seating it fully on taper.
5. Install flywheel retaining bolt. Using a commercially
available strap wrench, hold the flywheel and torque
the flywheel retaining bolt
w
to specification.
NOTE
If the Cylinder Holding & Camshaft Timing Plate (PU-
50563) is installed, remove it before tightening the
flywheel.
TORQUE
Flywheel Retaining Bolt:
133 ft-lbs (180 Nm)
6. Install the starter torque limit gear as an assembly.
ENGINE
