9.10
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.

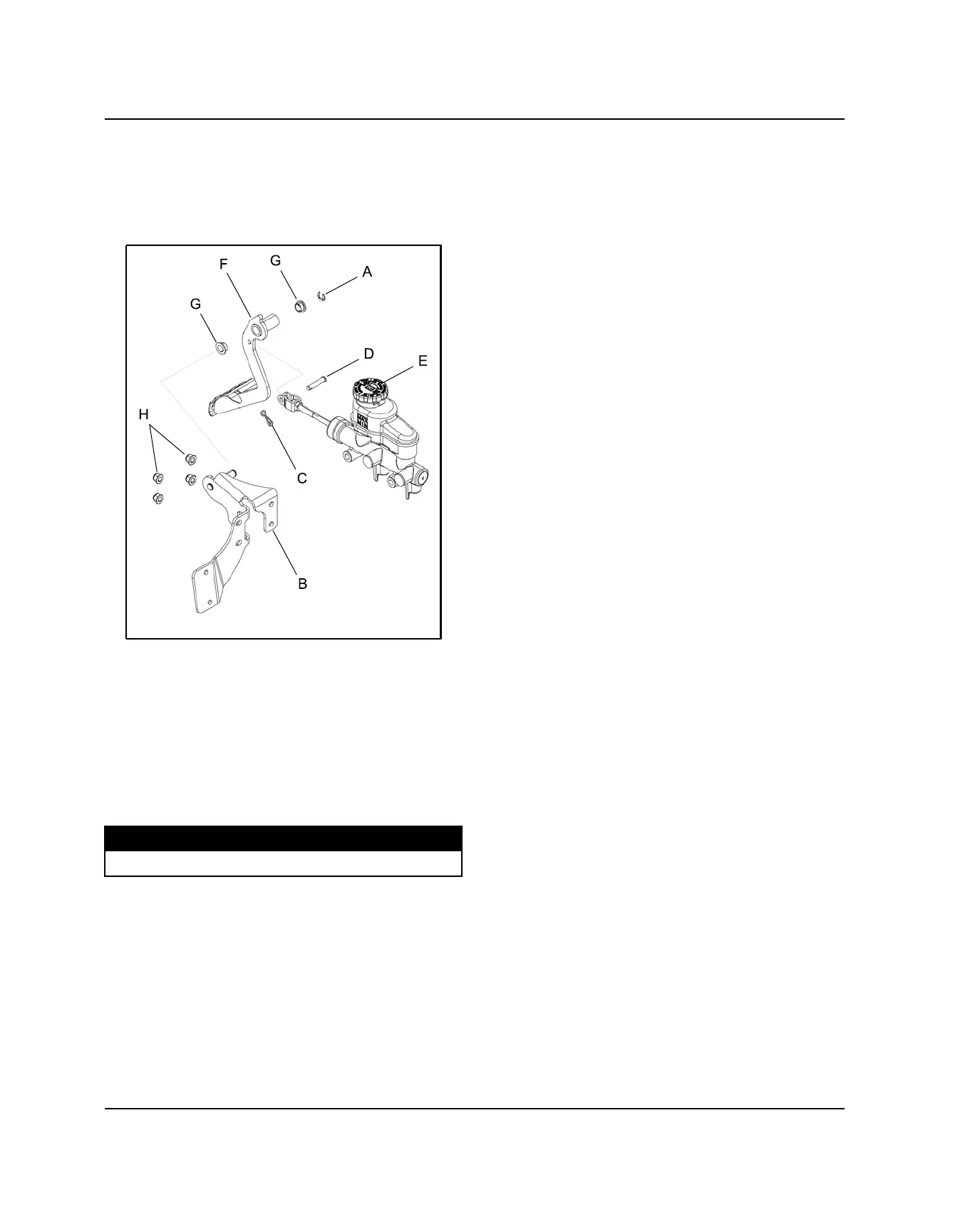

FOOT BRAKE PEDAL
REMOVAL
1. Remove the clip (A) from the end of the pedal mount
bracket (B).
2. Remove the retaining clip (C) and clevis pin (D) from
the master cylinder (E) to free it from the brake pedal
(F).
3. Slide the brake pedal (F) and bushings (G) off the
pedal mount bracket (B).
INSTALLATION
1. If the pedal mount bracket (B) was removed, torque
retaining nuts (H) to specification.
TORQUE
Pedal Mount Bracket Nuts:18 ft-lbs (24 Nm)
2. Reverse “Removal” steps 1-3 to complete foot brake
installation.
3. Use new retaining clips upon installation.
BRAKES
