5
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
5.27
ROCKER PANELS - CREW
REAR ROCKER PANEL REMOVAL
1. Remove the rear seat base.
2. Remove the under seat storage boxes.

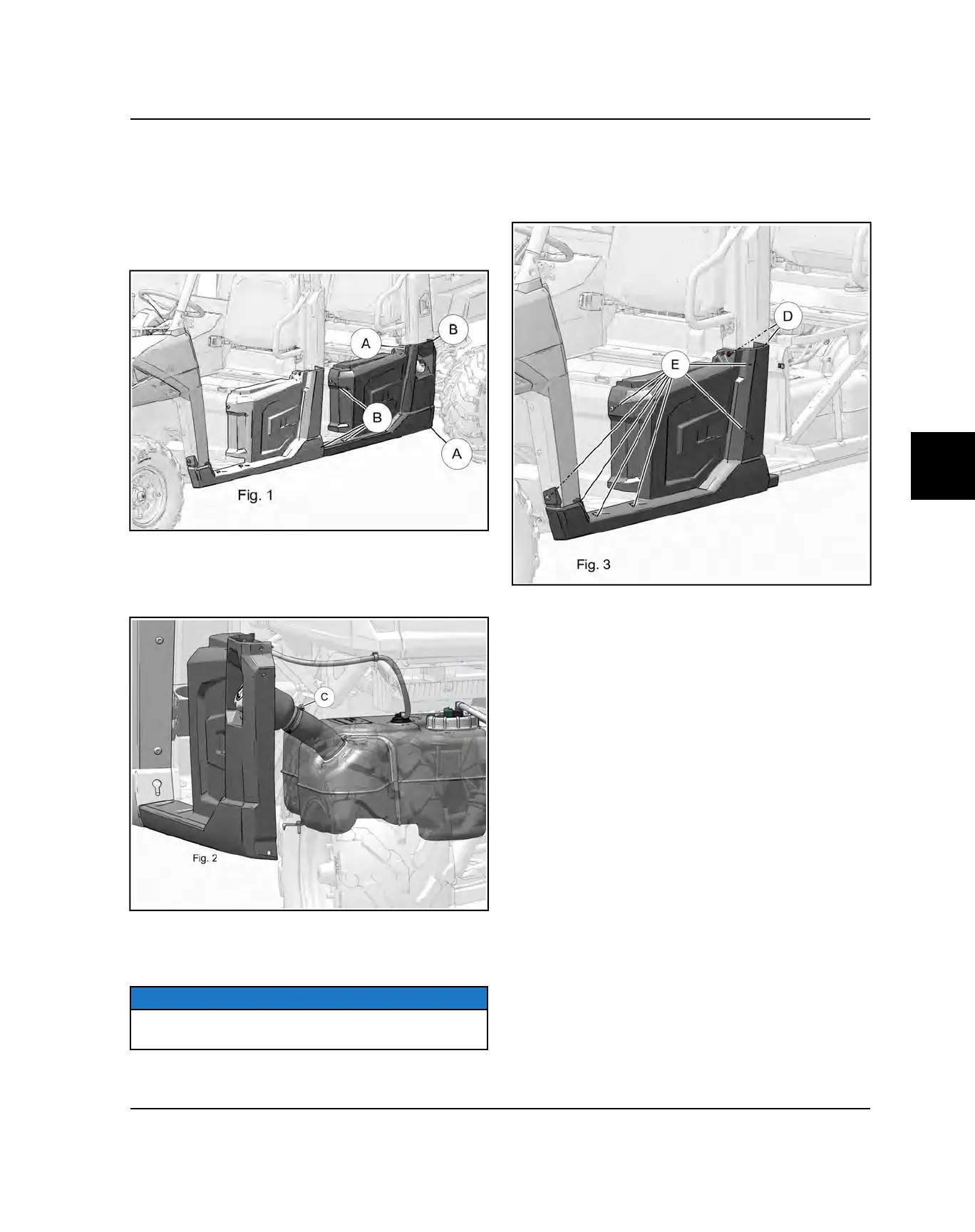

3. Remove the (2) push rivets (A) Fig. 1 from the rocker
panel.
4. Remove (4) T-40 Torx-head screws (B) Fig. 1 from
the rocker panel.
5. Remove the band clamp (C) Fig. 2 from the fuel fill
hose.
6. Remove the rocker panel assembly from the vehicle.
7. Cover the fuel fill hose to prevent leakage and to
prevent debris from entering the fuel tank.
NOTE
WARNING: Gasoline is extremely flammable and
explosive under certain conditions.
8. Installation is reverse of removal.
1. Remove rear rocker panel. (see “Rear Rocker Panel
Removal”)
2. Remove front seat base.
3. Remove the under seat storage boxes.
4. Remove (2) push rivets (D) Fig. 3 from the rocker
panel.
5. Remove the (6) T-40 Torx-head screws (E) retaining
the rocker panel.
6. Remove the rocker panel/fender assembly.
7. Installation is reverse of removal.
BODY / STEERING / SUSPENSION
