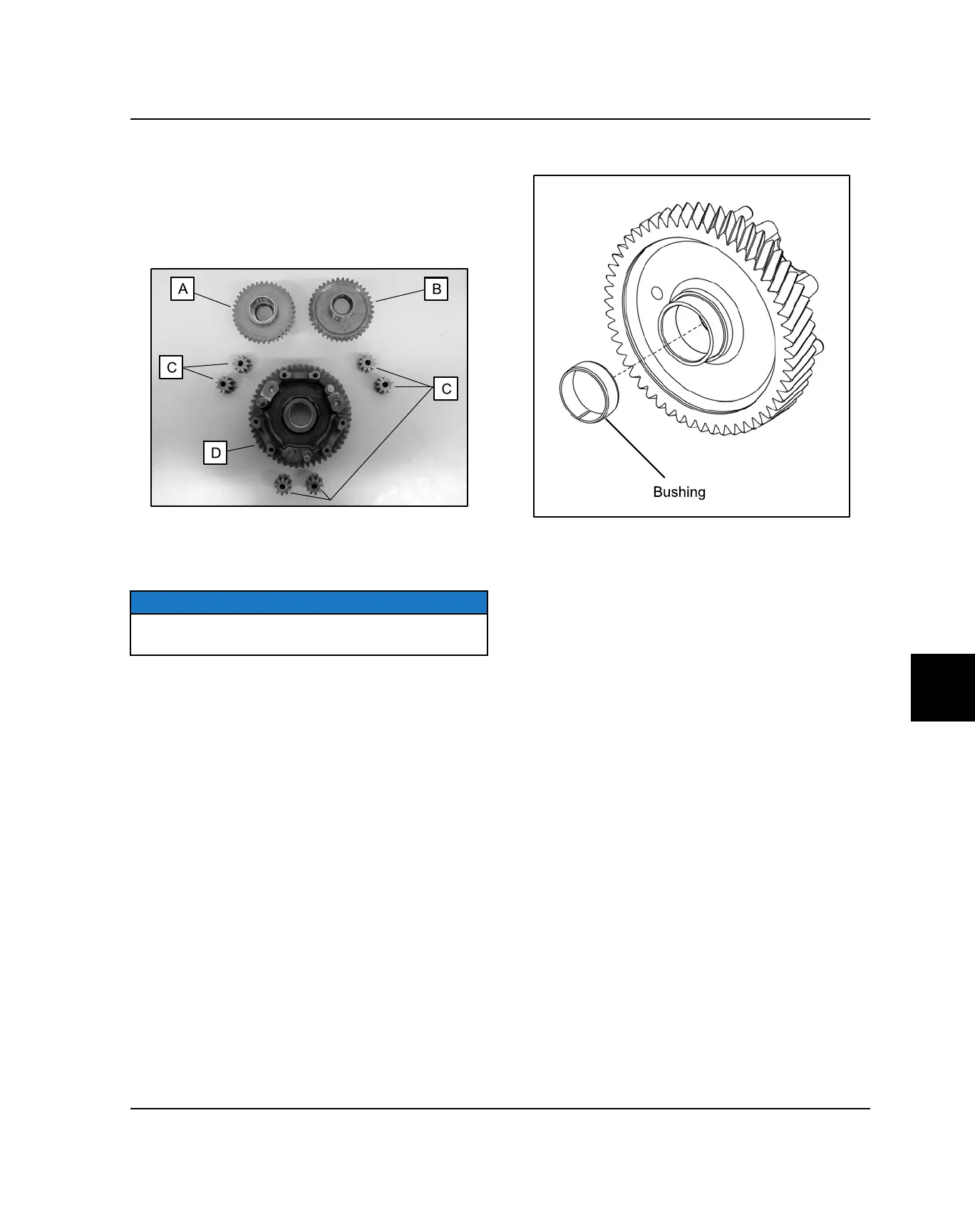

4. Inspect the female side gear (A), male side gear (B),
planet gears (C) and ring gear (D). Replace
components or bushings as needed. Bushing
replacement can be performed on all necessary
differential components. If bushing replacement is
required, proceed to Planetary Differential Bushing
Replacement”.
PLANETARY DIFFERENTIAL BUSHING
REPLACEMENT
NOTE
If the differential is completely assembled, perform the
“Planetary Differential Disassembly” procedure.
Ring Gear Bushing Replacement
1. Press the old bushing out of the ring gear.
2. Thoroughly clean the bore of the ring gear and check
for any unwanted burs.
3. Press the new bushing into the ring gear housing.
