4. Attach the lower stabilizer bar link to the lower A-
arm. Torque new fastener to specification.
TORQUE
Stabilizer Link to Lower A-Arm:17 ft-lbs (23 Nm)
5. Attach the stabilizer bar to the frame. Torque
fasteners to specification.
TORQUE
Stabilizer Bar to Frame:17 ft-lbs (23 Nm)
6. Install wheel and torque wheel nuts to specification
(see Chapter 2).
WARNING
Upon A-arm installation completion, test vehicle at low
speeds before putting into service.
REAR LOWER A-ARM REMOVAL
1. Properly lift and support the vehicle by the frame.
2. Using a 13mm socket, remove the (4) nuts retaining
the rear stabilizer bar to the frame.

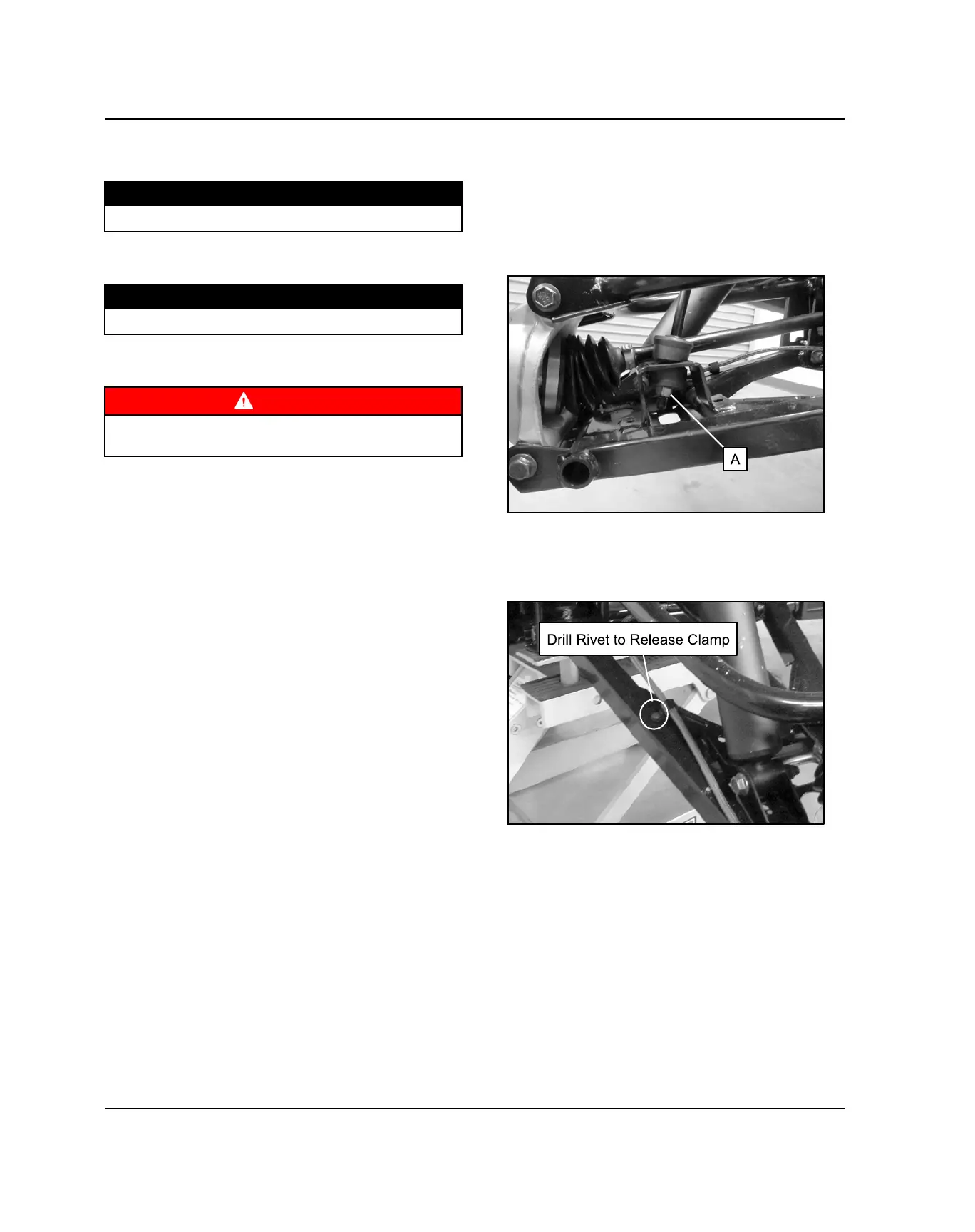

3. Using a 15mm wrench, remove the nut (A) from the
lower portion of the stabilizer bar link.
4. Remove the (4) wheel nuts and remove the wheel.
5. Drill out the rivet retaining the brake line clamp to the
lower A-arm.
6. Using a 15mm socket, remove the fastener (B)
retaining the lower portion of the rear shock to the
lower A-arm.
7. Remove the fastener retaining the lower A-arm to the
bearing carrier.
8. Remove the lower A-arm from the vehicle.
