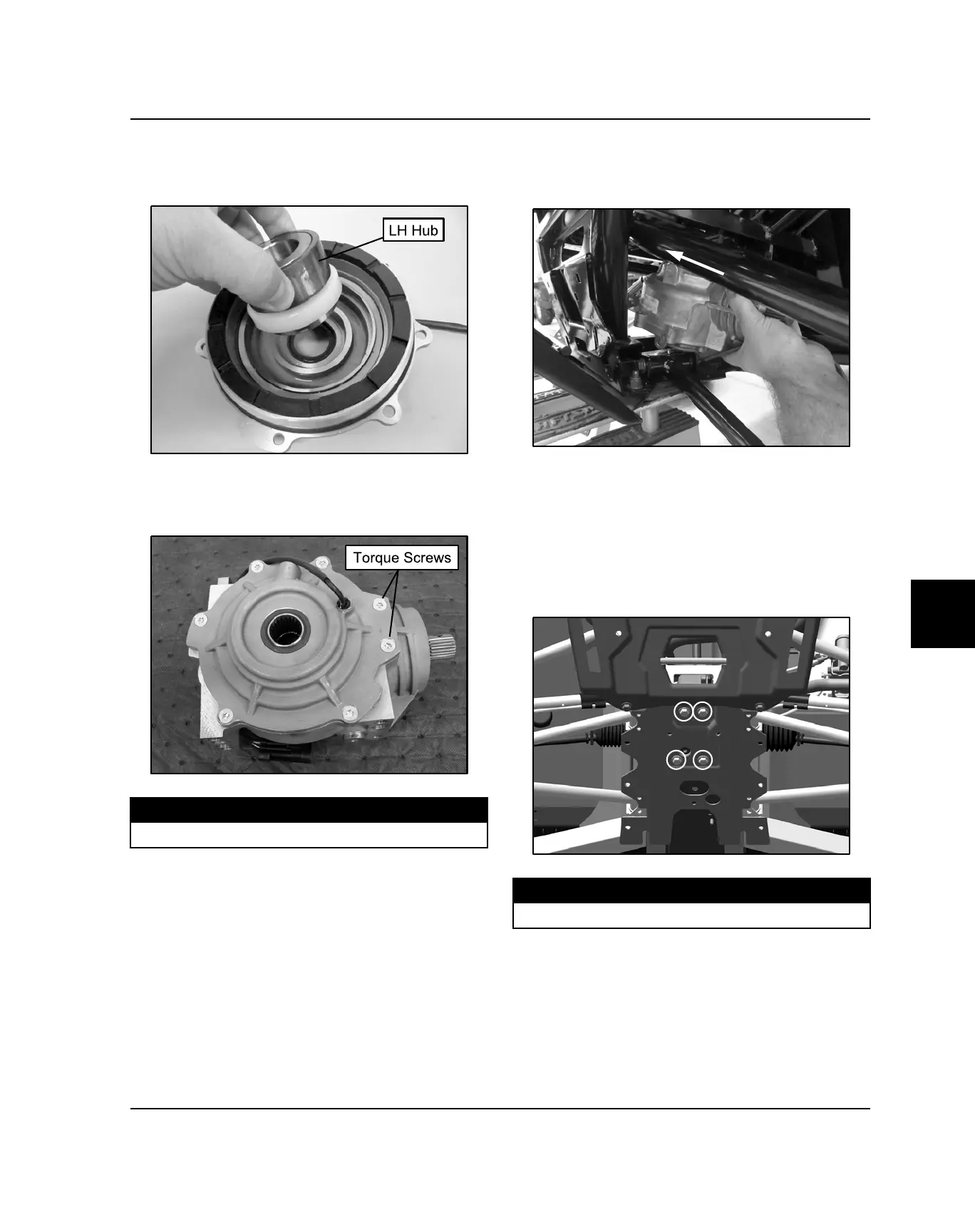

12. Carefully install the LH output hub assembly into the
cover plate. Take care not to damage the new cover
plate seal while installing the output hub.
13. Install the output cover assembly onto the gearcase
housing. Install the (7) cover plate screws and torque
to specification.
TORQUE
Cover Plate Screws:7-11 ft-lbs (10-15 Nm)
FRONT GEARCASE INSTALLATION
1. Install the gearcase between the left-hand upper and
lower control arms into the frame.
2. Install the vent line on the gearcase and ensure it’s
routed properly.
3. Install the left front lower control arm grease zerk
fitting.
4. Install the propshaft onto the front gearcase.
5. Install new gearcase mounting bolts and torque to
specification.
TORQUE
Front Gearcase Mounting Bolts:30 ft-lbs (41 Nm)
6. Drive a new roll pin into the front propshaft yoke.
7. Install the drive shafts into the front gearcase (see
“FRONT DRIVE SHAFT - Installation”).
FINAL DRIVE
