6.27

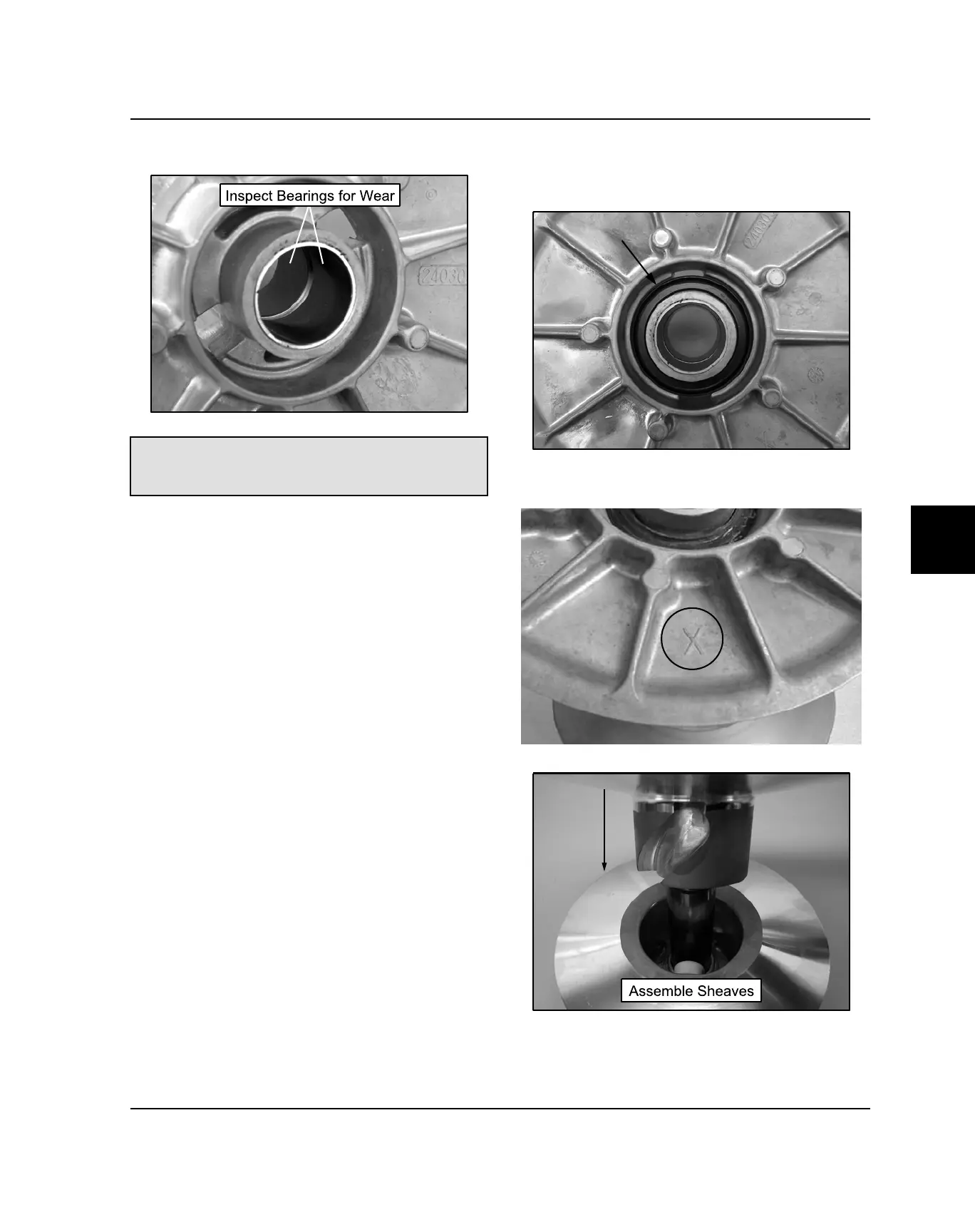

9. Inspect the bearings inside the moveable sheave.
Moveable Sheave Bearing Inspection:
Replace the clutch assembly if more brass than Teflon®
is visible on the bearing.
10. Inspect driven clutch sheave faces for wear or
damage.
11. Clean and inspect splines on helix and transmission
input shaft.
12. Lube splines with a light film of grease. Do not
lubricate the bearings!
CLUTCH ASSEMBLY
1. Install the inner spring retainer if removed. Do not
apply oil or grease to the bearings.
2. Align the “X” marks on each of the sheaves during
reassembly.
3. Install the spring into the inner retainer.
4. Install the spacer over the shaft.
CLUTCHING
