2.34
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
4. Install and tighten the red (positive) cable (C) first.
5. Install and tighten the black (negative) cable (B) last.
6. Verify the cables are properly routed and reinstall the
storage container and passenger seat.
CHASSIS / ENGINE ELECTRICAL GROUND
Inspect the ground cable connections. Remove ground
terminals and clean if necessary.

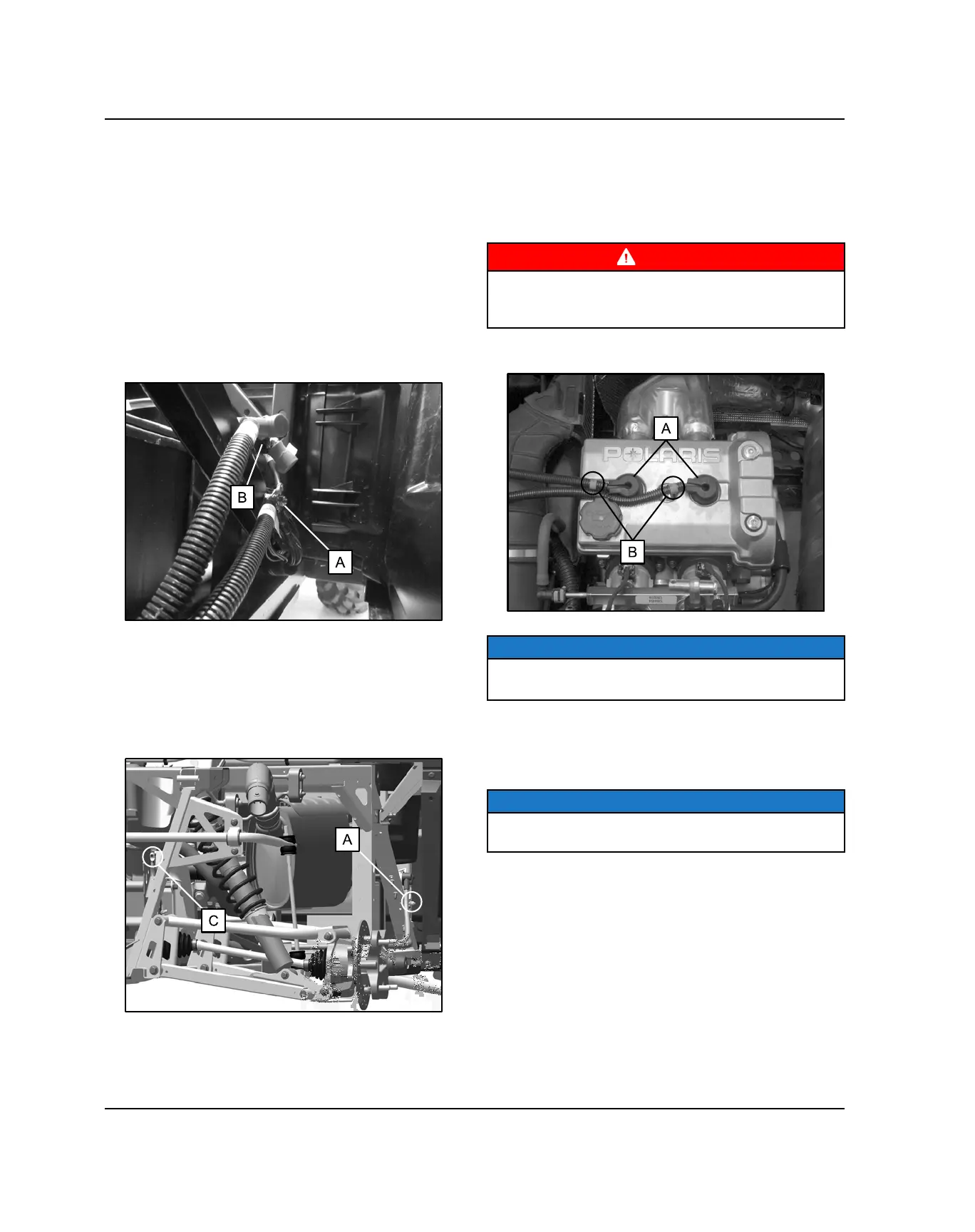

1. Remove the passenger seat base and storage bin to
access the chassis ground terminal (A), located
below the starter solenoid (B) to the right of the
battery.
2. Inspect the chassis ground terminals. Be sure they
are clean and tight.
3. Inspect the engine ground terminal (C), attached to
the upper starter mounting bolt. The other end of the
engine ground cable is attached to the chassis
ground terminal (A).
4. Inspect the engine ground terminals. Be sure they
are clean and tight.
SPARK PLUG SERVICE
Inspect and replace the spark plugs at the intervals
outlined in the Periodic Maintenance Chart.
1. Tilt the rear cargo box to access the top of the
engine.
WARNING
A hot engine can cause serious burns. Allow engine to
cool or wear protective gloves when removing the spark
plugs.
2. Remove both spark plug caps (A).
NOTE
Note MAG and PTO reference decals (B) on spark plug
wires for reassembly.
3. Clean out plug wells with compressed air to remove
any loose dirt or debris.
4. Rinse plug wells with water and dry with compressed
air.
NOTE
Spark plug wells have drain holes built into the cylinder
head to allow water to drain out.
5. Remove spark plugs using a 5/8” spark plug socket
with an extension.
MAINTENANCE
