7.26
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
REAR DRIVE SHAFT
REMOVAL
1. Follow steps 1-6 of “REAR BEARING CARRIER -
Removal” procedure.

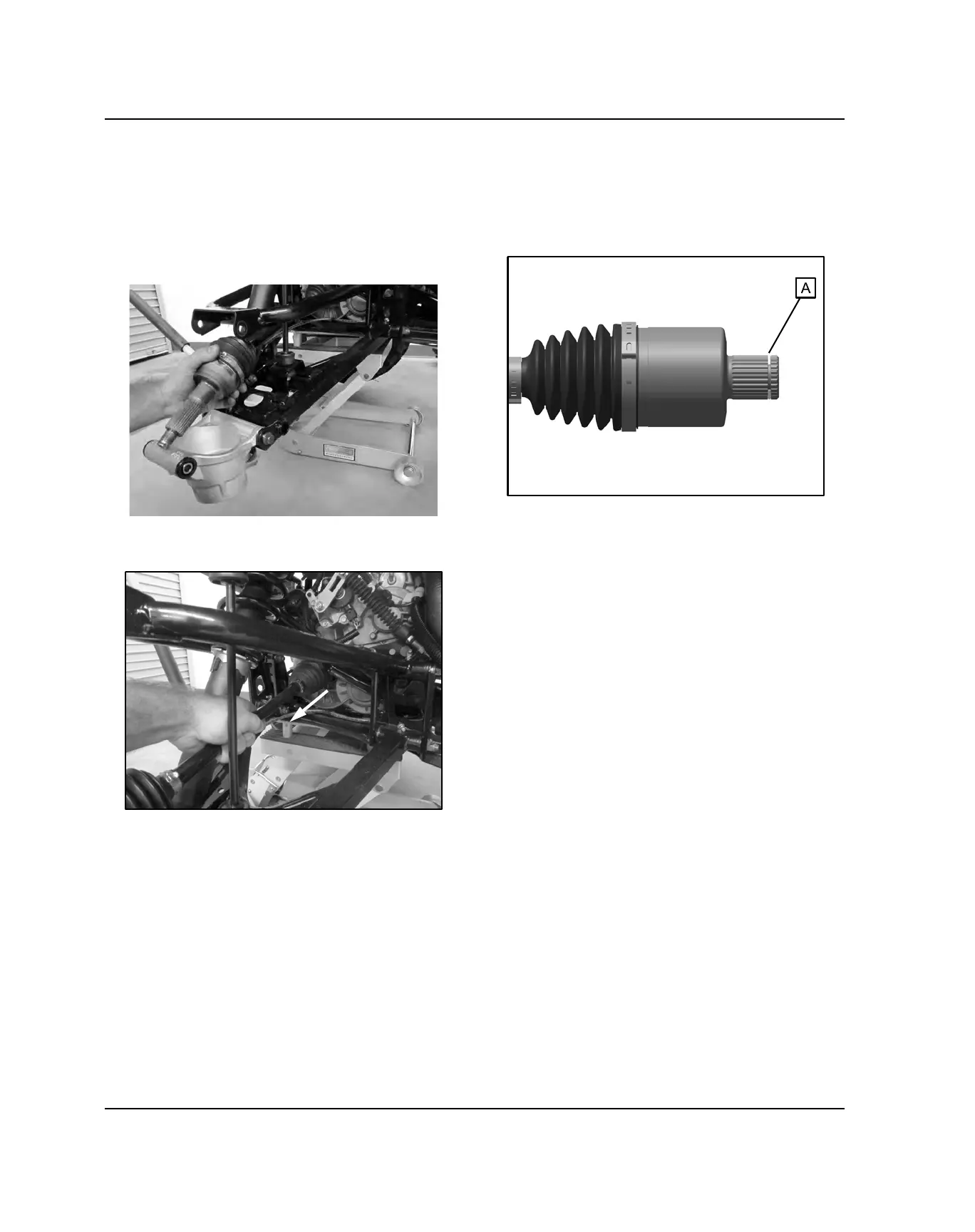

2. Remove the upper bearing carrier fastener and tilt
the carrier down while removing the end of the
driveshaft.
3. With a short, sharp jerk, remove drive shaft from the
transmission.
4. Refer to the “DRIVE SHAFT SERVICE” section if
repairing the drive shaft.
INSTALLATION
1. Install a new spring ring (A) on the end of the drive
shaft if not replacing the drive shaft assembly. Apply
an anti-seize compound to the splines.
2. Align splines of the drive shaft with the transmission
and reinstall the drive shaft. Use a rubber mallet to
tap on the outboard end of the drive shaft if
necessary.
3. Insert the drive shaft into the bearing carrier and tilt
the carrier up.
4. Install the upper bearing carrier fastener.
5. Refer to “REAR BEARING CARRIER - Installation”
procedure to reassemble the vehicle.
FINAL DRIVE
