9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
4.43

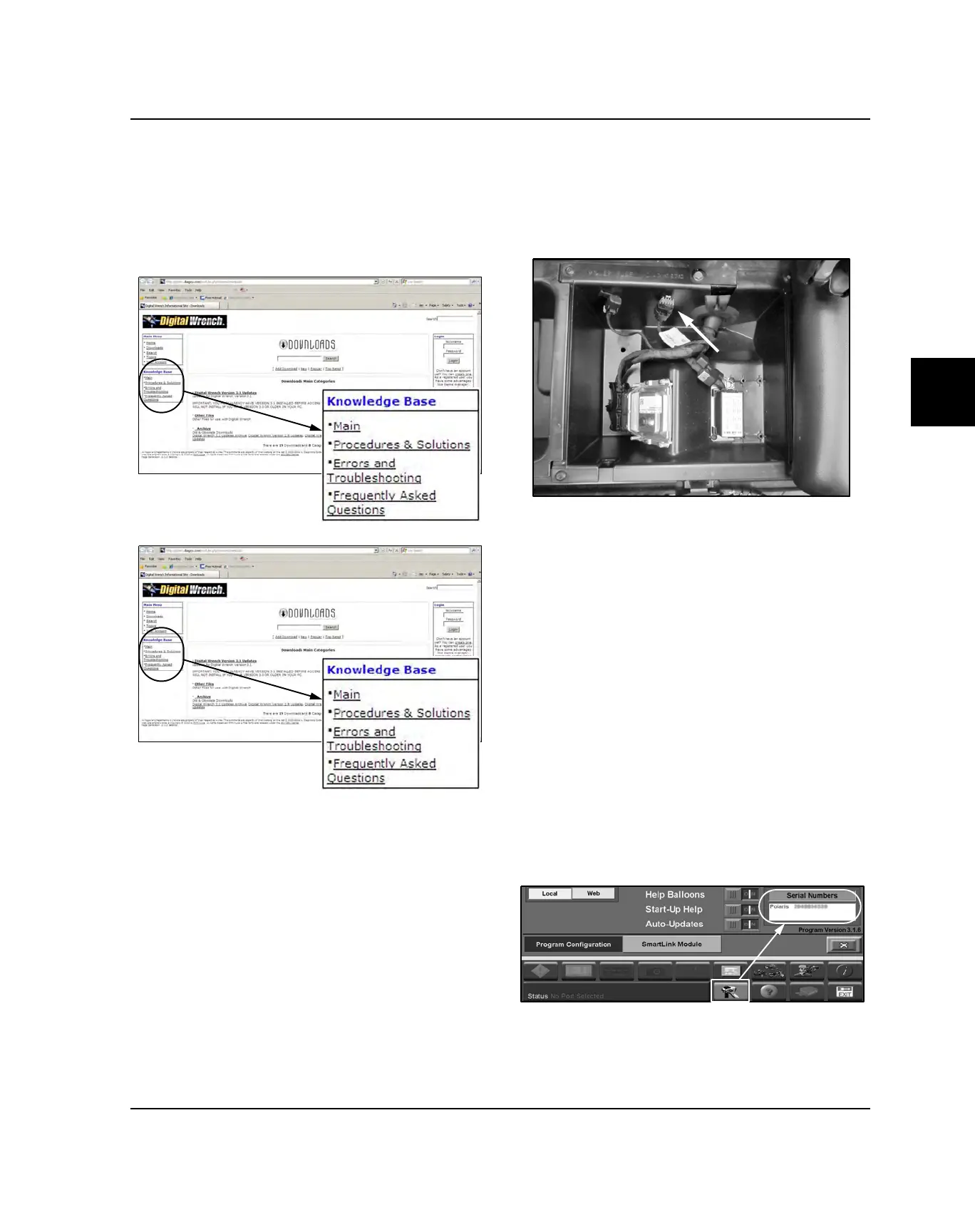

DIGITAL WRENCH® COMMUNICATION
ERRORS
If you experience problems connecting to a vehicle or
any Digital Wrench® related problem, visit the Digital
Wrench® Knowledge Base for the most current
troubleshooting information, FAQs, downloads and
software updates at: http://polaris.diagsys.com/.
DIGITAL WRENCH® - DIAGNOSTIC
CONNECTOR
The diagnostic connector is located under the passenger
seat connected to a sealed plug. To access the
diagnostic connector on 2 seat models with a center
console the center console must be removed.
Follow these steps to connect the diagnostic interface
cable to the vehicle to allow Digital Wrench® use:
1. Assemble the SmartLink Module and attach the PC
Interface Cable to your laptop (see page 4.3).
2. Remove the protective cap from the Digital Wrench®
connector.
3. Connect the Vehicle Interface Cable to the Digital
Wrench® diagnostic connector.
4. Turn the ignition key to the ‘ON’ position, select the
appropriate vehicle and wait for the status to display
‘Connected’ in the lower left corner of the screen.
5. Once connected, proceed with using Digital
Wrench®.
DIGITAL WRENCH® SERIAL NUMBER
LOCATION
Open the configuration screen by clicking on the wrench
icon. The serial number is located on the right side of the
screen.
FUEL SYSTEM - GENERAL
