GENERAL VEHICLE INSPECTION AND MAINTENANCE
PRE-RIDE / DAILY INSPECTION
Perform the following pre-ride inspection daily, and when
servicing the vehicle at each scheduled maintenance.
• Engine Oil - Check for proper level on dipstick (refer to
“Engine Oil Level” procedure)
• Tires - check condition and pressures
• Fuel tank - fill to proper level
• All brakes - check operation, fluid level and adjustment
• Throttle Pedal - check for proper operation
• Headlights/Taillights/Brakelights - check operation of
all indicator lights, instrument cluster and switches
• Ignition switch - check for proper function
• Wheels - check for tightness of wheel nuts and axle
nuts; check to be sure axle nuts are secured by cotter
pins
• Air Filter - inspect filter element condition; replace if
necessary
• Intake Pre-Filter Screens - Inspect both screens and
clean with warm soapy water and low pressure
compressed air if necessary
• Steering - check for free operation noting any unusual
looseness in any area
• Loose parts - visually inspect vehicle for any damaged
or loose nuts, bolts or fasteners
• Engine coolant - check for proper level at the recovery
bottle
• Drive Shaft Boots - Inspect inner and outer boots for
tears or damage on both front and rear drive shafts
• Check all suspension components for wear or damage
FRAME, NUTS, BOLTS, AND FASTENERS
Periodically inspect the torque of all fasteners in
accordance with the maintenance schedule. Check that
all cotter pins are in place. Refer to specific fastener
torques listed in each chapter.
SHIFT CABLE INSPECTION / ADJUSTMENT
Shift cable adjustment may be necessary if symptoms
include:
• No gear position or AWD display on instrument cluster
• Ratcheting noise on deceleration
• Inability to engage into a gear
• Excessive gear lash (noise)
• Gear selector moving out of desired range

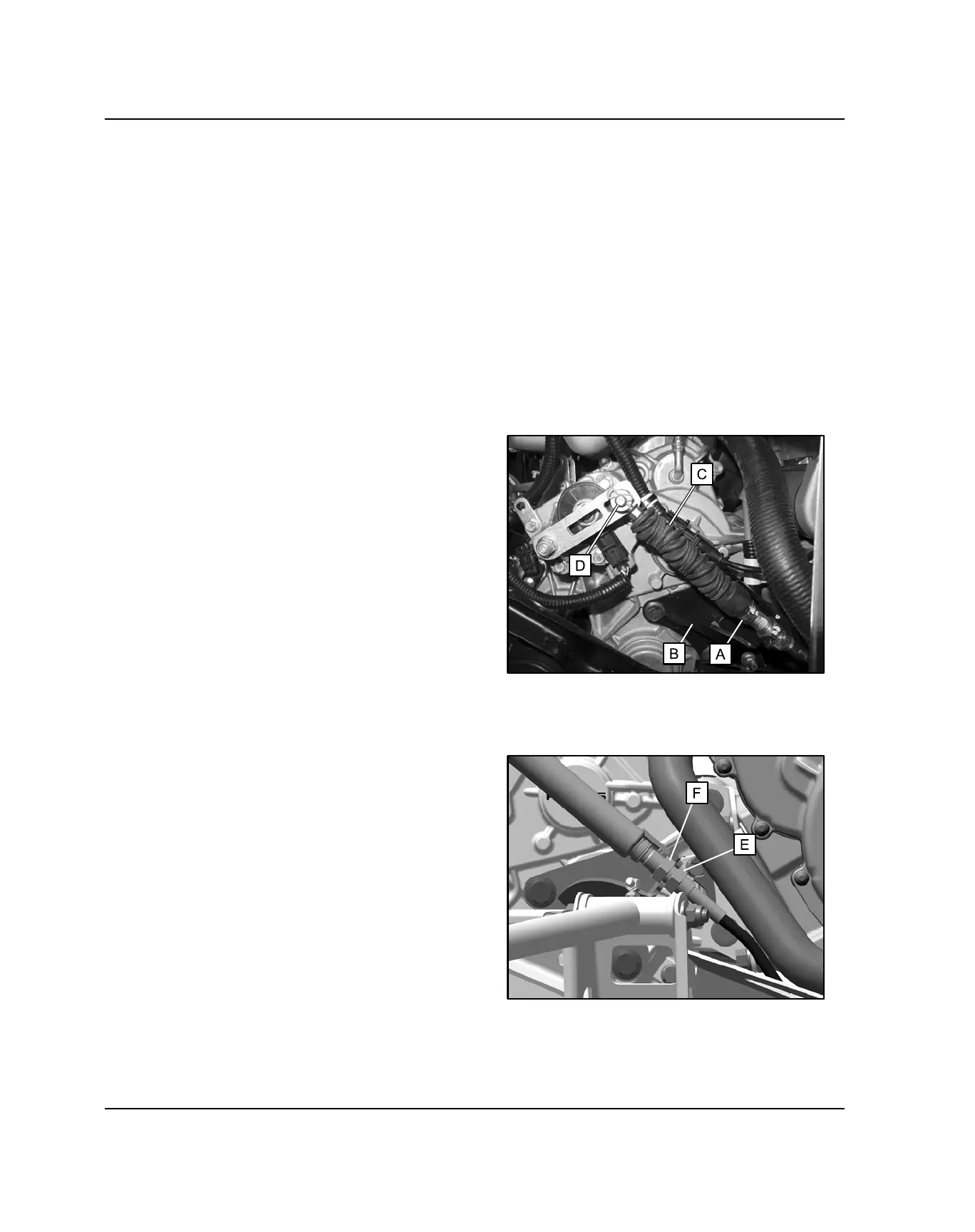

1. Locate the shift cable (A) attached to the mount
bracket (B) and transmission in the right rear wheel
well area.
2. Inspect shift cable (A), dust boot (C) and the clevis
pin and pivot bushings (D). Replace if worn or
damaged.
3. If adjustment is required, loosen the lower jam nut
(E) and pull the cable out of the mount bracket to
move the upper jam nut (F).
4. Adjust the shift cable so there is the same amount of
cable travel when shifting slightly past HIGH gear
and PARK.
