9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
10.7
VEHICLE SPEED SENSOR

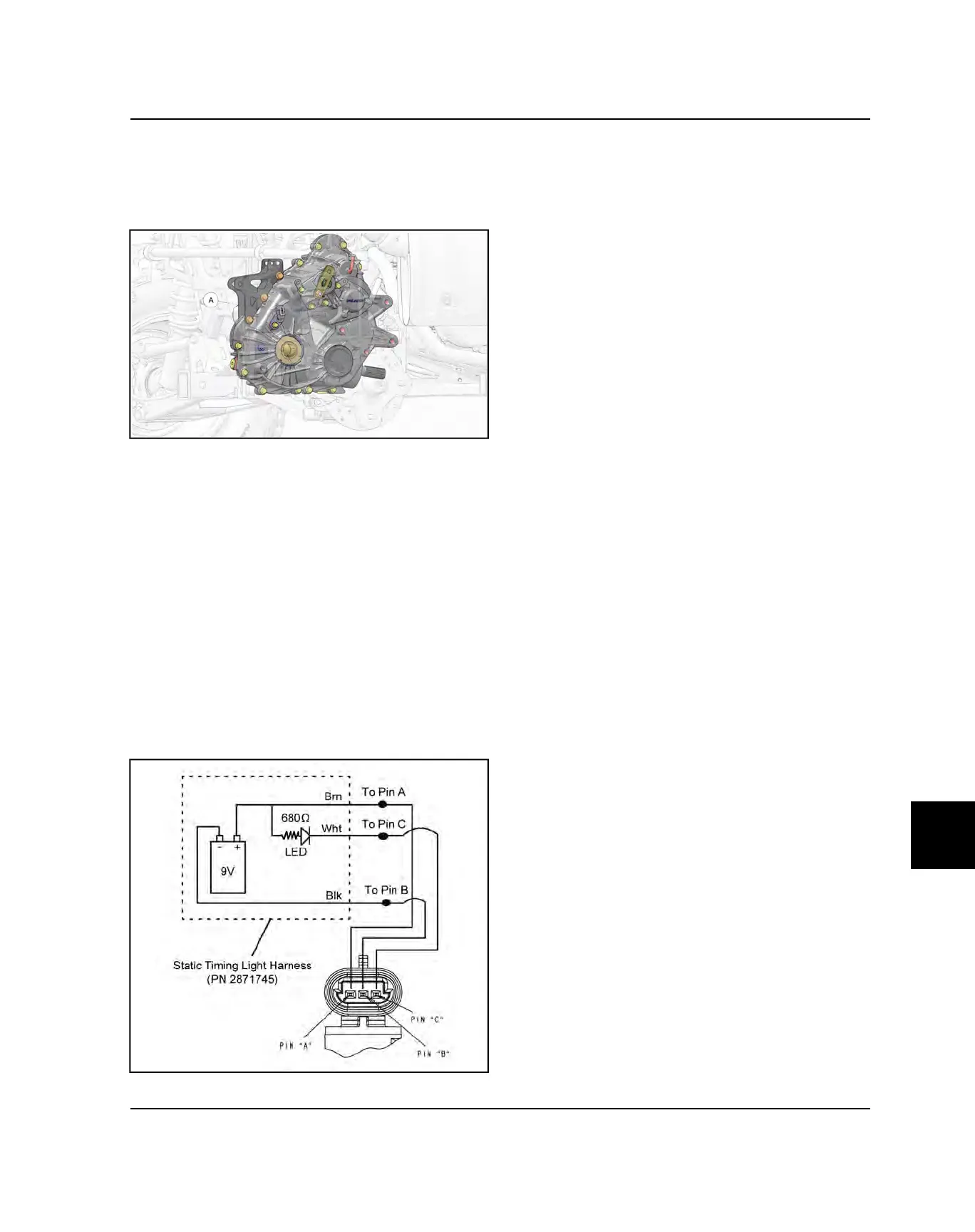

SPEED SENSOR LOCATION
The speed sensor (A) is located on the ride side of the
transmission, accessed through the right rear wheel well.
SPEED SENSOR TESTING
Special Tools Required:
Static Timing Light Harness (PN 2871745)
Hall Sensor Probe Harness (PN 2460761)
1. Disconnect the 3 wire harness from the speed
sensor and remove the sensor from the
transmission.
2. Connect the wires from the Static Timing Light
Harness to the sensor 3 pin connector using the Hall
Sensor Probe Harness (PN 2460761).
3. Pass a screwdriver back and forth in front of the
sensor tip.
4. Be sure connections are good and 9V battery is in
good condition. If the light flashes, the sensor is
good.
ELECTRICAL
