9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
9.23

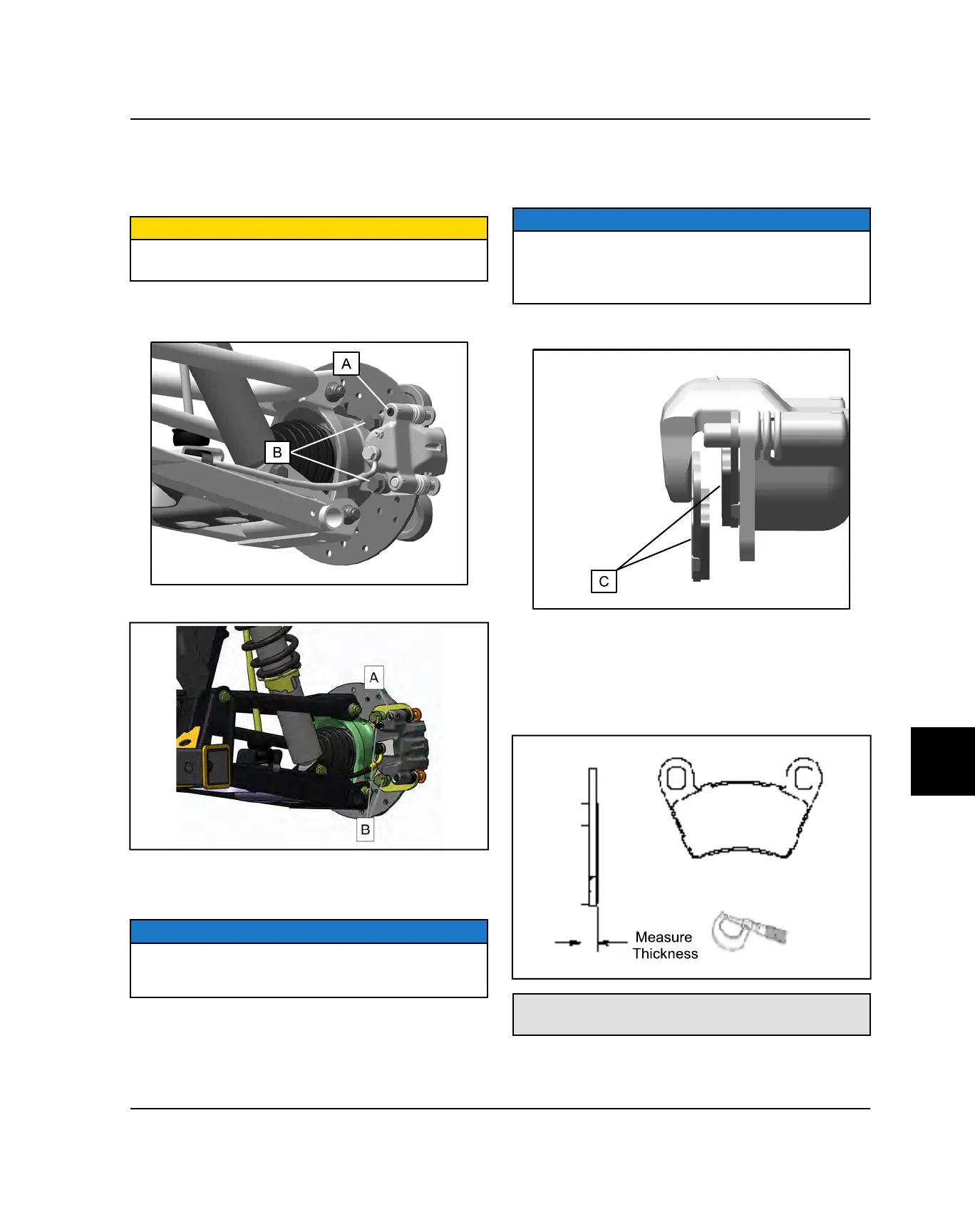

REAR BRAKE PADS
PAD REMOVAL
1. Elevate and support rear of machine.
CAUTION
Use care when supporting vehicle so that it does not tip
or fall. Severe injury may occur if machine tips or falls.
2. Remove the rear wheel. Loosen the pad adjuster
screw (A) 2-3 turns.
2014 RANGER CREW 900
3. Clean caliper area before removal.
4. Remove caliper mounting bolts (B) and lift caliper off
of disc.
NOTE
When removing caliper, be careful not to damage brake
line. Support caliper so as not to kink or bend brake
line.
5. Push caliper piston into caliper bore slowly with pads
installed.
NOTE
Brake fluid will be forced through compensating port
into master cylinder fluid reservoir when piston is
pushed back into caliper. Remove excess fluid from
reservoir as required.
6. Remove the brake pads (C) from the caliper.
PAD INSPECTION
1. Clean the caliper with brake cleaner or alcohol.
2. Measure the thickness of the pad material. Replace
pads if worn beyond the service limit.
Rear Brake Pad ThicknessNew .298 + .007” (7.56 +
.178 mm)Service Limit .180” (4.6 mm)
BRAKES
