9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
5.39
BALL JOINT SERVICE
SERVICE PREPARATION
NOTE
Do not reuse a ball joint if it has been removed. If
removed, it must be replaced. Use this removal
procedure only when replacing the ball joint.

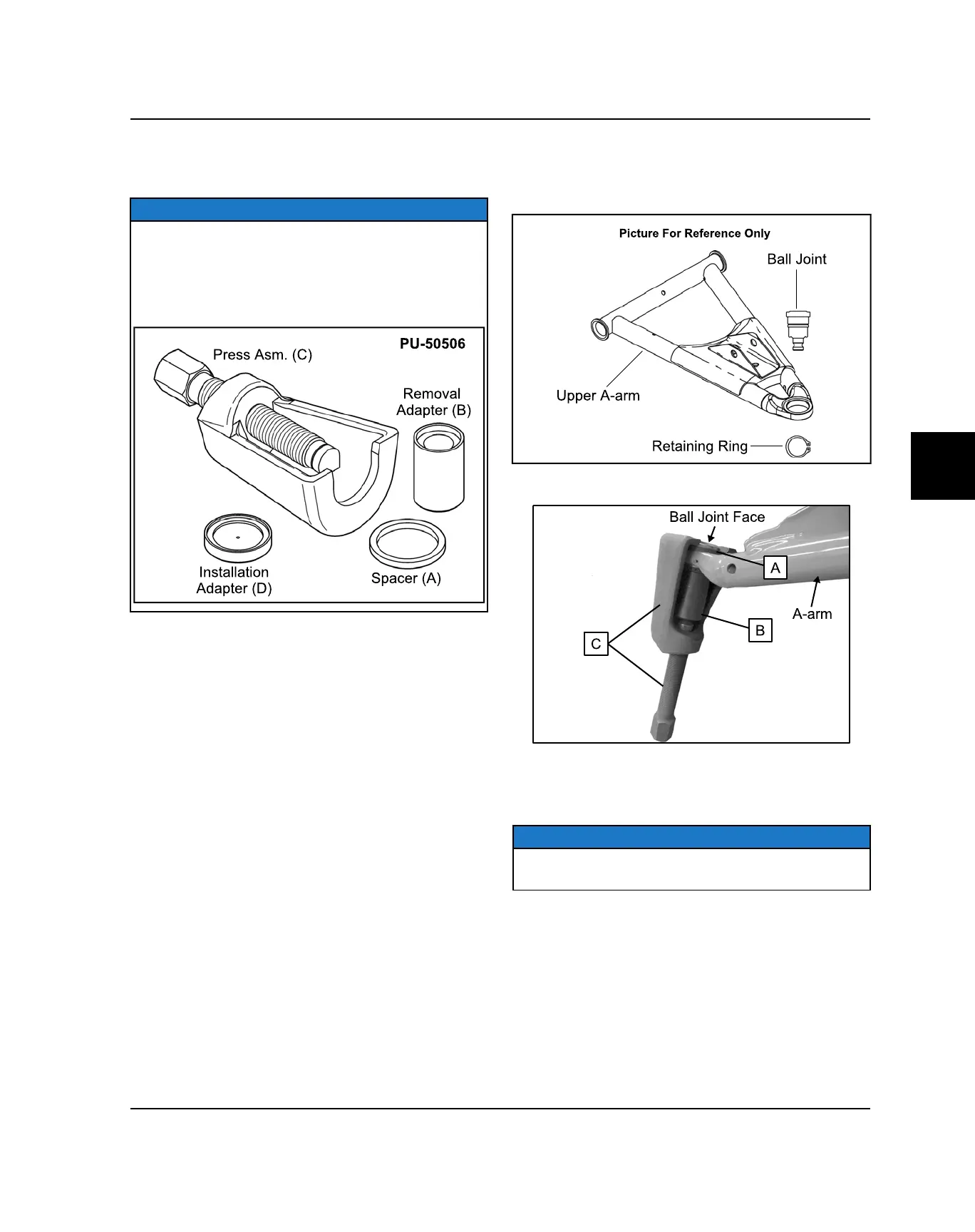

Ball joint tool PU-50506 will allow the upper and lower
ball joints to be replaced with the A-arm installed on the
vehicle.
The A-arm does not need to be removed to perform this
procedure if ball joint tool PU-50506 is used.
1. Properly lift and support the vehicle by the frame.
2. Remove the appropriate front wheel.
3. To service the upper ball joint:
4. Remove and discard the two front brake caliper
mounting bolts and remove the caliper from the
brake disc (see “Brakes” chapter).
5. Remove and discard the upper ball joint pinch bolt.
6. If necessary, remove the lower front shock fastener
from the A-arm to gain enough clearance to install
ball joint tool (PU-50506) on the upper ball joint.
7. To service the lower ball joint:
8. Remove and discard the lower ball joint pinch bolt.
9. If necessary, remove the lower front shock fastener
from the A-arm to gain enough clearance to install
ball joint tool (PU-50506) on the lower ball joint.
BALL JOINT REMOVAL
1. Remove the retaining ring from the ball joint.
2. Install Spacer (A) over the top of the ball joint face.
3. Place Removal Adaptor (B) over the ball joint shaft.
4. Install the Press Asm. (C) onto the A-arm to engage
the ball joint Removal Adapter.
NOTE
Be sure the Press Asm. opening is only contacting the
Spacer (A) and not the ball joint face.
BODY / STEERING / SUSPENSION
