7
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
7.11
ASSEMBLY

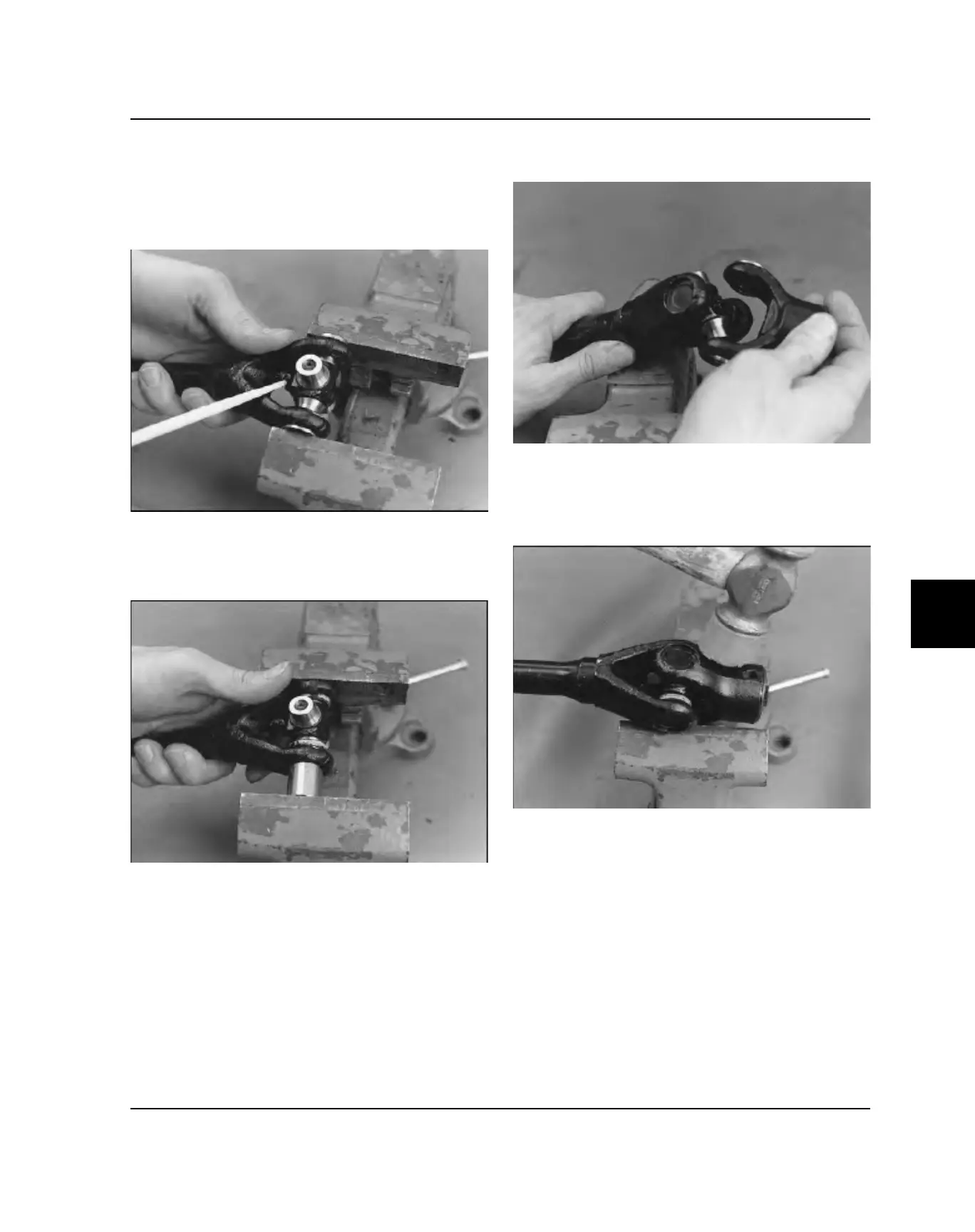

1. Install new bearing caps in yoke by hand. Carefully
install U-joint cross with grease fitting properly
positioned inward toward center of shaft. Take care
not to dislodge needle bearings upon installation of
cross joint. Tighten vise to force bearing caps in.
2. Using a suitable arbor, fully seat bearing cap in one
side.
3. Continually check for free movement of bearing
cross as bearing caps are assembled.
4. Install snap ring to contain bearing cap just installed.
Repeat procedure for other side.
5. Install outer yoke, aligning marks made before
disassembly.
6. Repeat Steps 1-4 to install bearing caps on outer
yoke.
7. Seat all bearing caps against snap rings by
supporting cross shaft and tapping on each corner
as shown.
8. When installation is complete, yokes must pivot
freely in all directions without binding. If the joint is
stiff or binding, tap the yoke lightly to center the joint
until it pivots freely in all directions.
FINAL DRIVE
