3.30
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.

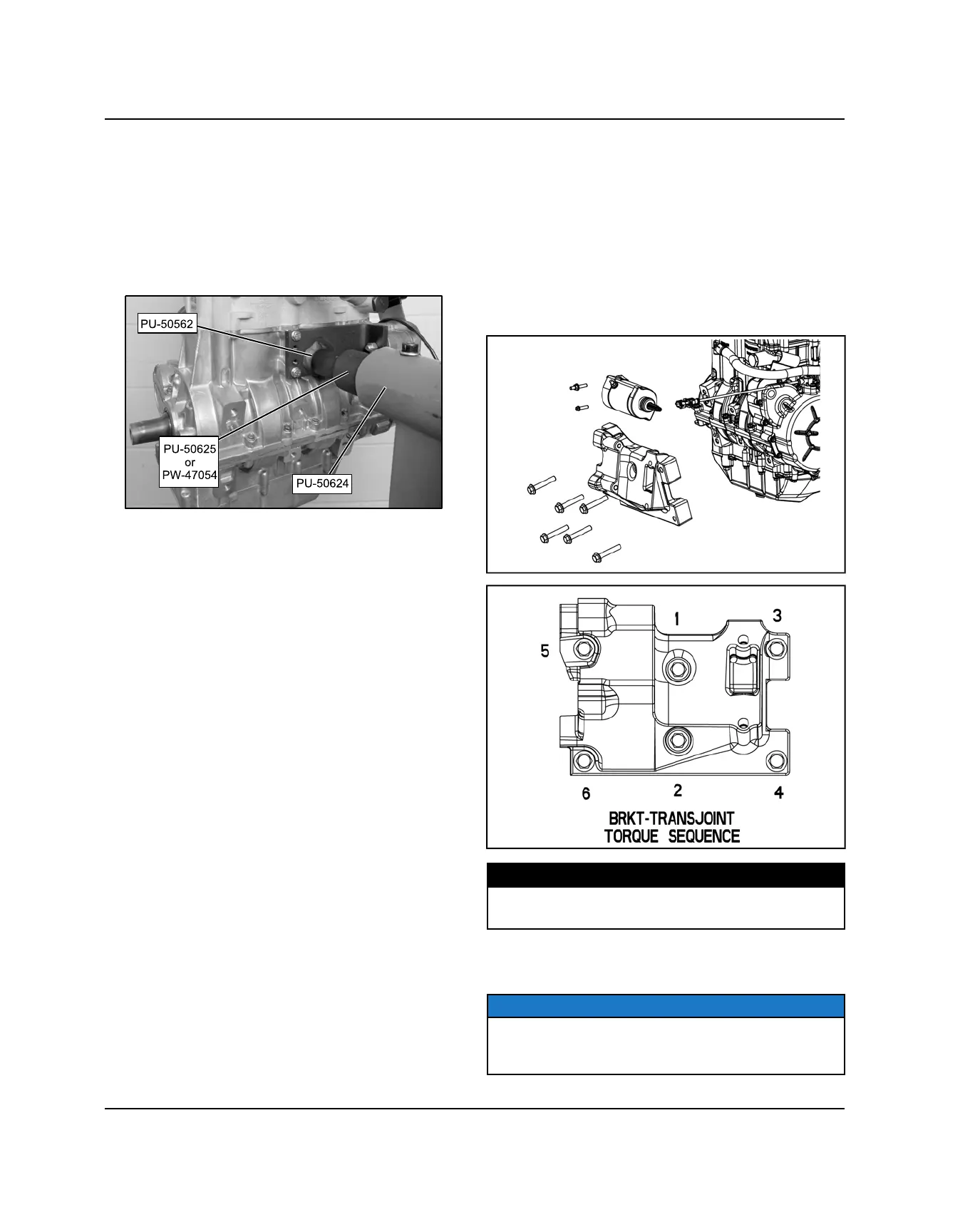

25. Select the proper engine stand sleeve adapter and
install it onto the engine stand adapter.
• Sleeve adapter for a 2” bore engine stand:
• (PU-50625)
• Sleeve adapter for a 2.375” bore engine stand:
• (PW-47054)
26. Place engine onto the engine stand (PU- 50624) for
service.
ENGINE INSTALLATION
Use the following procedure to reinstall the engine
assembly.
1. Attach engine with suitable lifting straps to an
overhead or portable engine hoist.
2. Remove the engine stand adapter plate and install
the starter motor back onto engine. Torque starter
motor bolts to specification.
3. Install transmission joint bracket onto engine and
torque fasteners to specification in sequence.
TORQUE
Starter Motor Bolts: 7 ft-lbs (10 Nm)Trans Joint Bracket
Bolts: 44 ft-lbs (60 Nm)
4. Use the overhead or portable engine hoist and
suitable engine straps to lower the engine into the
vehicle frame.
NOTE
Have an assistant help guide the engine in and out of
the vehicle while using an engine hoist to prevent
personal injury or damage to vehicle components.
