9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
5.25

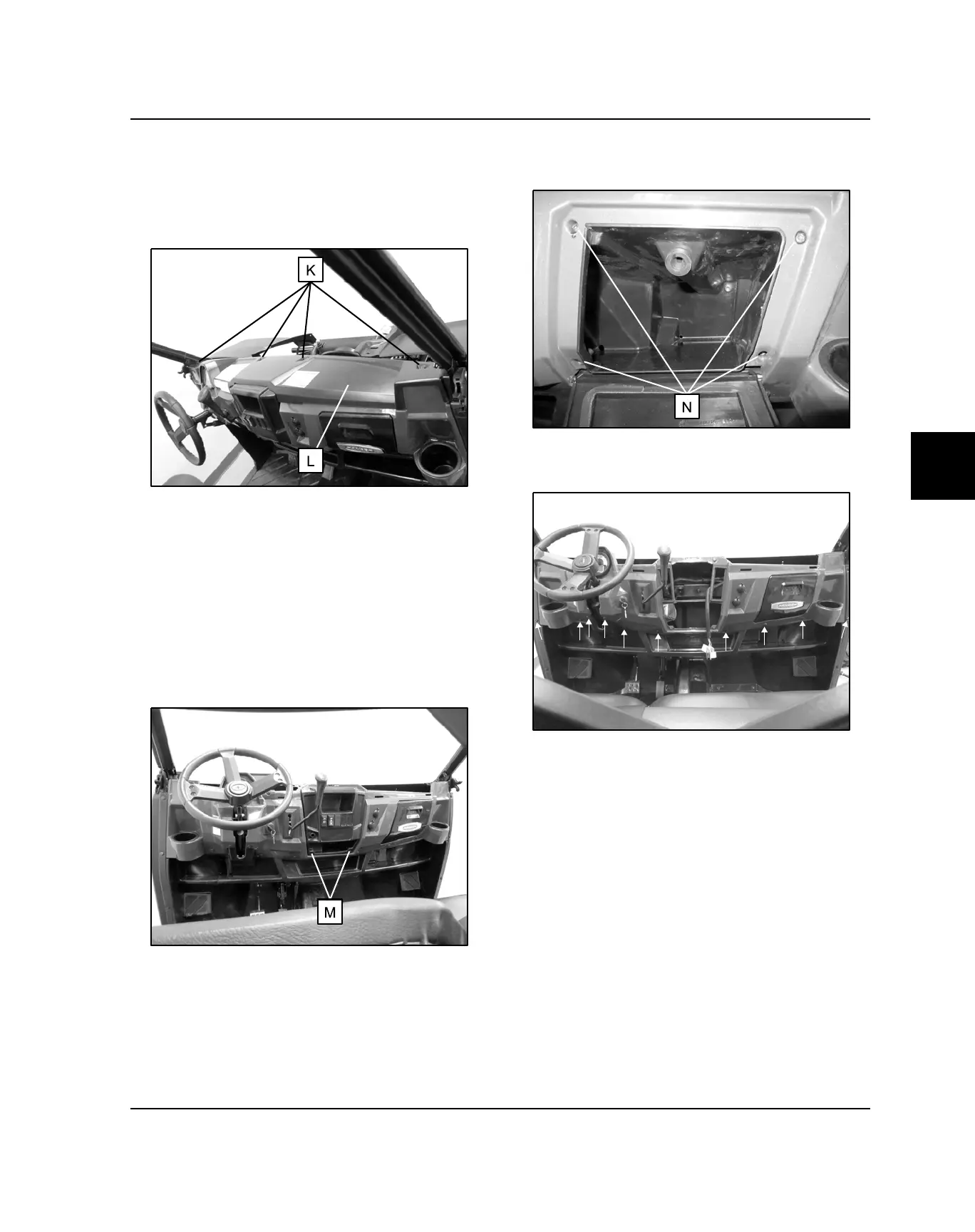

DASH PANELS / GLOVE BOX REMOVAL
Upper Dash Panel
1. Remove the (4) push rivets (K) from the upper dash
panel (L) and pull the panel towards the seats to
release the front tabs.
Lower Dash Panel
2. Disconnect the ignition, headlight and AWD
switches, instrument cluster, and both 12V power
points on the control dash panel.
3. Pop the shifter cap off and remove the T-25 Torx-
head screw and pull up on the shifter grip to remove
it.
4. Remove the (2) T-25 Torx-head screws (M) retaining
the bottom of the control dash panel and remove the
panel.
5. Open the glove box and remove the (4) T-25 Torx-
head screws (N).
6. Remove the (10) T-40 Torx-head screws retaining
the bottom of the lower dash.
7. Remove the (5) push rivets; one from each side of
the lower dash, two that were hidden behind the
control dash panel and one to the right of the
instrument cluster.
8. Tilt the steering wheel to its lowest position and put
the gear selector in Low or High gear to ease
removal.
9. Carefully pull the lower dash panel towards the seat
and up to remove it.
Dash Storage Panel
10. Remove the (4) T-25 Torx-head screws along the
bottom of the dash storage panel and the (1) T-40
Torx-head screw inside the glove box in the back.
11. Carefully remove the dash storage panel.
ROCKER PANELS
1. Remove the seat bottom and under seat storage
box.
BODY / STEERING / SUSPENSION
