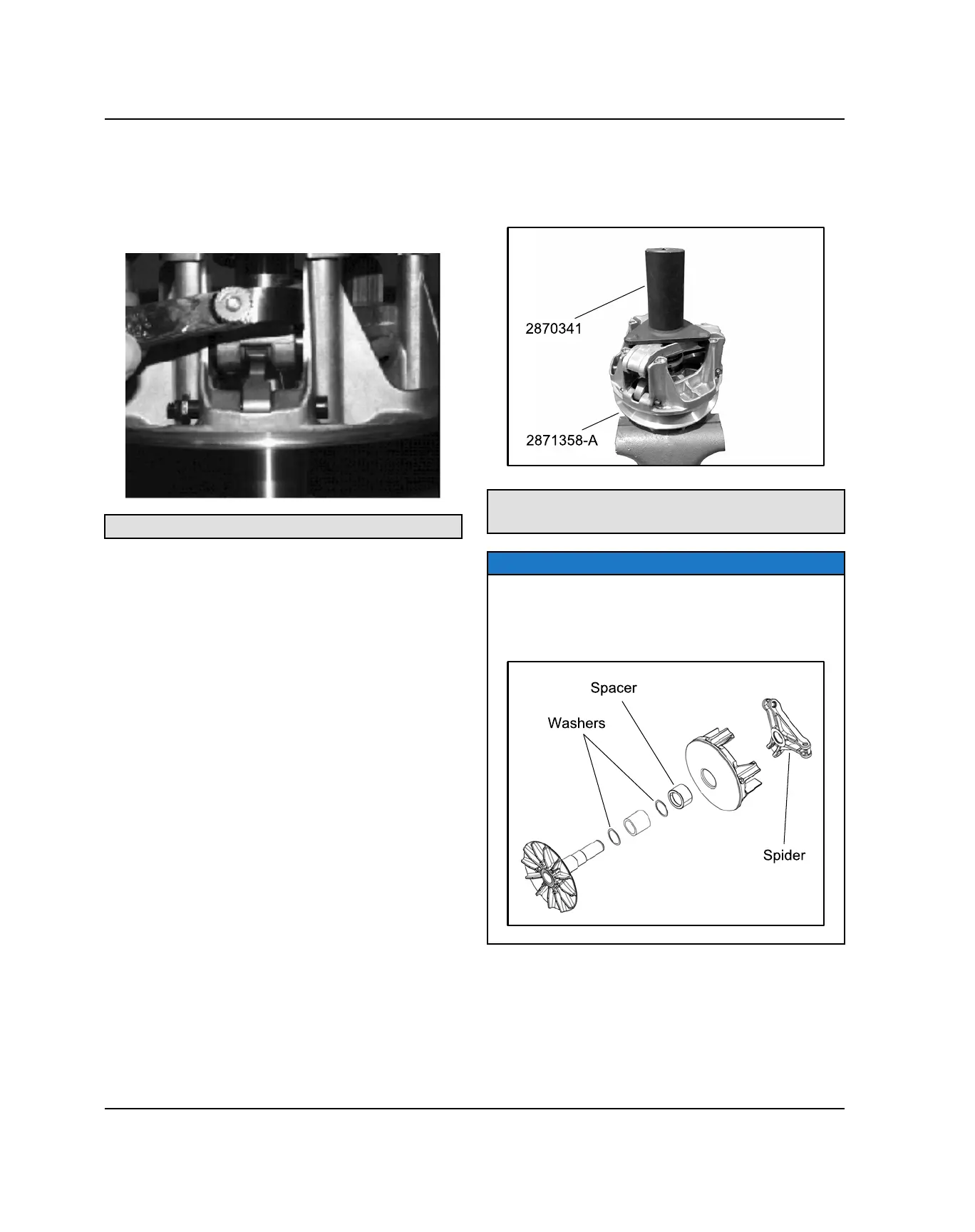

BUTTON TO TOWER CLEARANCE
INSPECTION
1. Inspect for any clearance between spider button to
tower. If clearance exceeds specification, replace all
buttons and inspect surface of towers. See “Spider
Removal” procedure.
Button to Tower Clearance:000-.005”
2. Inspect sheave surfaces. Replace the entire clutch if
worn, damaged or cracked.
SPIDER REMOVAL
1. Install clutch in holding fixture (PN 2871358-A) and
loosen the spider (counterclockwise) using Clutch
Spider Removal Tool (PN 2870341).
Clutch Holding Fixture: (PN 2871358-A)
Spider Removal Tool: (PN 2870341)
NOTE
To maintain proper clutch balance and belt-to-sheave
clearance, be sure to reinstall the original quantity and
thickness of washers/spacers beneath the spider during
assembly.
CLUTCHING
