9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
10.17
AUDIO SYSTEM (LE ONLY)
For Instructions on how to use the audio system on this
vehicle, consult the booklet included with the vehicle.
ALL WHEEL DRIVE COILS
OPERATION OVERVIEW
• When the AWD switch is “ON”, 12 VDC power is
present at the hub coil.
• When the AWD switch is “ON”, and if the criteria is
met, the Engine Controller provides a ground path
(brown/white wire). When this occurs the AWD icon
should display in the instrument cluster.
• The AWD system must be grounded to operate.
DIAGNOSING SYSTEM FAILURES
1. Verify AWD switch is functional and that a minimum
of 11 volts is present at the hub coil.

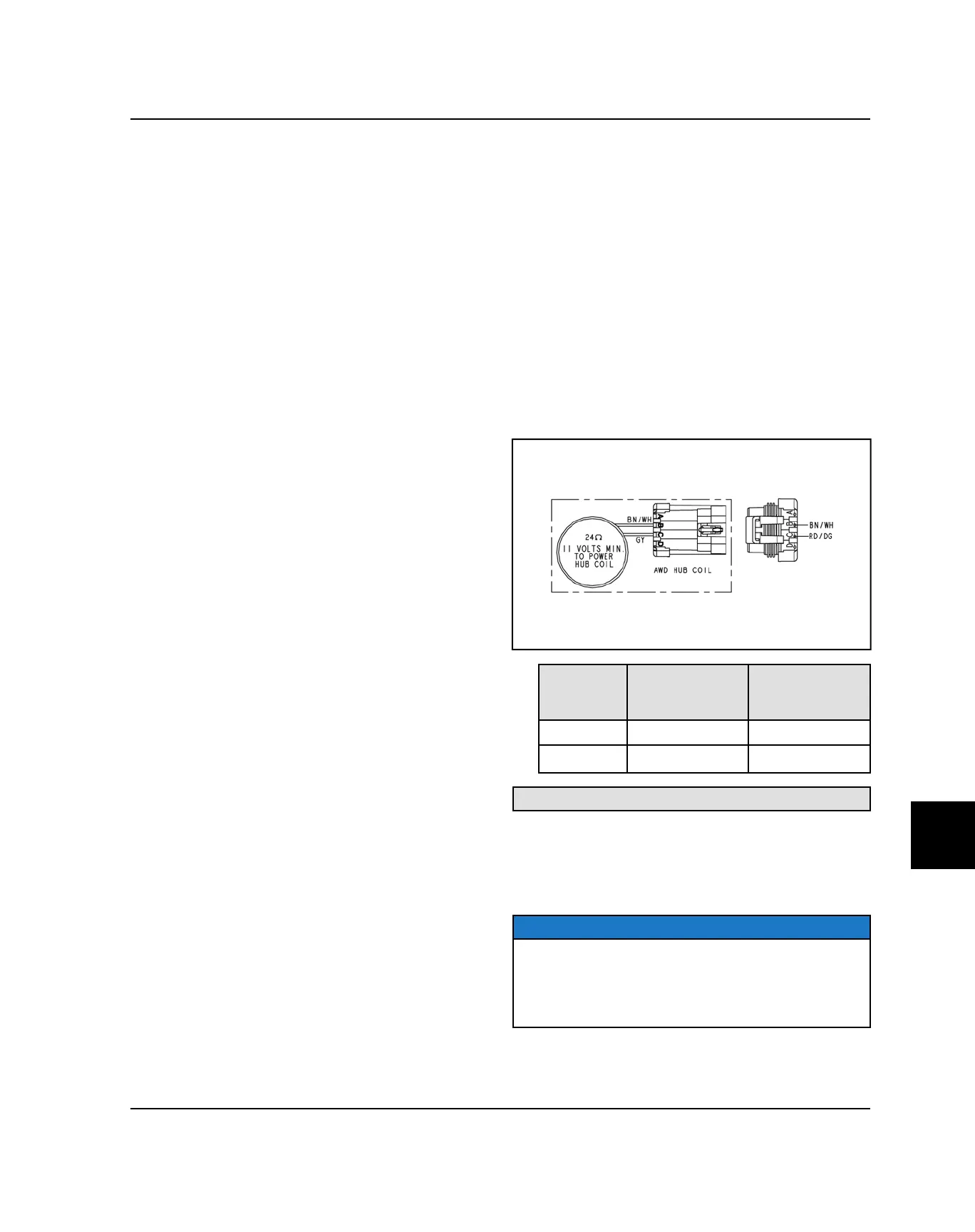

2. Verify AWD hub coil is functional. Test the AWD hub
coil using an ohm meter. See specifications below:
TEST
CONNECT
METER LEADS
TO:
OHMS
READING
AWD Coil GY to BN/WH
~ 24 Ω
AWD Coil GY to Ground
Open Line (OL)
AWD Hub Coil Resistance:24 Ω ± 5%
3. Verify the wiring harness, wiring, connectors,
connector pins and grounds are undamaged, clean
and connected properly.
4. Verify continuity of wire connections with a volt/ohm
meter.
NOTE
Verify all wires and wiring connections have been
tested properly with a known good volt/ohm meter
before suspecting a component failure. 80% of all
electrical issues are caused by bad/failed connections
and grounds.
ELECTRICAL
