TAIL LIGHT / BRAKE LIGHT
LED LAMP REPLACEMENT

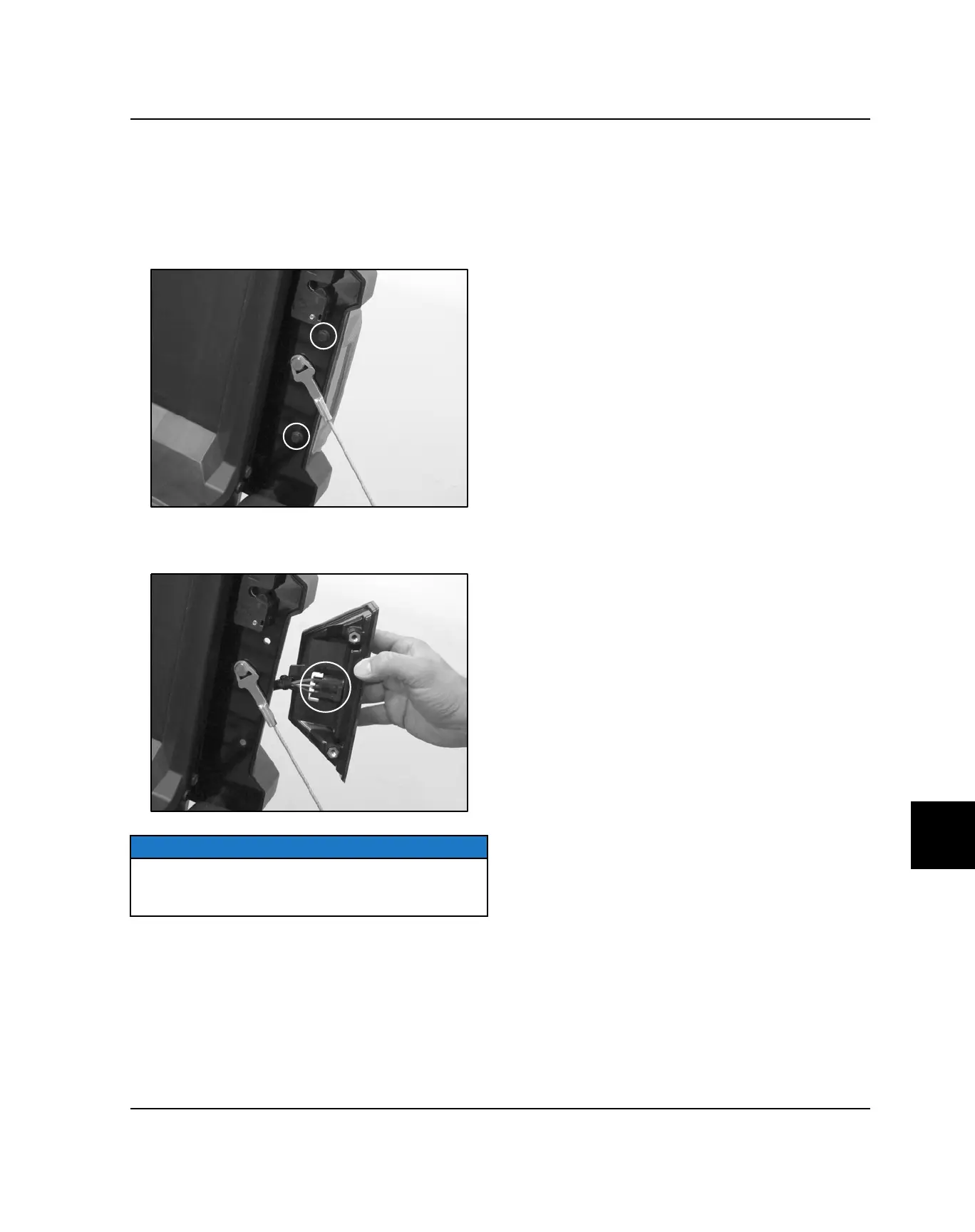

1. Open the rear tailgate.
2. Remove the (2) screws retaining the LED lamp
assembly.
3. Remove the LED lamp from the rear cargo box and
disconnect the tail light / brake light wire harness.
NOTE
Before replacing the LED lamp assembly, use a digital
multi-meter to test the harness to ensure the lamp is
receiving 12 volts and that a ground path is present.
4. Install the new LED lamp assembly by reversing this
procedure.
5. Test the tail light / brake light after installation to
verify proper function.
