8
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
8.5
SHIFT CABLE
INSPECTION
Shift cable adjustment may be necessary if symptoms
include:
• No gear position or AWD display on instrument cluster
• Ratcheting noise on deceleration
• Inability to engage into a gear
• Excessive gear lash (noise)
• Gear selector moving out of desired range
Inspect shift cable, clevis pins, and pivot bushings and
replace if worn or damaged.
ADJUSTMENT

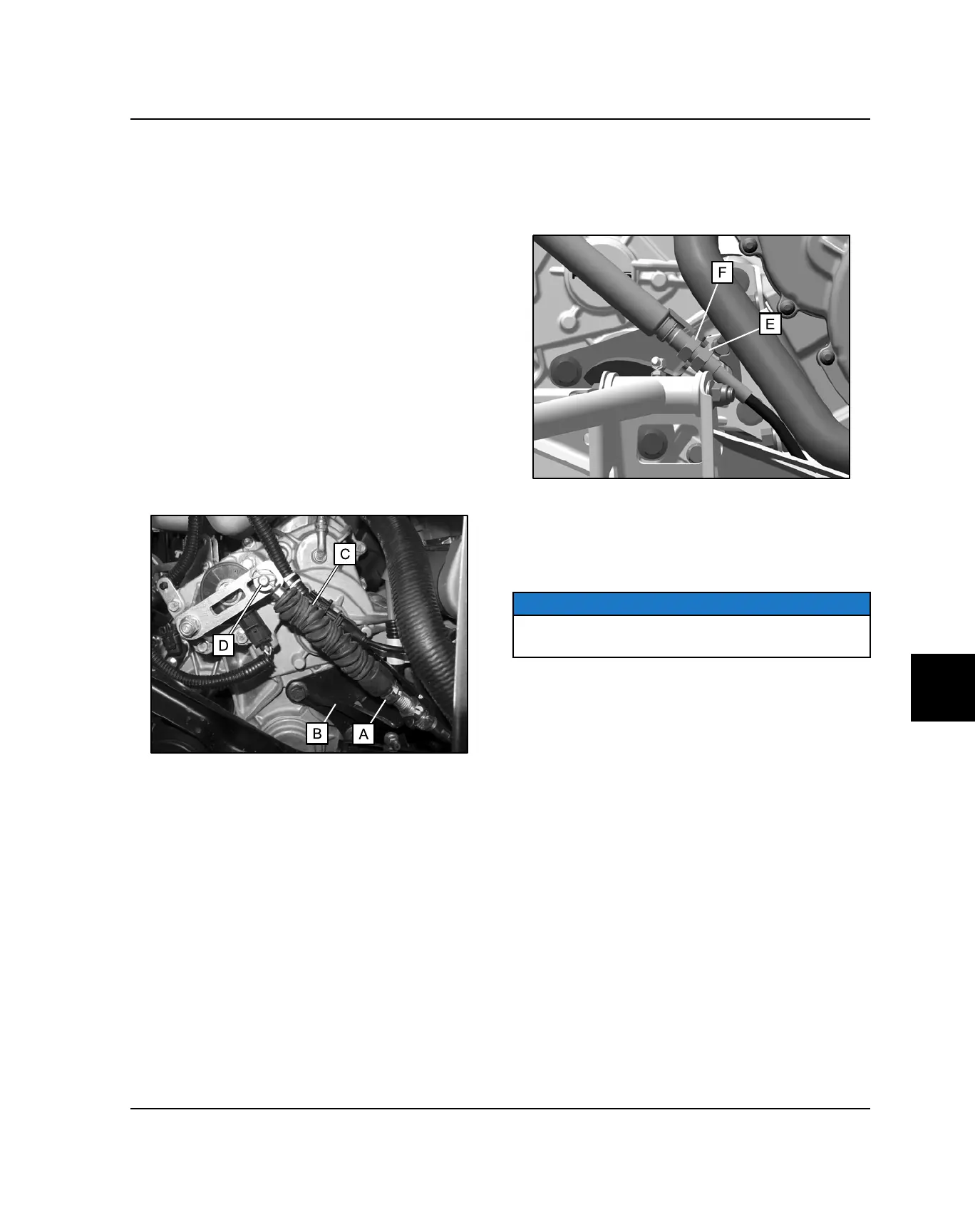

1. Locate the shift cable (A) attached to the mount
bracket (B) and transmission in the right rear wheel
well area.
2. Inspect shift cable (A), dust boot (C) and the clevis
pin and pivot bushings (D). Replace if worn or
damaged.
3. If adjustment is required, loosen the lower jam nut
(E) and pull the cable out of the mount bracket to
move the upper jam nut (F).
4. Adjust the shift cable so there is the same amount of
cable travel when shifting slightly past HIGH gear
and PARK.
5. Thread the upper or lower jam nut as required to
obtain proper cable adjustment.
NOTE
This procedure may require a few attempts to obtain
the proper adjustment.
6. Once the proper adjustment is obtained, place the
shift cable and upper jam nut into the mount. Tighten
the lower jam nut (E) against the mount.
7. Start engine and shift through all gears to ensure the
shift cable is properly adjusted. If transmission still
ratchets after cable adjustment, the transmission will
require service.
TRANSMISSION
