4.12
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.

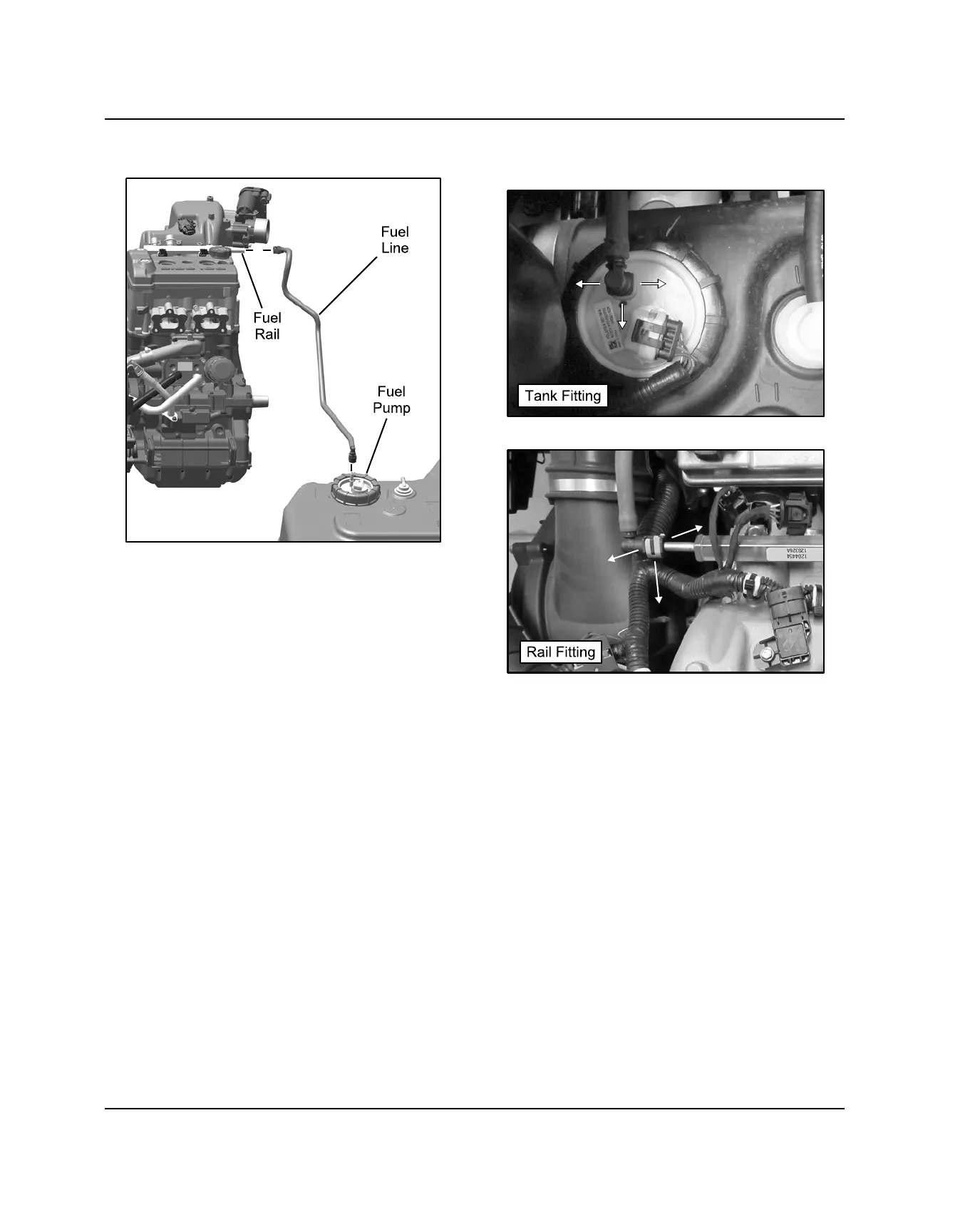

FUEL LINE REMOVAL / INSTALLATION
1. Place a shop towel around the fuel line to catch any
dripping fuel.
2. To remove either end of the fuel line, pull open tabs
while moving the connector out to release the line.
3. Pull the fuel line outward to remove.
4. To reinstall the line, verify the connections are clean
and free of debris.
5. Place the fuel line back over the fitting and slide the
connector locking mechanism back into place. Verify
the connector tabs snap back into place by pulling
out lightly on connector.
6. Be sure fuel line is routed and retained properly.
FUEL SYSTEM - GENERAL
