8
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
8.15

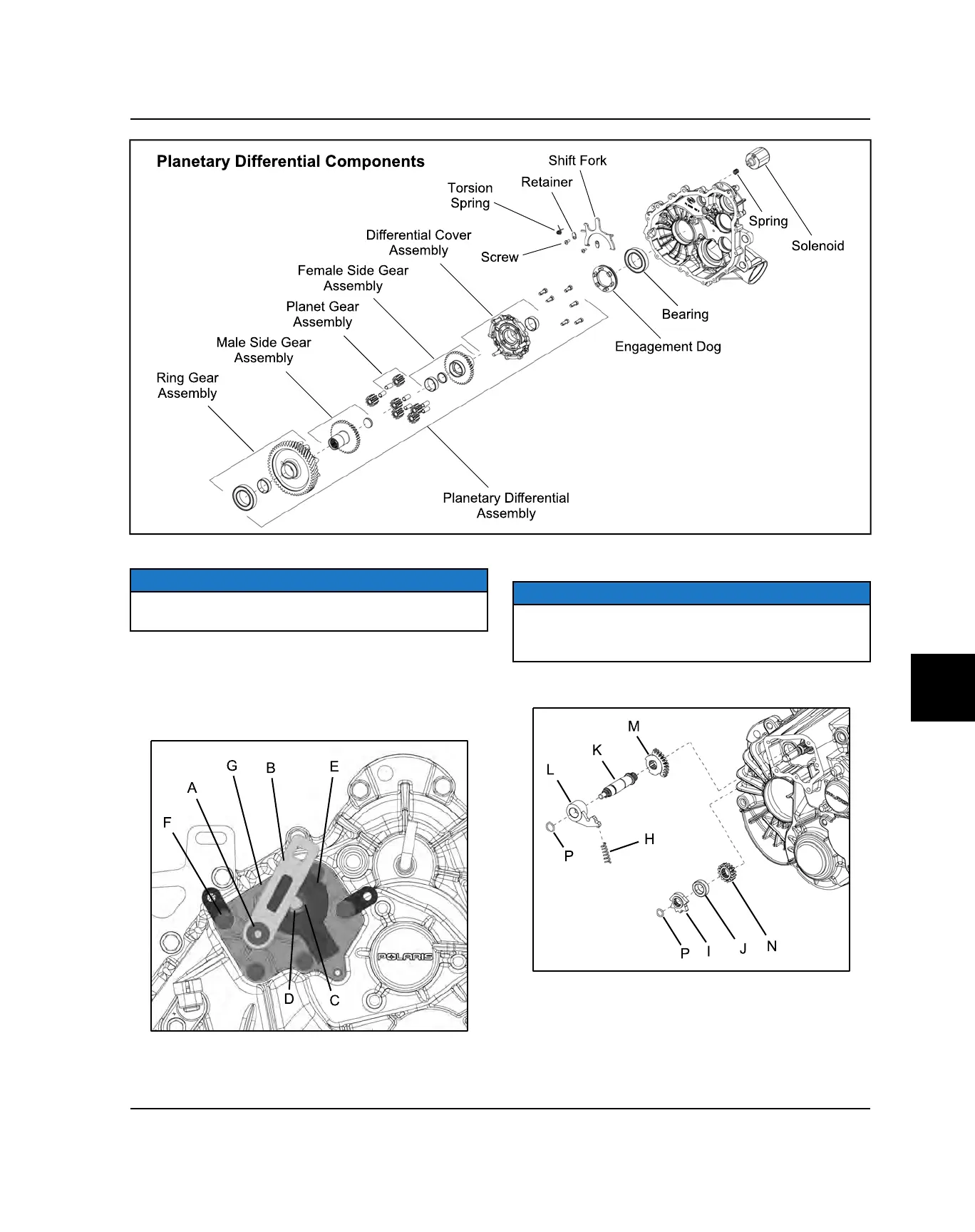

TRANSMISSION DISASSEMBLY
NOTE
Refer to the exploded view at the end of this chapter as
a reference.
1. Place transmission in High gear before disassembly.
2. Drain and properly dispose of the transmission
lubricant (see Chapter 2).
3. Remove the bellcrank nut (A) and bellcrank (B).
4. Remove E-clip (C) that retains spring washer (D), flat
washer (D) and gear switch (E). Remove the switch.
5. Remove the sector cover bolts (F) and remove the
sector cover (G).
NOTE
Removal can be aided by using your thumbs to press in
on the shafts while pulling out the cover with your
fingers.
6. Remove the compression spring (H).
7. Remove the detent star (I). Note how the detent star
fits onto the splined shaft with the raised edge facing
outward for reassembly.
8. Remove the spacer (J).
TRANSMISSION
