CPS REPLACEMENT

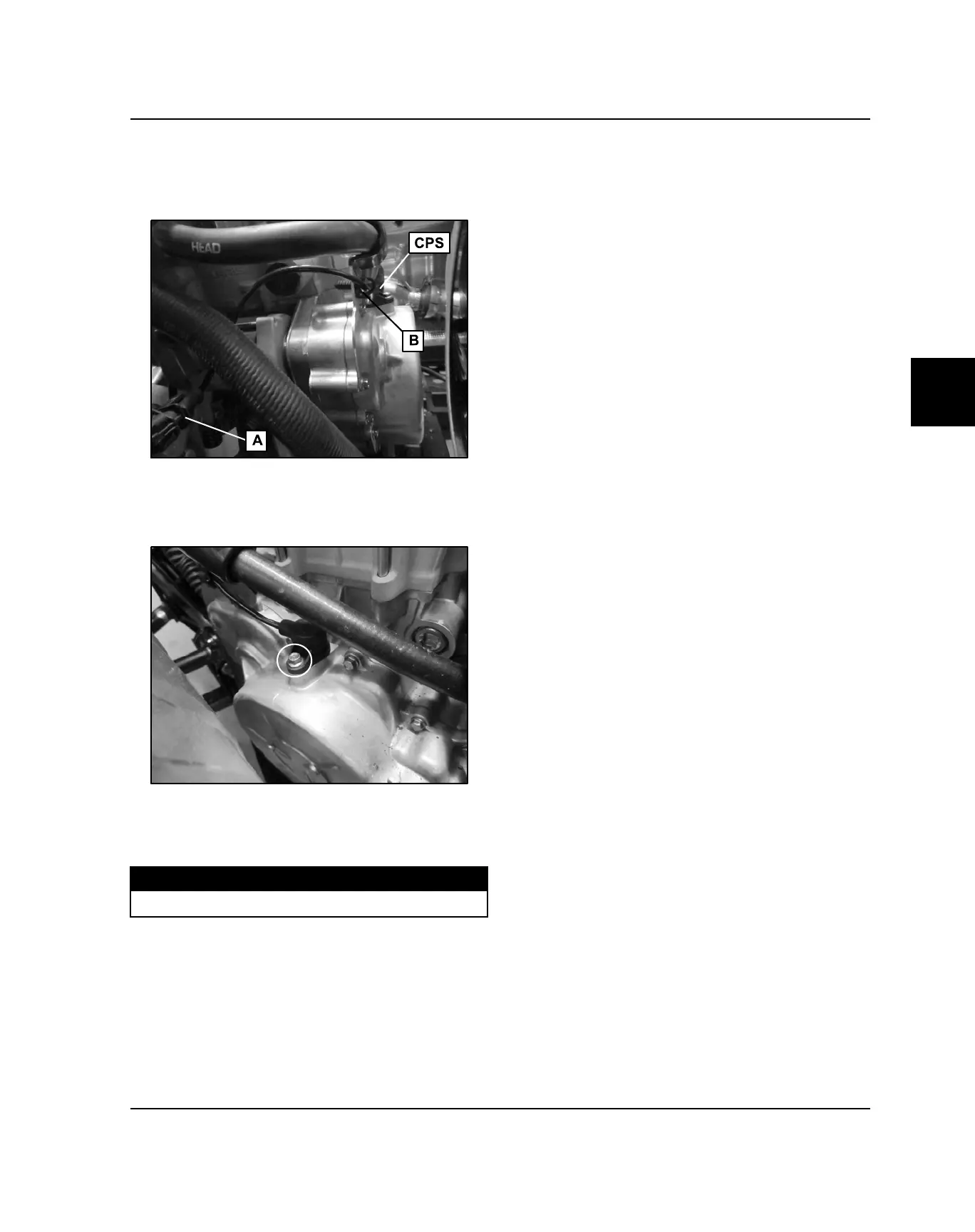

1. Lift the rear cargo box to raised position.
2. Disconnect the CPS harness connector (A).
3. Remove CPS wire lead from wire clip (B).
4. Remove CPS retaining bolt and remove the sensor
from the stator cover.
5. Install new sensor using a light coating of oil on the
O-ring to aid installation.
6. Torque CPS retaining bolt to specification.
TORQUE
CPS Retaining Bolt:106 in-lbs (12 Nm)
7. Route CPS wire lead through wire clip and reconnect
CPS harness connector.
