9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
10.25

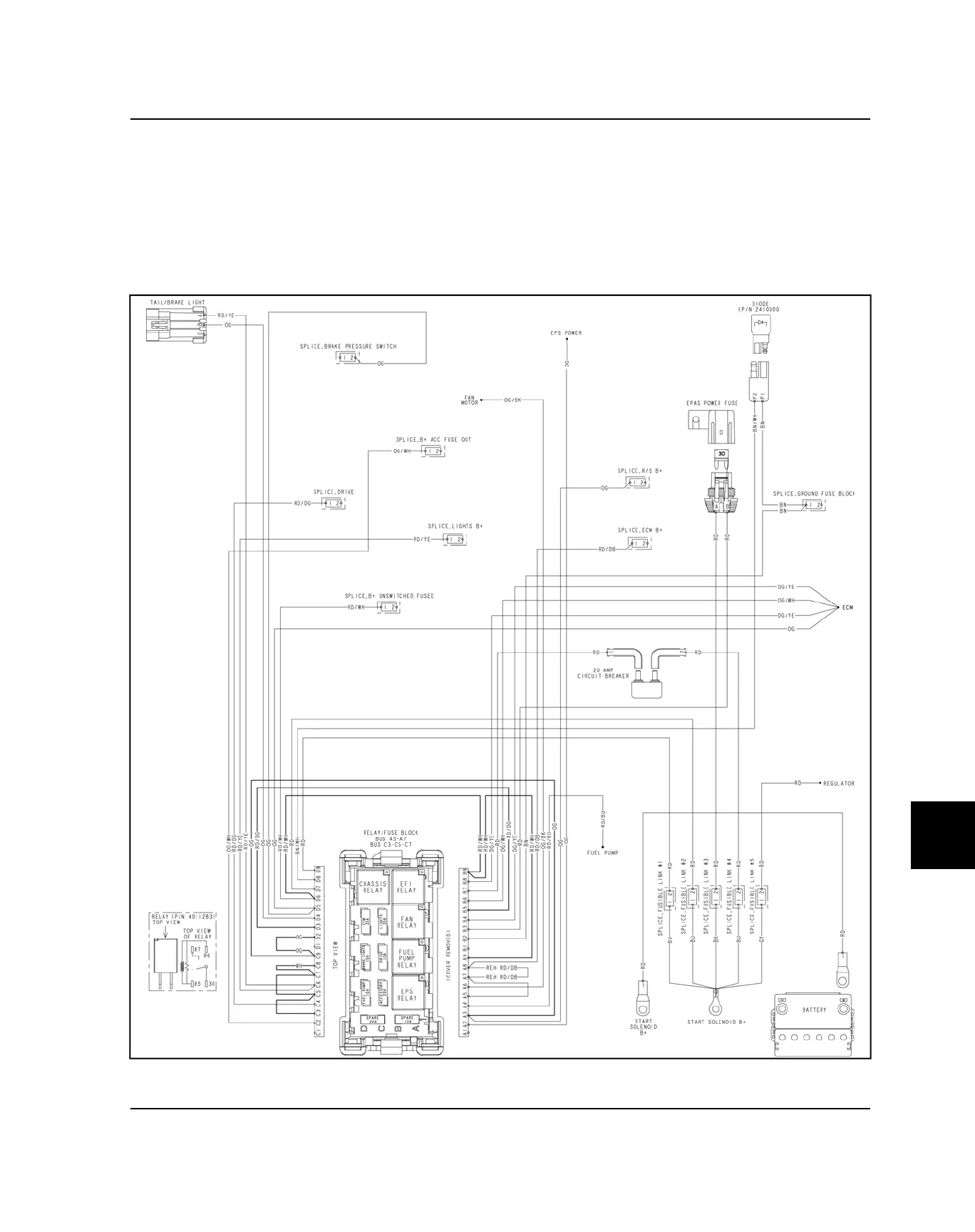

FUSE BOX: FUSES / RELAYS / CIRCUIT BREAKER
OVERVIEW / OPERATION
Located in the fuse box under the passenger seat, the fuses provide overload protection for wiring and components
such as the instrument cluster, ECU, EFI system, main harness, lights and accessories. The relays assist with
component operation like the cooling fan, fuel pump, EFI system, and drive system. A separate 20-amp circuit breaker,
located near the fuse/relay box, protects the fan motor circuit. NOTE: EPS models have a separate electrical
system which includes a 30-amp fuse and relay. Refer to “EPS System Breakout” for EPS electrical
component details.
