11—Input and Track Channel Tools
160 www.RolandUS.com Roland VS-2400CD Owner’s Manual
8. High Band EQ
The high band EQ operates on all frequencies above the selected
frequency. It has a:
•
frequency selector
—that sets the center frequency, from 1.00 kHz to 20.0 kHz.
•
gain control
—that raises or lowers the level of the selected frequency range. It can
be set anywhere from -15.0 dB to 15 dB.
The high EQ band is a shelving-type EQ that affects the level of all frequencies above
the selected frequency, as well as a narrow range of frequencies slightly beneath it. As
such, it requires no Q setting.
The FX Ins Screen
The FX Ins (“Effect Insert”) screen is discussed in Chapter 16—see Page 211.
The Surrnd Screen
The Surrnd (“Surround”) screen is described in Chapter 24, on Page 312.

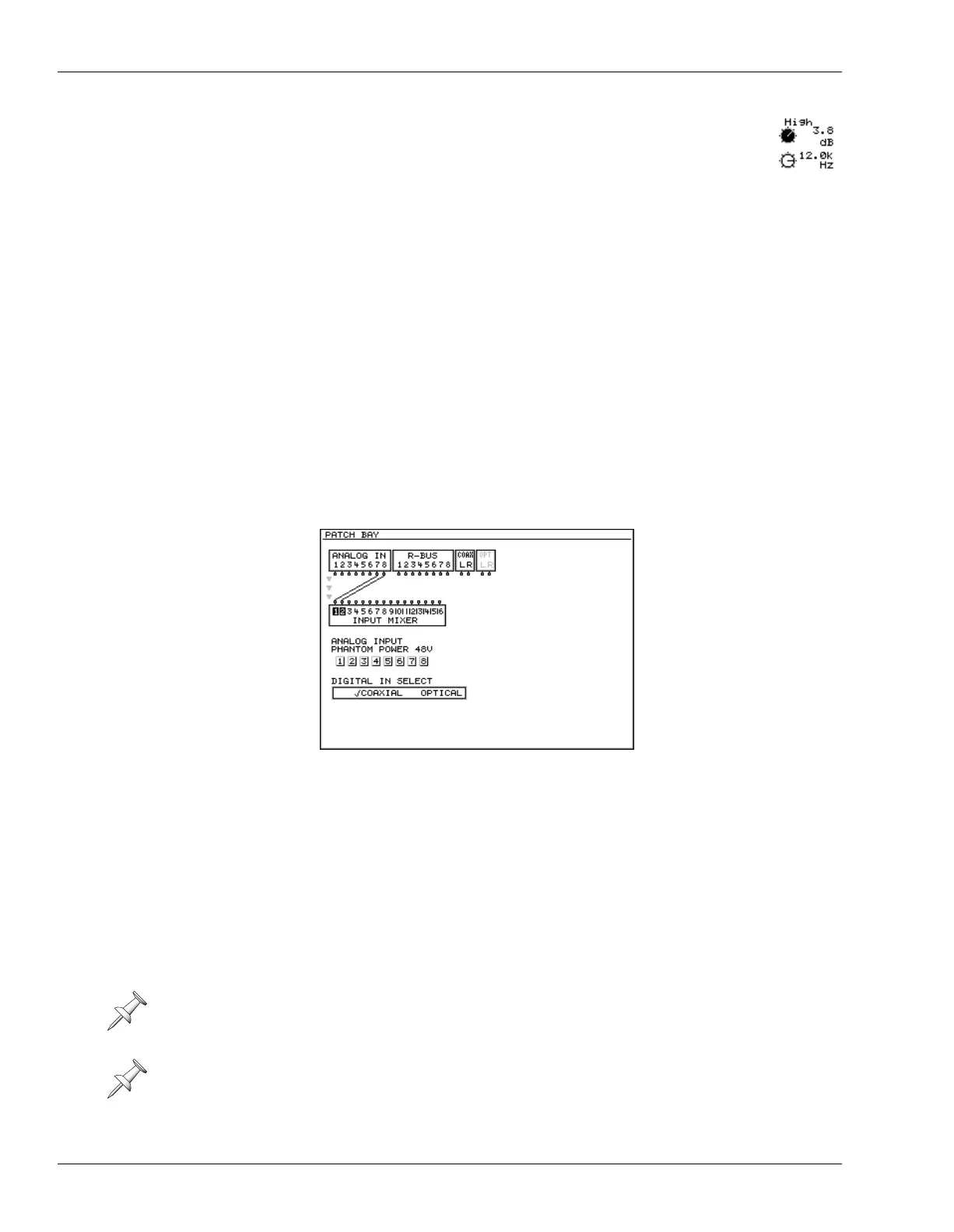

The CH EDIT P.BAY Screen
You can assign an input signal to the current input channel on its CH EDIT P.BAY
screen. This screen operates similarly to the EZ ROUTING P.BAY screen (Page 132),
though without the virtual “wires.” To learn the basics of routing input jacks and digital
connectors to input channels in the VS-2400CD, see “Digital Input Signals” on Page 127.
To route an input jack or connector to the current input channel on this screen:
• use the cursor buttons to select the desired input pair (Page 131) and turn the TIME
VALUE dial clockwise—each odd or even input highlights to show that it’s routed
to the channel. To disconnect the input, turn the Time/Value dial counter-clockwise.
• click the desired input pair with your mouse. The corresponding odd or even input
highlights to show it’s routed to the channel. To disconnect the input, click it again.
The P.BAY screen makes available only those digital inputs that are currently active
according to the settings of the DIGITAL IN SELECT parameter. This parameter are
explained in “Turning On the Coaxial or Optical Digital Inputs” on Page 127.
Only one input at a time can be routed to an input channel. When you route a new
input to the channel, the previous one is automatically disconnected.
VS2400OMUS.book 160 ページ ２００６年２月２８日 火曜日 午前１１時１２分
