4—Setting Up and Basic Operations
Roland VS-2400CD Owner’s Manual www.RolandUS.com 73
3. Enter the desired value by pressing the appropriate keys on the keypad.
• When you’ve finished entering the number, press ENTER/YES.
If You’re Using DS-Series Monitors
If you’re using Roland DS-90A or DS-50A Digital Reference Monitors, you’ll need to
route the MONITOR bus to the digital output to which you’re connecting the monitors.
(In the factory demo songs, this has already been taken care of.) When you create a new
project, however, the MASTER stereo mix, not the stereo MONITOR bus, is routed to
the OPTICAL and COAXIAL OUT connectors.)
Setting Up for Roland’s DS-Series Digital Monitors
1. Press EZ ROUTING•PATCHBAY.

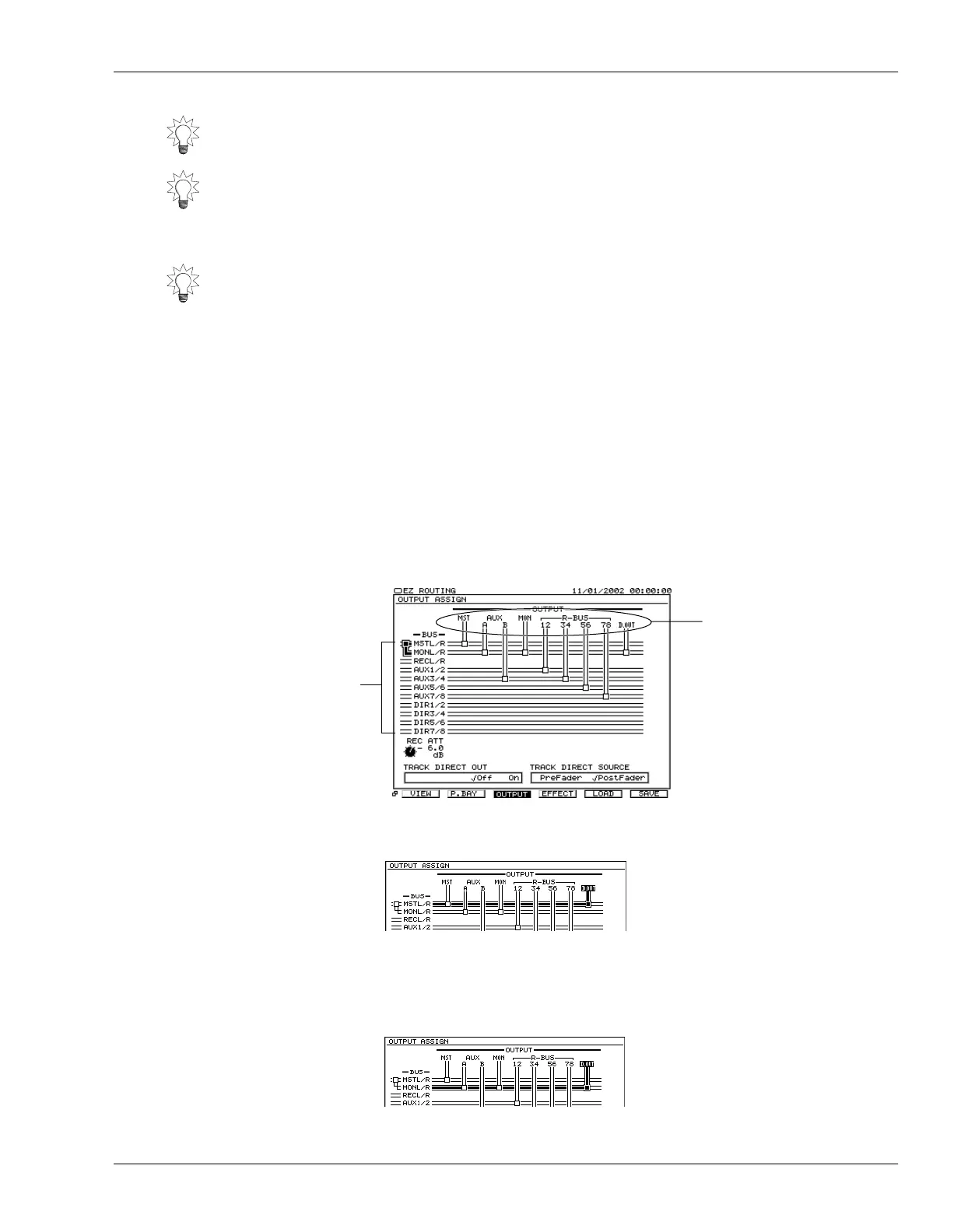

2. Press F3 (OUTPUT). The OUTPUT ASSIGN screen appears. On this screen, you
can change the signal routed to each output jack and connector.
3. Press
until the digital output you want to connect to your monitors is selected in
the top row—in this screenshot, we’ve chosen the currently active digital output:
The thick black line—think of it as a virtual cable—shows that the MASTER mix
(MASTL/R) is routed to the currently active digital output (D.OUT).
4. Turn the Time/Value dial clockwise so that “cable” connects MONL/R to the
D.OUT connector—”MONL/R” stands for “MONITOR Left/Right.”
If you’re entering a long string of numbers, select the right-most digit on the display—
each number you enter from the keypad pushes the displayed numbers to the left.
You can set the VS-2400CD so that numbers are entered from the keypad right-to-left
(the default method) or left-to-right. See “NUMERICS TYPE” on Page 358.
To enter “-” using the keypad, press “0” twice.
Along the left
edge of the
screen, you see all
of the
VS-2400CD’s
busses and the
Direct paths
(Page 57).
All VS-2400CD
output jacks and
connectors.
Each bus runs from left
to right across the
display. When you
select an output and
turn the Time/Value
dial, a connection box
moves down the
screen to reach the
desired bus.
You can activate either the
coaxial or optical digital
connectors, as described on
Page 127.
If you prefer, you can drag the
output’s connection box down
to MONL/R using your mouse.
