29—Using a VGA Monitor: Overview
Roland VS-2400CD Owner’s Manual www.RolandUS.com 385
Bottom Pane
The contents of the Info Display’s bottom pane changes from screen to screen.
Controlling What’s On the Info Display
As you navigate the VS-2400CD’s LCD display, the Info Display automatically switches
between various screens. You can manually switch to a few key screens, and you can
lock the display so that it doesn’t change as you move around on the VS-2400CD.
Selecting Info Displays Manually
You can access several key screens from the VS-2400CD’s Home screen.
1. Press HOME/DISPLAY.

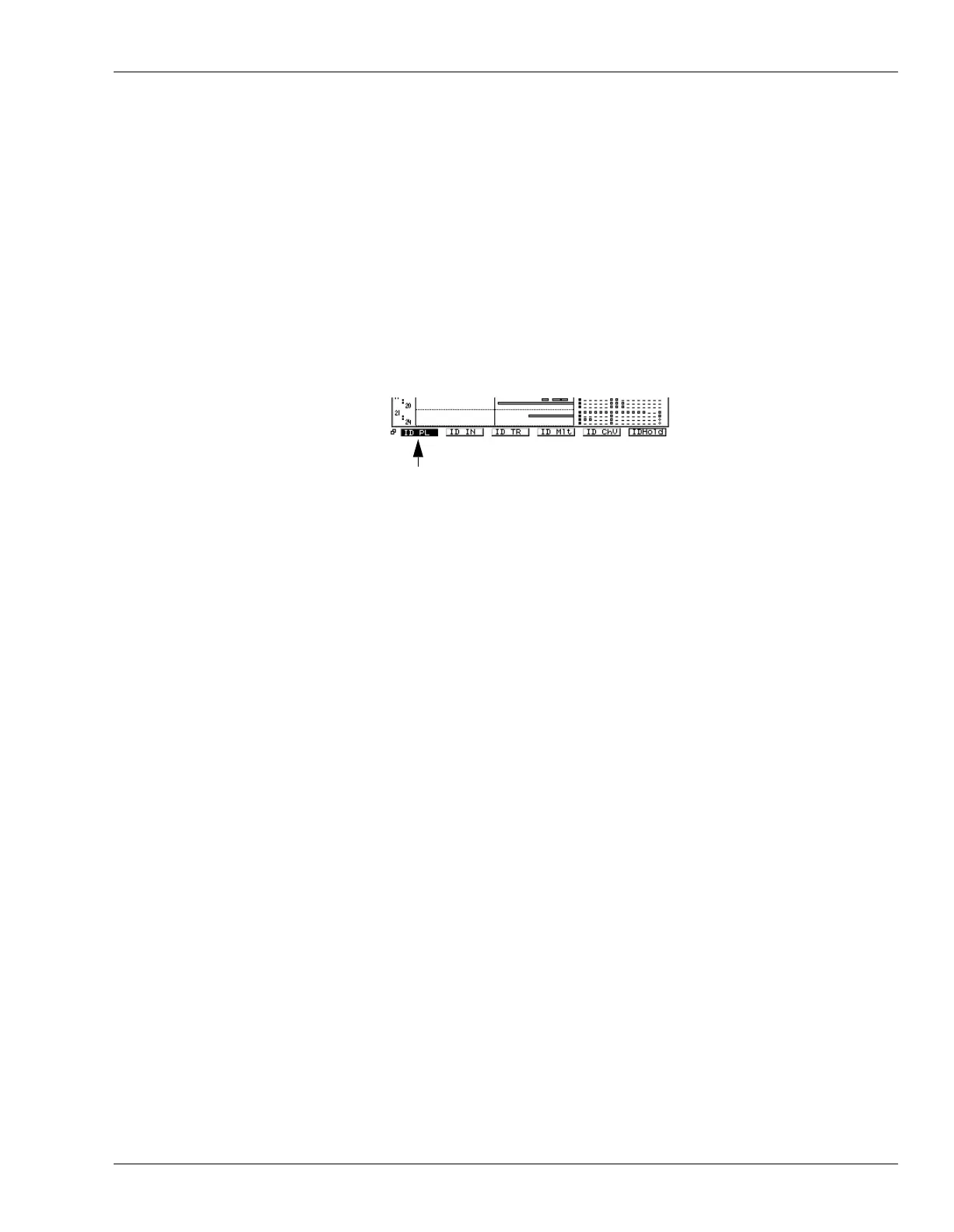

2. Press PAGE until “ID PL” appears above the F1 button.
3. You can press F1 through F5 to view the following screens:
•
ID PL (Info Display Playlist screen)
—shows the track playlist in the lower area on
the display.
•
ID IN (Info Display Input Channels)
—shows all 16 input channels in the lower
area on the display.
•
ID TR (Info Display Track Channels)—
shows all 24 track channels in the lower
area on the display.
•
ID Mlt (Info Display Multiple Parameters)
—shows a detailed view of the currently
selected group of 12 channel strips (Page 133).
•
ID ChV (Info Display Channel View)—
shows the CH EDIT parameters for the
currently selected input, track or FX return channel.
When the ID PL, ID IN or ID TR screens are in view, the meters strip is visible. You can
change what’s shown on the left side of the meters strip—the right side always shows
the MONITOR and MASTER output levels:
1. Press HOME/DISPLAY.
2. Press PAGE until INPUT appears above F1.
3. Press:
•
INPUT—
to meter the VS-2400CD’s analog and digital input jacks and
connectors.
•
IN Mix—
to meter input channel levels.
•
TR Mix—
to meter track channel levels.
•
AUXDIR—
to meter the AUX and DIR bus levels.
•
OUTPUT
—to meter the VS-2400CD’s output levels.
Locking the Info Display
You can lock the currently displayed Info Display screen so that it stays in view as you
move from screen to screen on the VS-2400CD itself.
1. Press HOME/DISPLAY.
2. Press PAGE until “IDHold” appears above the F6 button.
3. Press F6 (IDHold).
4. To unlock the display, repeat Steps 1-3.
