Flexible NC programming
1.14 Interrupt routine (ASUB)
Job planning
118 Programming Manual, 07/2010, 6FC5398-2BP40-0BA0
1.14.6 Fast retraction from the contour (SETINT LIFTFAST, ALF)
Function

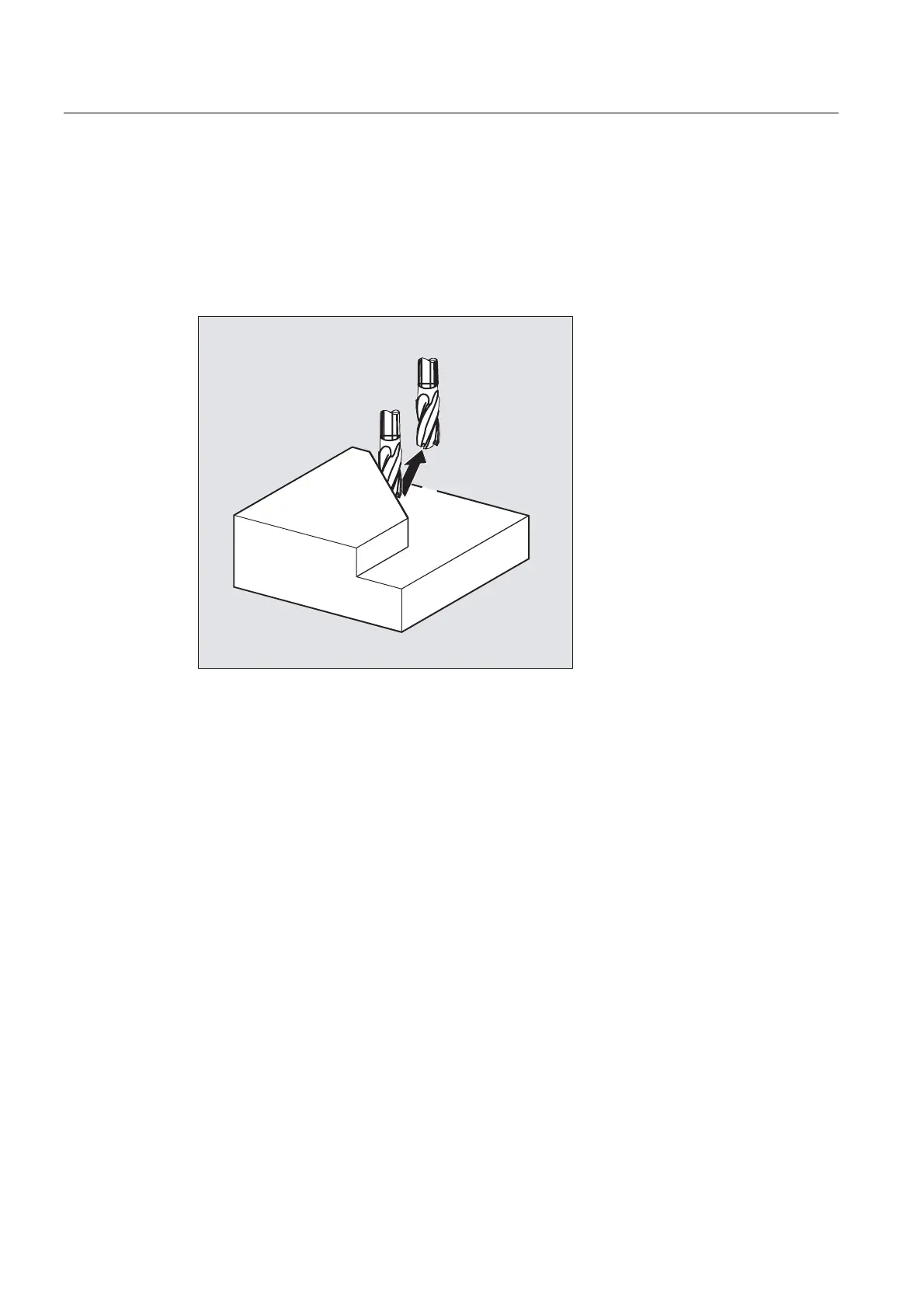

For a SETINT instruction with LIFTFAST, when the input is switched, the tool is moved away
from the workpiece contour using fast retraction.
The further sequence is then dependent on whether the
SETINT instruction includes an
interrupt routine in addition to
LIFTFAST:
With interrupt routine: After the fast retraction, the interrupt routine is executed.
Without interrupt routine: Machining is stopped after fast retraction and an alarm is
output.
Syntax
SETINT(<n>) PRIO=1 LIFTFAST
SETINT(<n>) PRIO=1 <NAME> LIFTFAST
