Protection zones
3
3.1 Definition of the protection zones (CPROTDEF, NPROTDEF)
Function
You can use protection zones to protect various elements on the machine, their components
and the workpiece against incorrect movements.

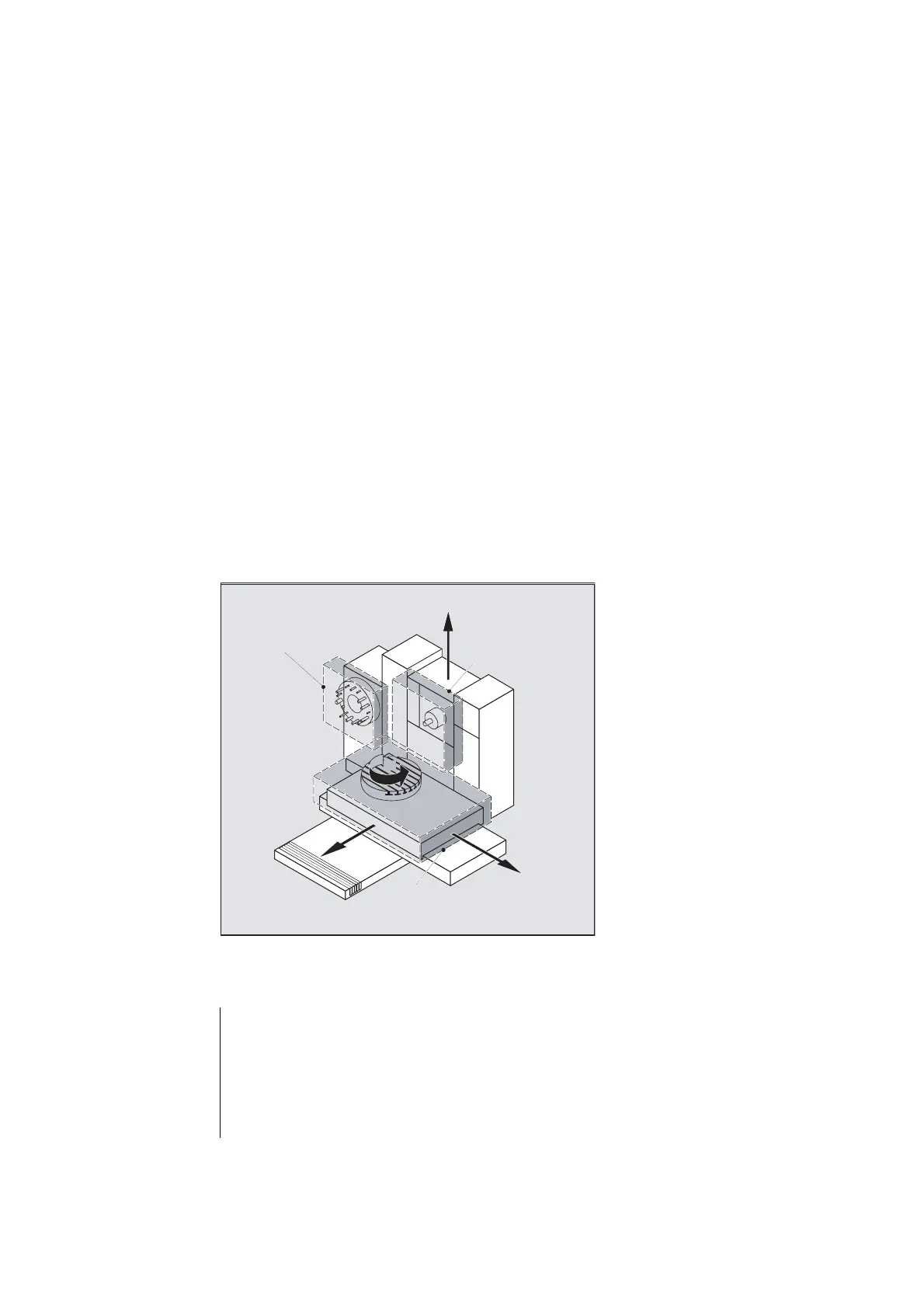

Tool-oriented protection zones:
For parts that belong to the tool (e.g. tool, toolholder)
Workpiece-oriented protection zones:
For parts that belong to the workpiece (e.g. parts of the workpiece, clamping table, clamping
shoe, spindle chuck, tailstock).
%
;
<
=
7RROUHODWHG
SURWHFWLRQ]RQH
7RROUHODWHG
SURWHFWLRQ]RQH
:RUNSLHFHUHODWHG
SURWHFWLRQ]RQH
Syntax
DEF INT NOT_USED
G17/G18/G19
CPROTDEF/NPROTDEF(<n>,<t>,<applim>,<applus>,<appminus>)
G0/G1/... X/Y/Z...
...
EXECUTE(NOT_USED)
