Tool offsets
7.3 Special handling of tool offsets
Job planning
398 Programming Manual, 07/2010, 6FC5398-2BP40-0BA0

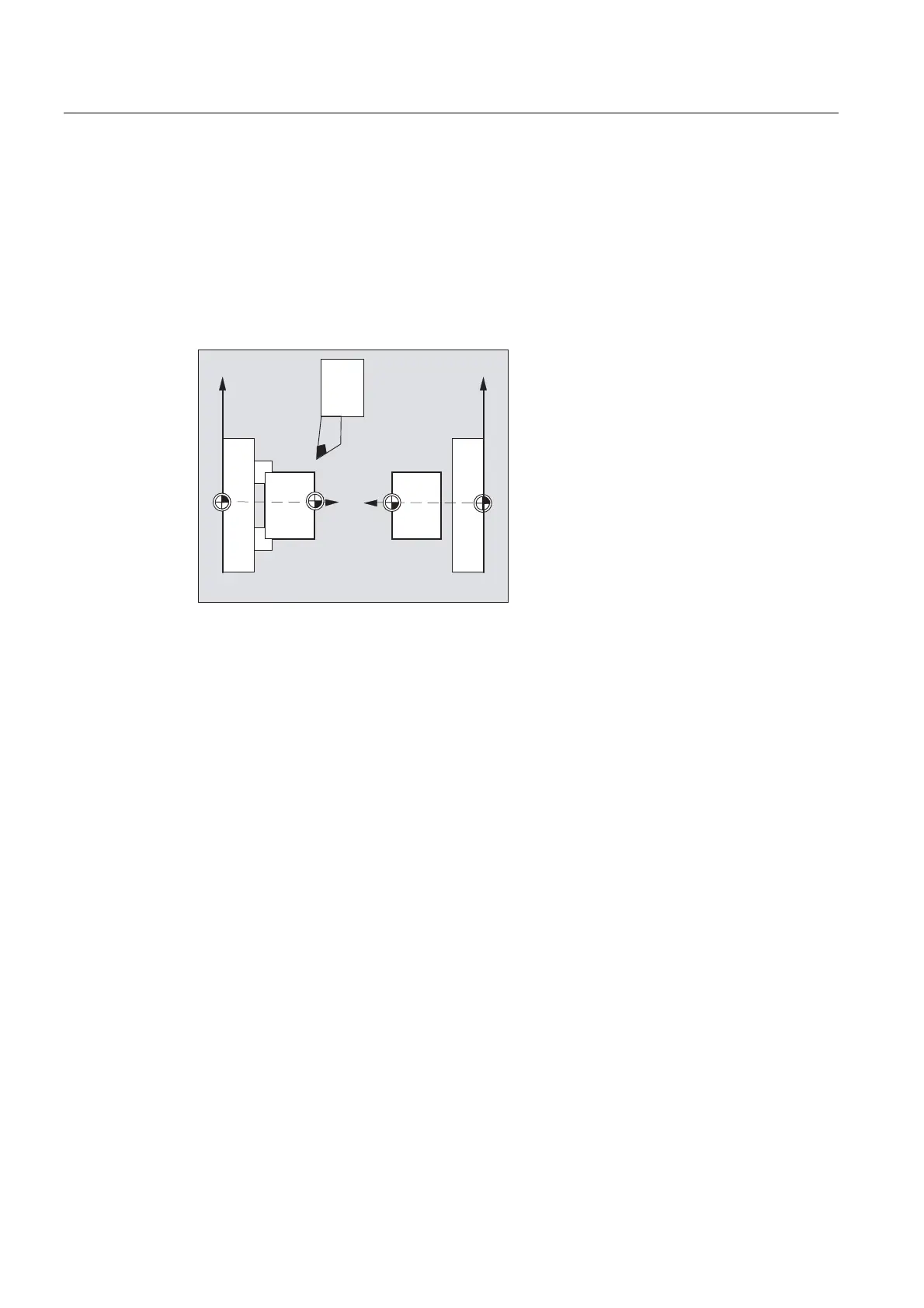

7.3.1 Mirroring of tool lengths
Function
When setting data SD42900 $SC_MIRROR_TOOL_LENGTH and
SD42910 $SC_MIRROR_TOOL_WEAR are not set to zero, then you can mirror the tool
length components and components of the basis dimensions with wear values and their
associated axes.
=
:
=
0
:


;
0
:&6
'ZLWK6/
;
:&6
'ZLWK6/
'
SD42900 $SC_MIRROR_TOOL_LENGTH
Setting data not equal to zero:
The tool length components ($TC_DP3, $TC_DP4 and $TC_DP5) and the components of
the basis dimensions ($TC_DP21, $TC_DP22 and $TC_DP23) are mirrored against their
associated axes, also mirrored – by inverting the sign.
The wear values are not mirrored. If these are also be be mirrored, then setting data
SD42910 $SC_MIRROR_TOOL_WEAR must be set.
SD42910 $SC_MIRROR_TOOL_WEAR
Setting data not equal to zero:
The wear values of the tool length components - whose associated axes are mirrored - are
also mirrored by inverting the sign.
